- Tekna TKE 944-7 Vertical Machining center

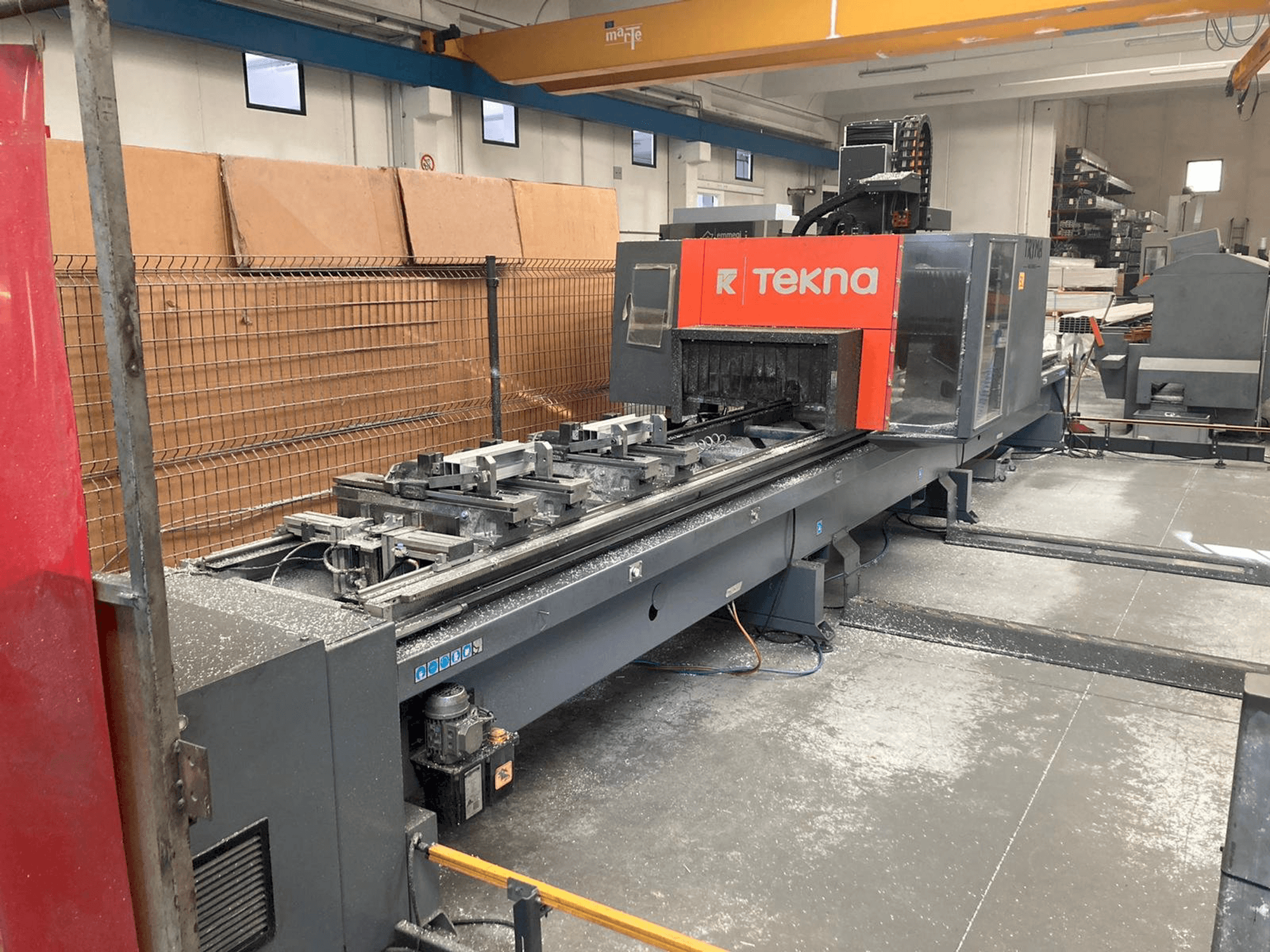

This Tekna TKE 944-7 Vertical Machining center was made in Italy in the year 2017. This 4-axis machining centre is designed for drilling, milling and threading at any angle from -90° to +90° on bars or pieces in aluminium, PVC, light alloys in general and steel. The 8.5 kW electrospindle with ISO 30 tool connection is able to perform even heavy-duty machining with excellent, rapid and accurate results. It works with a spindle speed up to 24000 rpm.
Overview
- brand: Tekna
- year: 2017
- MODEL: TKE 944-7
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Tekna TKE 944-7
Movement
- B-axis Max: 90°
- B-axis Min: -90°
- Number of Axes: 4
- X-axis Travel: 7000 mm
- Y-axis Travel: 1070 mm
- Z-axis Travel: 550 mm
Technical Specification
- Spindle Power: 8.5 kW
- Spindle Speed: 24000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Maximum torque: 13,5nm
- Electronic touch probe system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
