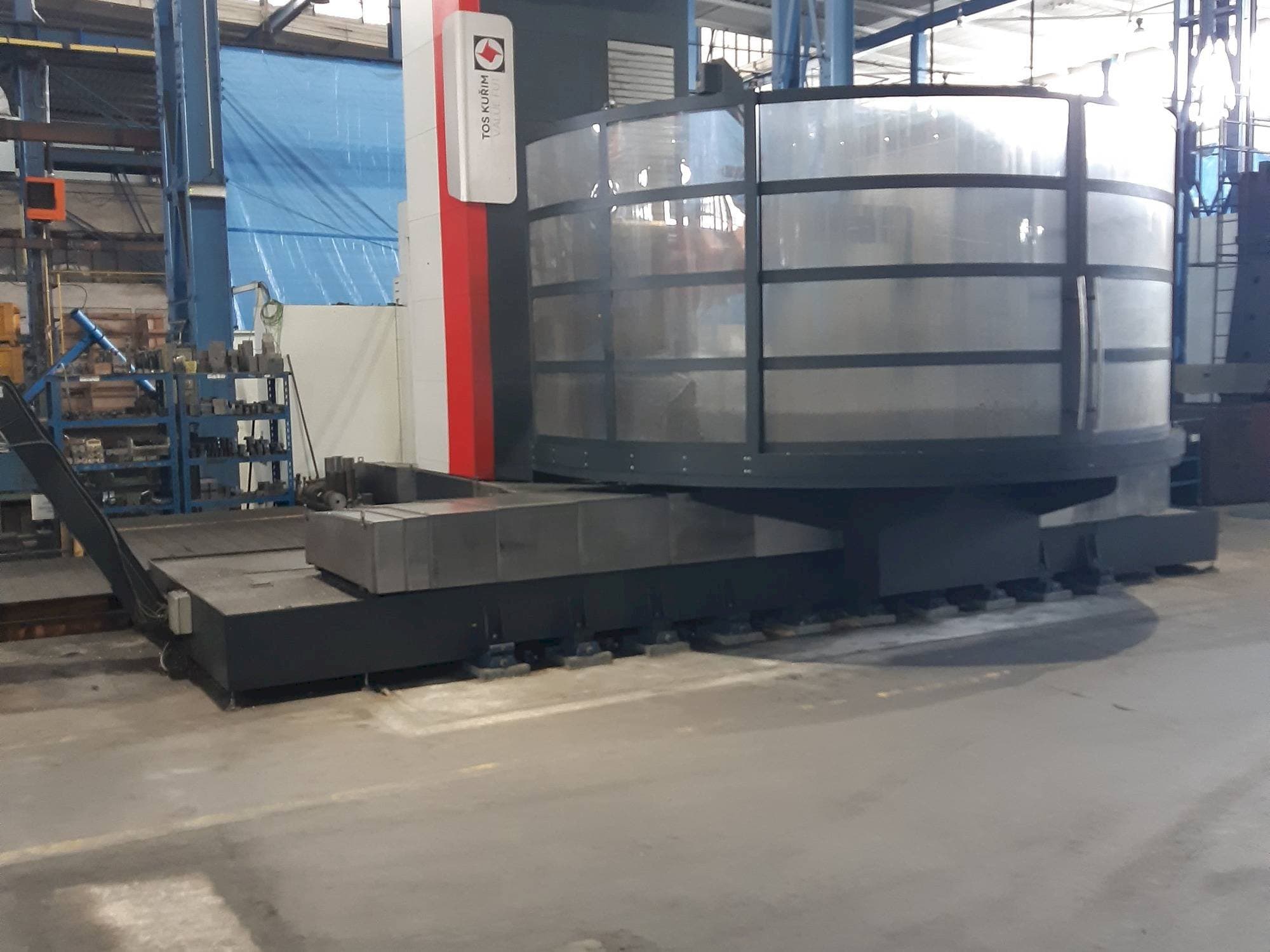

TOS Kurim FUT 150 Milling Machine

This TOS Kurim FUT 150 Milling Machine was manufactured in 2016 in the Czech Republic. This 5 axis machine operates through a Siemens S840 D control unit. It has a spindle speed up to 6000 rpm. It has a table of 1800 x 2200 mm. The machine is in a very good working conditions.

Overview

brand: TOS Kurim
year: 2016
MODEL: FUT 150
production hours: 0
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - TOS Kurim FUT 150

General Data

Machine weight: 29500 kg

Control Unit

Model: S840 D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 3000 mm
X-AXIS Working Feed: 30.000 mm/min
Y-AXIS Movement: 2000 mm
Y-AXIS Working Feed: 30.000 mm/min
Z-AXIS Movement: 1500 mm
Z-AXIS Working Feed: 30.000 mm/min

Workpiece

Workpiece weight: 20000 kg

Table

Outer length: 1800 mm
Outer width: 2200 mm

Additional Information

Additional equipment

Straight head VA1 6000 rpm, 1500Nm, ISO50 AD
Straight head VA2 6000 rpm, 1000Nm, ISO50 AD
2-AXIS HEAD VK 6000 RPM, 1000NM, ISO50 AD, TILT RANGE +90/-120 DEG.

Machine Benefits

Qualitative Machine Benefits

Very good conditions

Technical Machine Benefits

Automatic head exchange - pick-up for 3 heads
Main motor power 37 kw
Cooling through spindle 20 bar
Outer cooling 6 bar
Chip conveyor
Hand wheel ht2
C axis +/-180 degrees, indexation 1 degree

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
