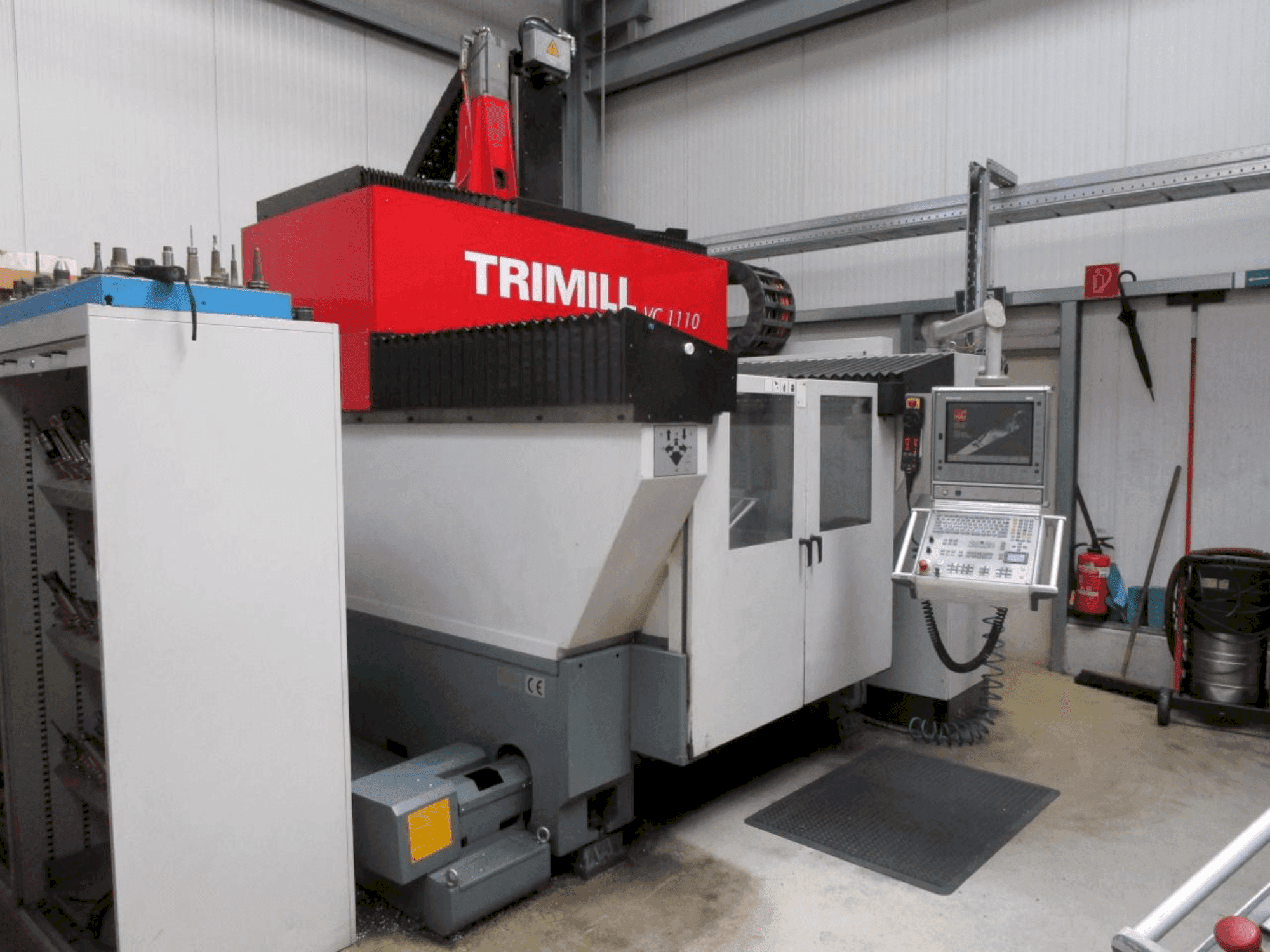

This 3-axis TRIMILL VC1110 milling machine was manufactured in 2012. It features a robust Heidenhain 530 HSCI control, with travel paths of 1100mm on the X-axis, 1000mm on the Y-axis, and 700mm on the Z-axis. The machine supports a clamping surface of 1350 x 1300 mm, can handle a maximum load of 8000kg, and offers a speed range of 30-14,000 rpm. A great opportunity to buy this TRIMILL VC1110 milling machine. Contact us for further details regarding this milling machine.
Overview
- brand: TRIMILL
- year: 2012
- MODEL: VC1110
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: HEIDENHAIN
Technical Information - TRIMILL VC1110
General Data
- Machine weight: 15000 kg
Control Unit
- Model: 530 HSCI
- Brand: HEIDENHAIN
Main drive
- Spindle speed range: 30 - 14000 rpm 1/MIN
- Tool taper: HSK A80A
- Number of axis: 3
Movement
- X-AXIS Movement: 1100mm
- Y-AXIS Movement: 1000mm
- Z-AXIS Movement: 700mm
Additional Equipment
- - Tool magazine with 10 compartments
- - Air through spindle
Additional Information
- Technical Machine Benefits:
- - High spindle speed, rapid traverse rate, large clamping surface.
- - Feed rates: working feed 20 m/min, rapid traverse 30 m/min
- - Nominal speed in xyz: 2000 rpm
- - Motor nominal speed: 1470 rpm
- - Max. Torque: 170 nm
- - Max. Workpiece dimensions with max. Tool length of 300mm: 1100 x 1000 x 500 mm
- - Number of t-slots x width: 10x18mm
- Qualitative Machine Benefits:
- - High precision with excellent position accuracy, supports heavy and large workpieces.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
