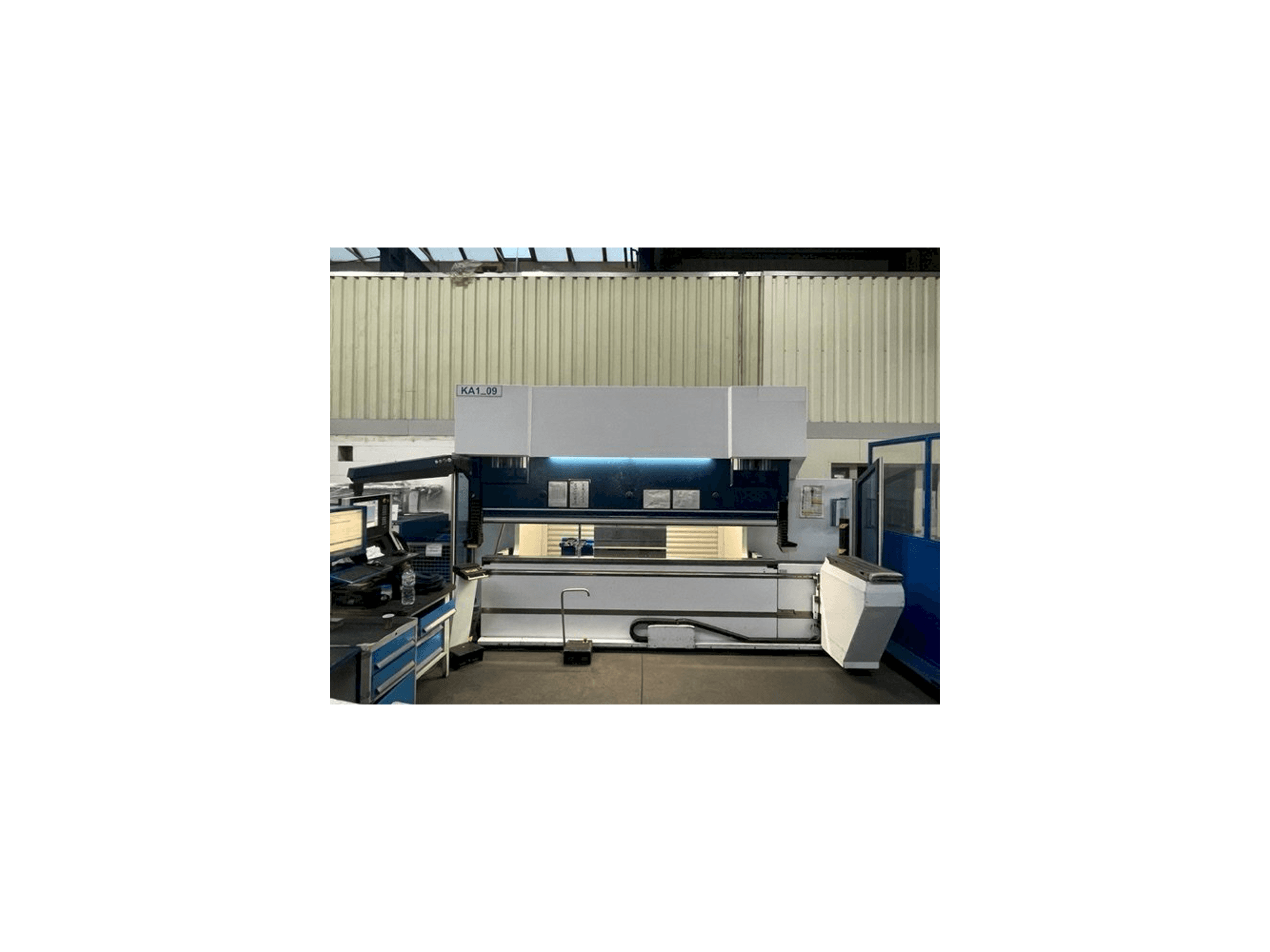

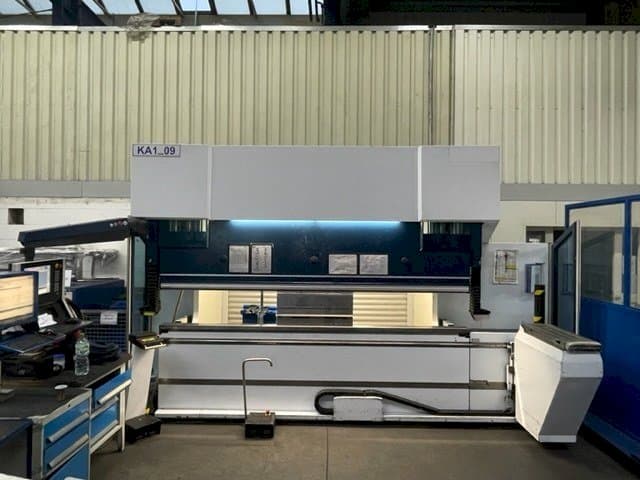

Front view of Trumpf TruBend 5130 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruBend 5130

Photo Gallery

TRUMPF - TruBend 5130DE-BEN-TRU-2007-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf TruBend 5130 Bending machine

This Trumpf TruBend 5130 Bending machine was manufactured in the year 2007 in Austria and has 103712 production hours, of which 76454 are cutting hours. It is equipped with a TASC 6000 control unit. The machine has a pressing force of 1300 kN and a bending length of 3230 mm.

Overview

brand: TRUMPF
year: 2007
MODEL: TruBend 5130
production hours: 103712
application type: Bending
Location: Germany
machine type: Press Brake
availability: Sold

Technical Information - TRUMPF TruBend 5130

General Data

Measurements width: 4847 mm
Measurements depth: 3150 mm
Measurements height: 2837 mm
Machine weight: 10900 kg

Main drive

Pressing force: 1300 kN
Bending length: 3230 mm

Media

Main electronic connection: 400 V / 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Installation height: 385 mm
- - Free stand passage: 2690 mm
- - Stable machine frame as welded construction in all-steel design
- - Pressure beam stress-relief annealed
- - 4 cylinder top drive
- - Backgauge with 6 axes
- - Hydraulic upper and lower tool clamping (wila pick-up system)
- - Cnc crowning
- - Cnc lower tool shift
- - Bend guard
Qualitative Machine Benefits:
- - Preparation for acb
- - Work area lighting rear and front
- - Cnc control with touch screen
- - Magnification stroke +230mm
- - Heavy duty support bracket
- - Bending aid first arm
- - Table extension
- - Table widening
- - Parking position long (900mm)

Extra information

- no tools included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
