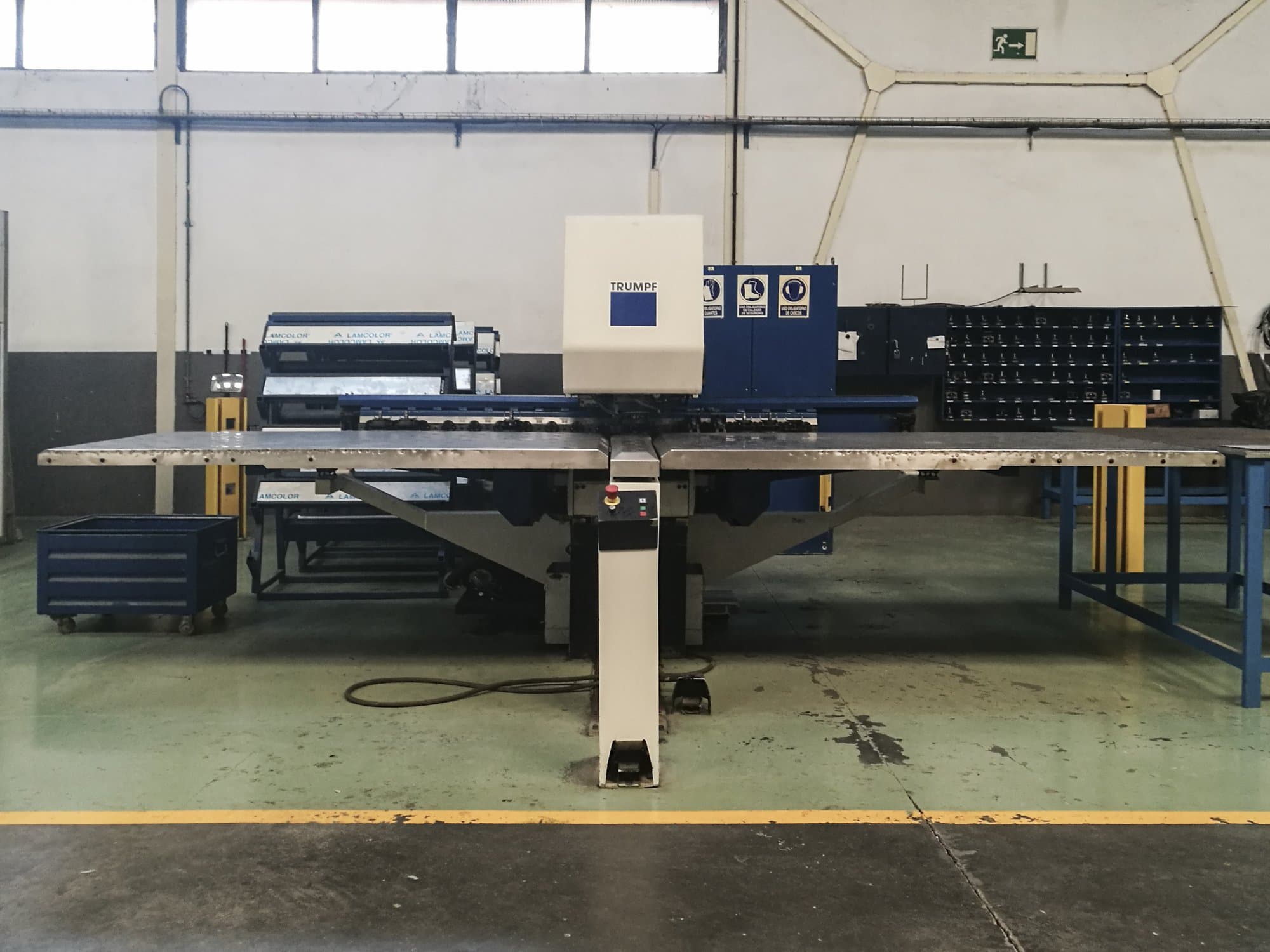

Front view of Trumpf Trumatic 200 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 200

Photo Gallery

TRUMPF - Trumatic 200ES-PUN-TRU-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf Trumatic 200 Turret Punching Machine

This Trumpf Trumatic 200 Turret Punching Machine was manufactured in the year 1999 in Germany and has a working record of 38551 production hours. Equipped with a Bosch Trumagraph CC220 Control unit, this machine stands out due to its versatility and agility and comes with a selection of additional tools.

Overview

brand: TRUMPF
year: 1999
MODEL: Trumatic 200
production hours: 38551
application type: Punching
Location: Spain
machine type: CNC Punch Press
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 200

General Data

Measurements width: 2440 mm
Measurements depth: 2670 mm
Measurements height: 2080 mm
Machine weight: 8000 kg

Control Unit

Model: Trumagraph CC220
Brand: BOSCH

Main drive

Punching force: 165 kN
Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 2070 mm
Y-AXIS Movement: 1280 mm

Workpiece

Workpiece weight: 150 kg

Table

Max punching diameter: 76.2 mm

Tools

Number of stations: 15+2

Media

Power consumption: 14 kVA
Air pressure: 6 bar

Additional Information

Additional equipment

Tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
