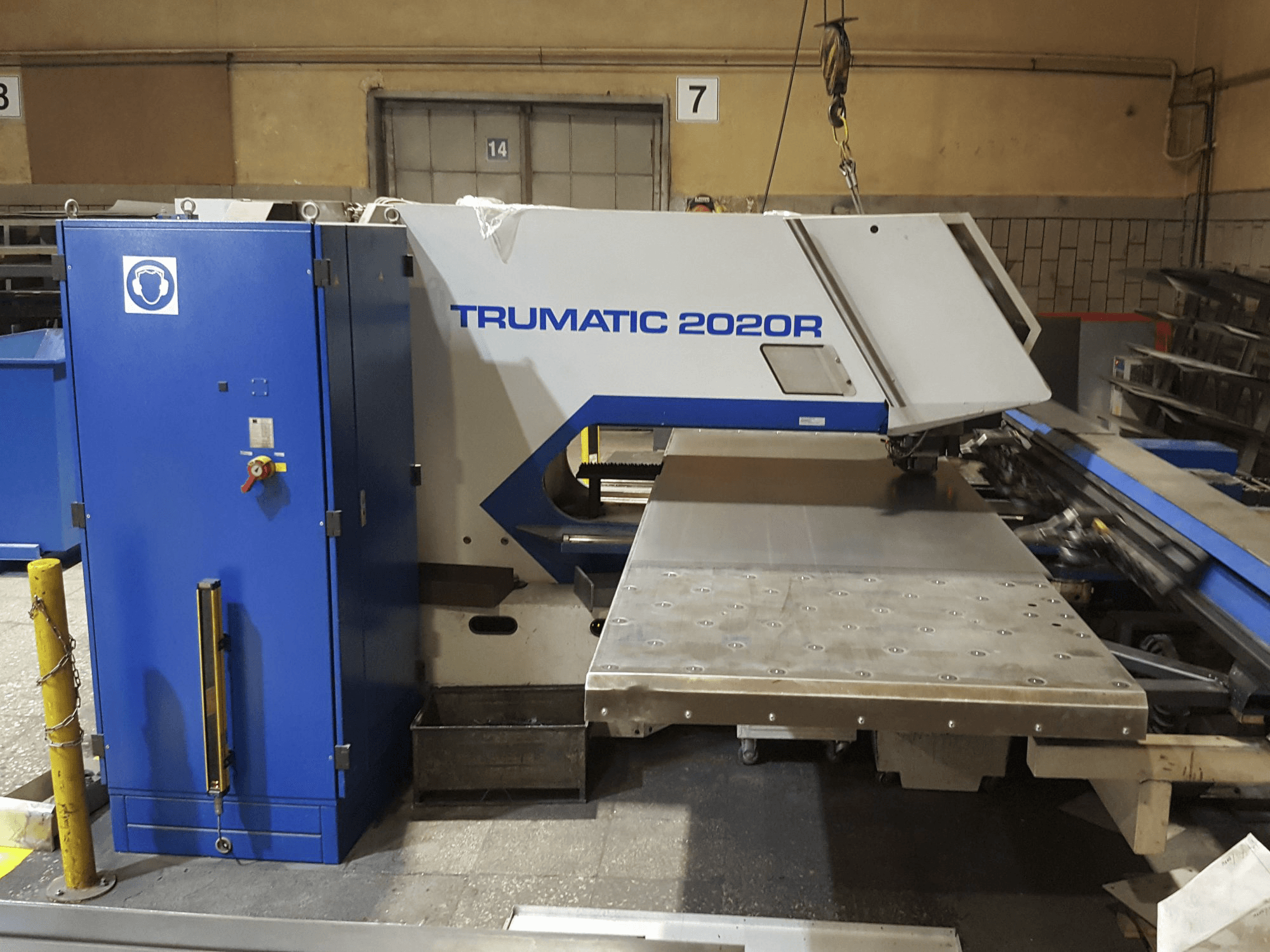

Front view of Trumpf Trumatic 2020R Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 2020R

Photo Gallery

TRUMPF - Trumatic 2020RLT-PUN-TRU-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 2020R Laser Punch Combination Machine

This Trumpf Trumatic 2020R Laser Punch Combination Machine was manufactured in Germany in 2003 and has a production history of 36568 working hours. Equipped with a Trumpf Control unit this machine has mainly worked with steel sheets with up to 6.4 mm of thickness.

Overview

brand: TRUMPF
year: 2003
MODEL: Trumatic 2020R
production hours: 36568
application type: Punching
Location: Lithuania
machine type: CNC Punch Press
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic 2020R

General Data

Measurements width: 6448 mm
Measurements depth: 7440 mm
Measurements height: 2600 mm
Machine weight: 15000 kg

Control Unit

Model: Bosch Typ 3
Brand: TRUMPF

Main drive

Punching force: 180 kN
Maximum sheet thickness: 6.4 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1250 mm
Workpiece z: 130 mm

Max Material thickness

Steel: 6.4 mm

Media

Main electronic connection: 35 A / 3 P
Power consumption: 18 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
