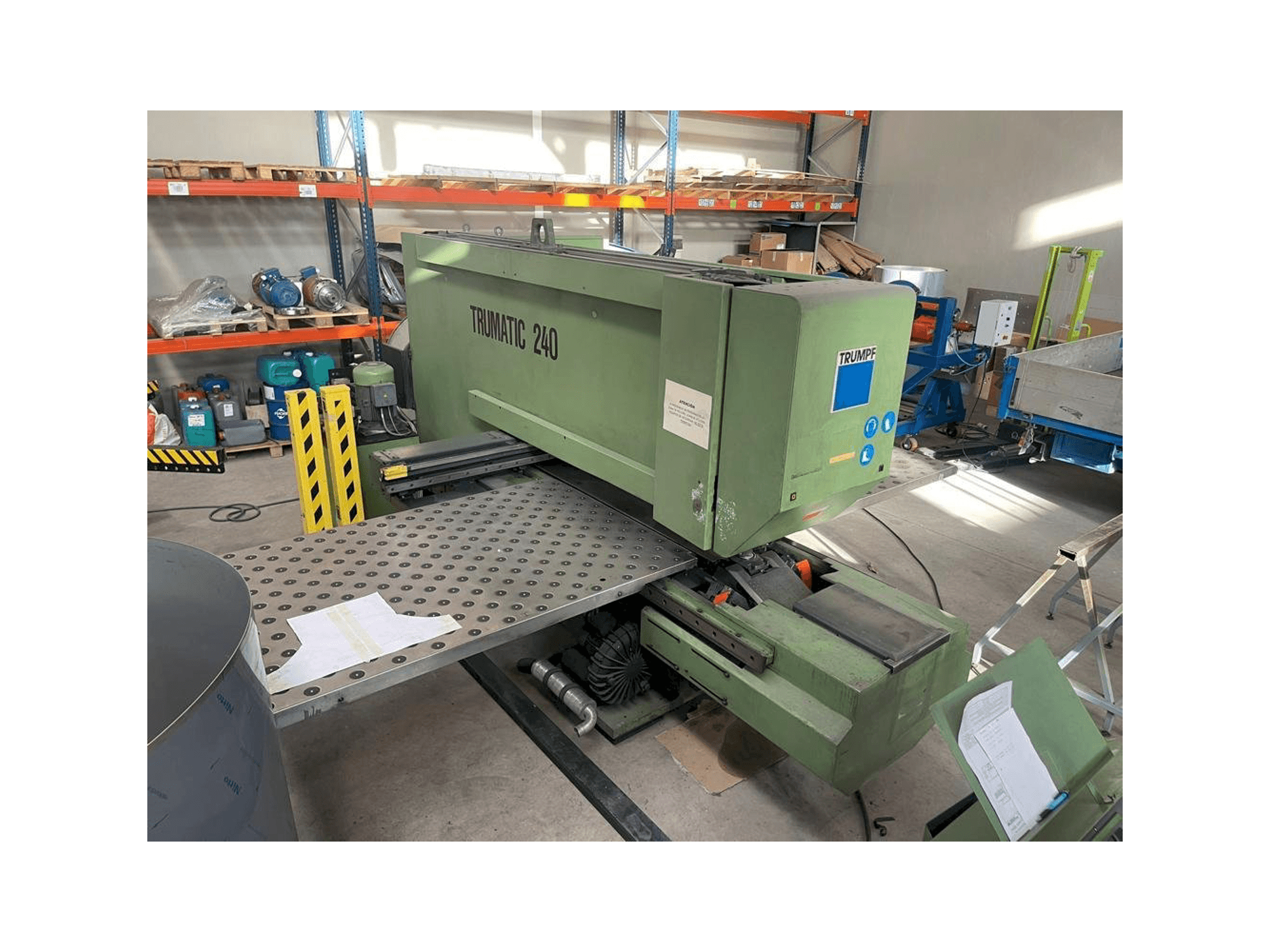

Front view of Trumpf TRUMATIC 240 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TRUMATIC 240

Photo Gallery

TRUMPF - TRUMATIC 240ES-PUN-TRU-1991-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf TRUMATIC 240 Punching machine

This Trumpf TRUMATIC 240 Punching machine was manufactured in the year 1991 in Germany. It is equipped with a BOSCH TRUMAGRAPH CC300 control unit. The machine has a punching force of 250 kN.

Overview

brand: TRUMPF
year: 1991
MODEL: TRUMATIC 240
application type: Punching
Location: Spain
machine type: CNC Punch Press
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF TRUMATIC 240

General Data

Machine weight: 9000 KG

Control Unit

Model: TRUMAGRAPH CC300
Brand: BOSCH

Main drive

Punching force: 250 KN
Maximum sheet thickness: 6,4 MM

Movement

X-AXIS Movement: 2000 MM
Y-AXIS Movement: 1000 MM

Workpiece

Workpiece weight: 100 KG

Media

Main electronic connection: 380 V
Power consumption: 23 KVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 10 tool positions 360º
- - For 2000 x 1000 mm sheets
- - All pneumatic hoses have been replaced
- - The air maintenance unit has been replaced
- - Hydraulic power unit filters changed
- - Hydraulic power unit oil changed
Qualitative Machine Benefits:
- - Good conditions
- - Changed the hoses on the clamp that holds the plates.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
