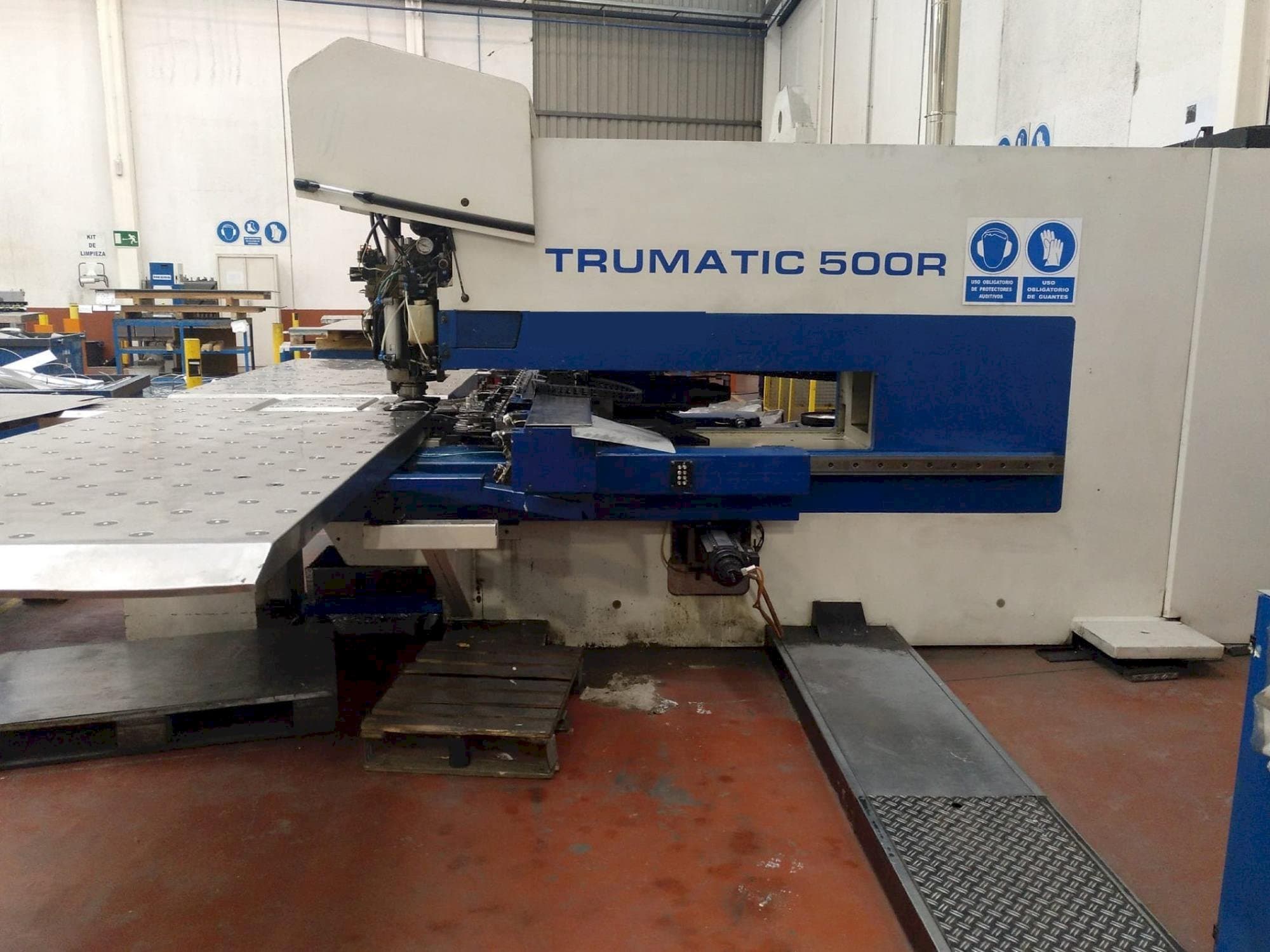

Front view of Trumpf Trumatic 500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 500 R

Photo Gallery

TRUMPF - Trumatic 500 RES-PUN-TRU-1993-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 500 R Punching Machine

This Trumpf Trumatic 500 R Punching Machine was manufactured in 1993 in Germany. It has an overall working time of approximately 57000 production hours. It is operated through a Bosch CC300 control unit. This machine comes with a punching force of 220 kN.

Overview

brand: TRUMPF
year: 1993
MODEL: Trumatic 500 R
production hours: 57000
application type: Punching
Location: Spain
machine type: Punch-Laser Combination
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 500 R

General Data

Measurements width: 6900 mm
Measurements depth: 5900 mm
Measurements height: 2200 mm
Machine weight: 11050 kg

Control Unit

Model: CC300
Brand: BOSCH

Main drive

Punching force: 220 kN
Maximum sheet thickness: 6 mm

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Workpiece

Workpiece z: 8 mm
Workpiece weight: 150 kg

Tools

Number of stations: 21

Max Material thickness

Steel: 6 mm
Stainless steel: 3 mm
Aluminum: 2 mm

Media

Main electronic connection: 400 V
Pump drive power: 19 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
