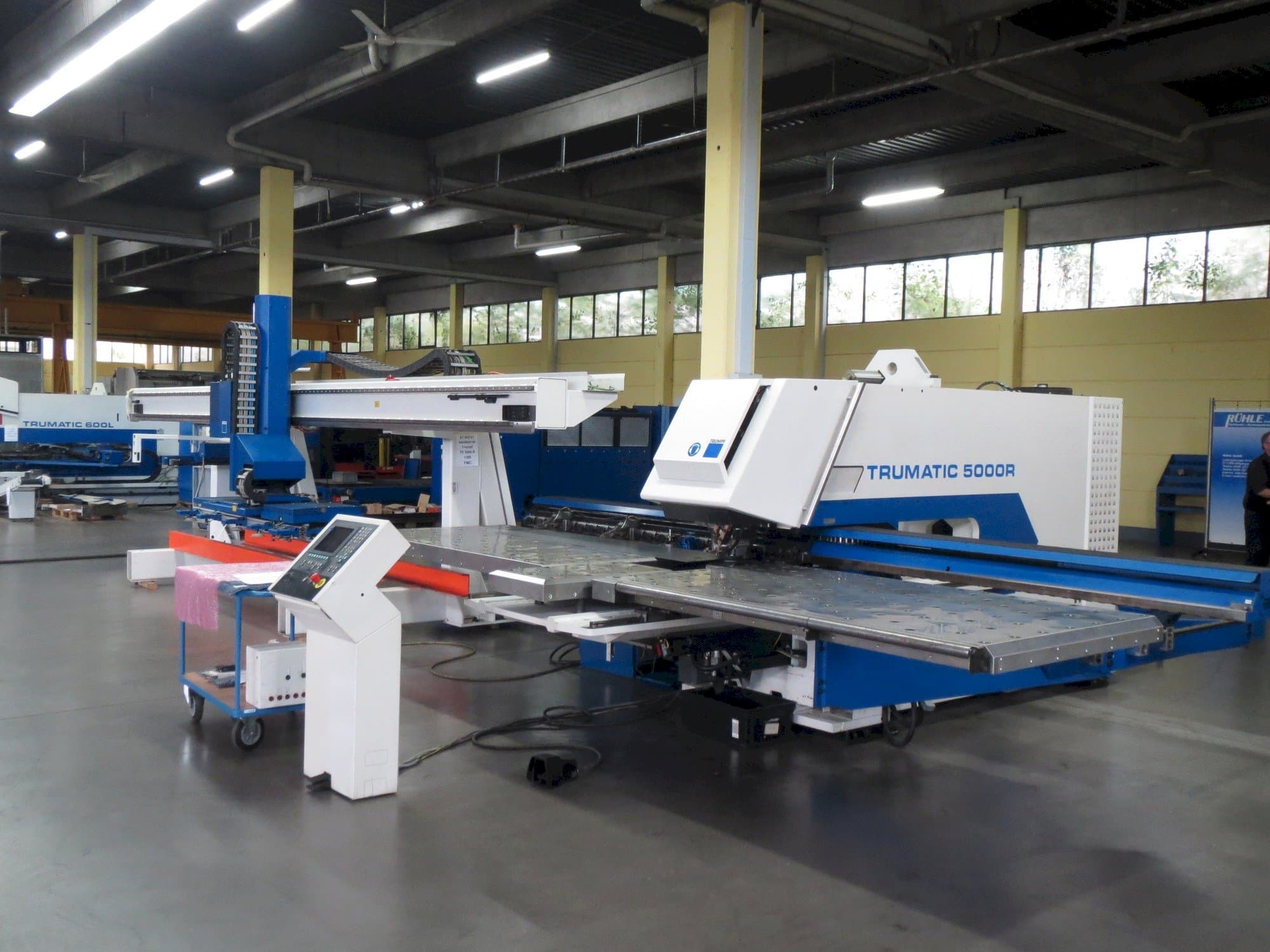

Front view of Trumpf Trumatic 5000 R machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 5000 R

Photo Gallery

TRUMPF - Trumatic 5000 RZA-PUN-TRU-2003-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Pre-Owned Trumpf Trumatic 5000 R Punching Machine

This Trumpf Trumatic 5000 R Punching Machine was manufactured in the year 2003 in Germany. It is operated through a Siemens Sinumerik 840 D control unit. This machine can operate with a punching force of 220 kN.

Overview

brand: TRUMPF
year: 2003
MODEL: Trumatic 5000 R
production hours: 83000
application type: Punching
Location: South Africa
machine type: CNC Punch Press
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic 5000 R

General Data

Measurements width: 6760 mm
Measurements depth: 6100 mm
Measurements height: 2500 mm
Machine weight: 13700 kg

Control Unit

Model: Sinumerik 840 D
Brand: SIEMENS

Main drive

Punching force: 220 kN
Maximum sheet thickness: 8 mm

Movement

X-AXIS Movement: 2535 x 1280 mm

Max Material thickness

Steel: 8.0 mm
Stainless steel: 8.0 mm
Aluminum: 8.0 mm

Media

Main electronic connection: 11.2 KW
Power consumption: 0.7 KW (STANDBY)

Additional Information

Additional equipment

Working Range 2500 x 1250 mm
Stable C-frame for easy access
Coordinate guide for high precision machining
Linear magazine with 18 tool stations and 3 clamps
Drives with maintenance-free 3-phase servo motors
Repositioning unit with programmable stripper
Ball-fitted tables
Parts chute 500 x 500 mm
Good parts container
Chip container

Machine Benefits

Qualitative Machine Benefits

Programmable presser foot
Tool length compensation
Spray lubrication for punches
Vacuum slug removal
Forming control
Controller based on sinumerik 840d
Control panel with tft screen 12"
Nc program management
Integrated technology data
Teleservice via internet

Technical Machine Benefits

Working area x x y: 2535 x 1280 mm
Max. Tool diameter: 76,2 mm
Movement speed x/y: 100/60 m/min
Number of tool station: 18
Automatic shut down mechanism
First oil fillings
Transport and assembly device punching head
Hydraulic punching head
Rotatable single tool adapter
Manual adjustable presser foot force

Extra Information

- Integrated e-Shop - Production plan - Slug remove conveyer chute Safety - CE-marking - Two-beam light barriers - Rapid hydraulic shutdown - Sheet collision detection Extended equipment Punching Options - Function MultiTool - Function MultiShear - Function MultiBend - Function deburring and roll technology - StripLine - Active die Machine Options - Repositioning cylinders - Sensor for part chute Programming - Work Shop Programming based in TruTops Punch Basic Data transmission - USB interface and network connection

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
