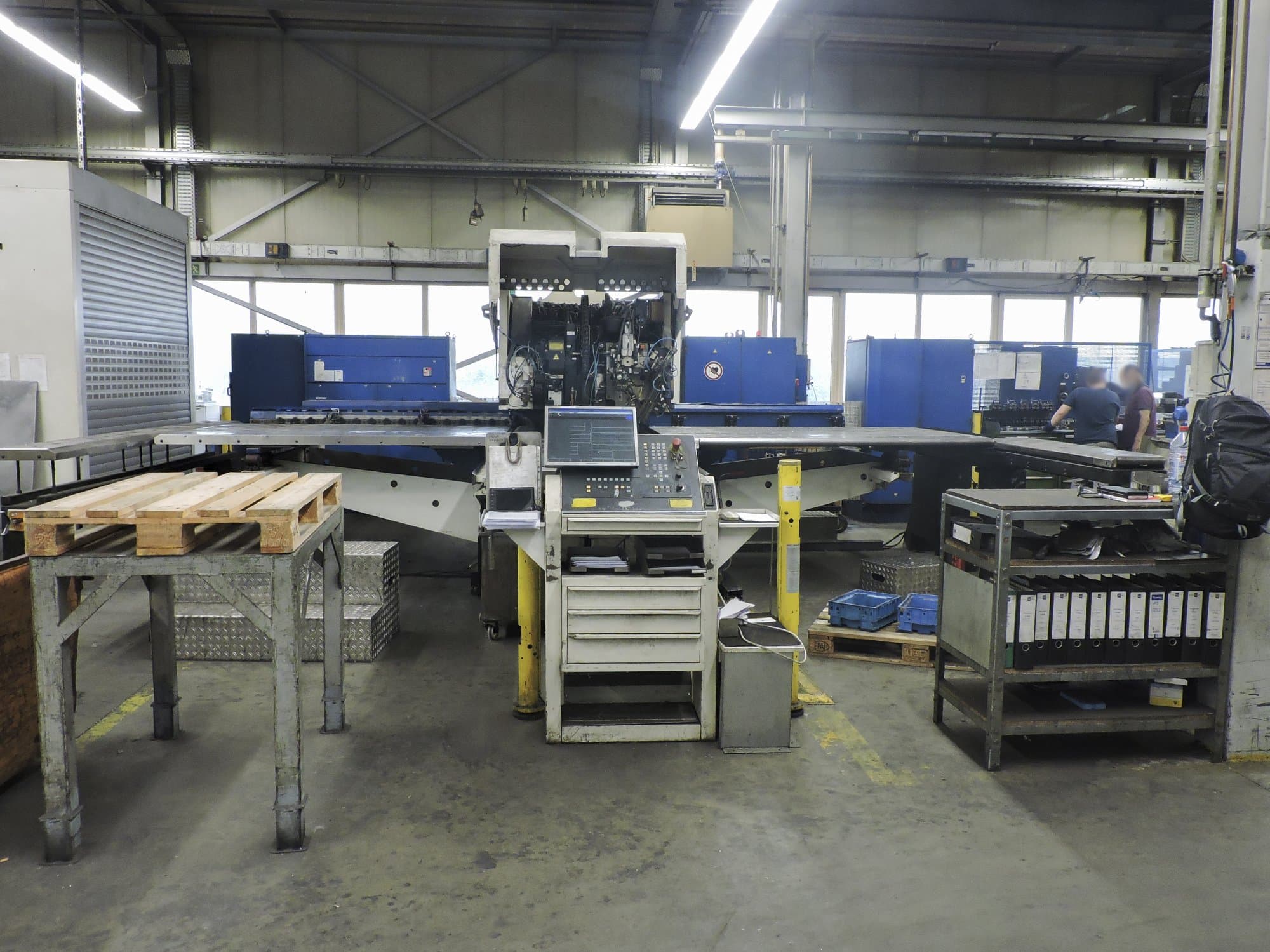

Front view of Trumpf Trumatic 600L machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 600L

Photo Gallery

TRUMPF - Trumatic 600LDE-PUN-TRU-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf Trumatic 600L Laser Punch Combination Machine

This Trumpf Trumatic 600L Laser Punch Combination Machine was manufactured in Germany in 1997 and has a working record of approximately 95000 working hours. This large span punching machine is equipped with three clamps and a SIEMENS 840D Control unit with RS232 interface. In the past, this equipment has worked mostly on up to 2 mm thick mild steel, but can handle materials with a thickness up to 6 mm and stands in a very good condition, including the complete machine head assembly that has been aligned last year. Station cartridges and tools are included as additional equipment.

Overview

brand: TRUMPF
year: 1997
MODEL: Trumatic 600L
production hours: 95000
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic 600L

General Data

Machine weight: 23000 kg

Control Unit

Model: SINUMERIK 840D
Interface: RS232
Brand: SIEMENS

Main drive

Laserpower: 2.2 kW
Laser type: Co2
Punching force: 220 kN
Maximum sheet thickness: 6 mm
Laser brand: Trumpf

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1500 mm

Table

Max punching diameter: 76.2 mm

Tools

Number of index: 18
Number of stations: 18
Max tool diameter: 76.2 mm

Max Material thickness

Steel: 6 mm
Stainless steel: 4 mm
Aluminum: 6 mm

Machine specific data

Power meas. by software: 1975 W
Power meas. at head: 2000 W
Number of cutting heads: 1
Size of cutting head 1: 5"
Laser turbine details: Oil turbine
TASC Version: 3

Media

Main electronic connection: 400 V
Power consumption: 66 kVA
Air pressure: 7 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
