TRUMPF - Trumatic 600LHR-PUN-TRU-2001-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used Laser Punch Combination Machine - Trumpf Trumatic 600L

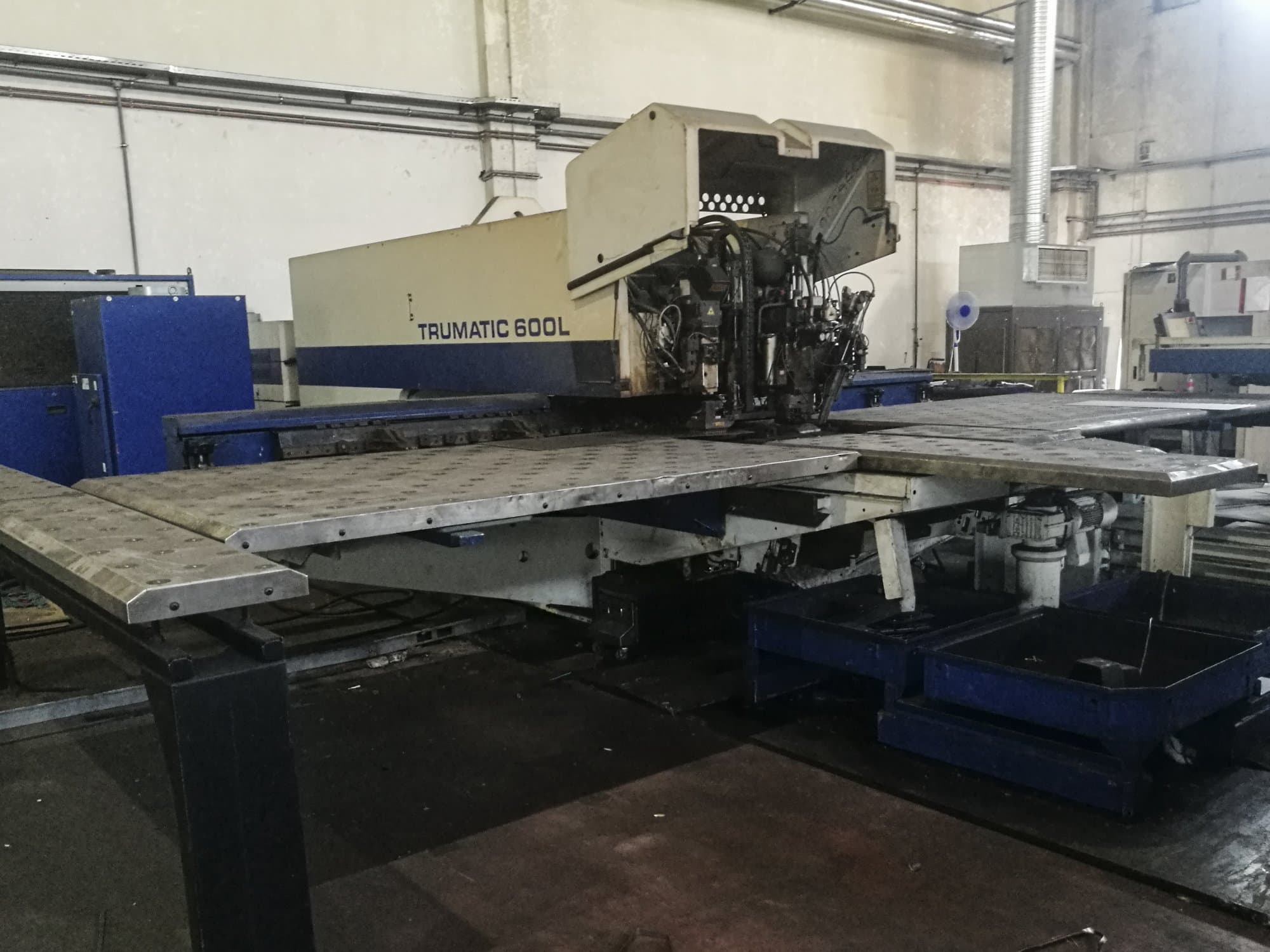

This Trumpf Trumatic 600L Laser Punch Combination Machine from 2001 was manufactured in Germany and has a production time of 30600 working hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this fast machine with long Y axis has mainly worked with 5 mm steel sheets during the past and comes with genuine additional equipment from Trumpf. For this machine optics were replaced in June 2018 and it was frequently inspected and maintained by official Trumpf service.
Overview
- brand: TRUMPF
- year: 2001
- MODEL: Trumatic 600L
- production hours: 30600
- application type: Punching
- Location: Croatia
- machine type: Punch-Laser Combination
- control unit brand: SIEMENS
Technical Information - TRUMPF Trumatic 600L
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D
Dimensions
- Machine Depth: 8000 mm
- Machine Height: 2500 mm
- Machine Weight: 23000 kg
Movement
- X-axis Travel: 3000 mm
- Y-axis Travel: 1600 mm
Technical Specification
- Laser Power: 2.4 kW
- Max. Sheet Thickness: 8 mm
- Punching Force: 220 Kn
Additional Information
Additional equipment
- Trumpf SheetMaster
- Trumpf GripMaster
- 30x Tools
- Trumpf TruTops 6.4 with license (upon request)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
