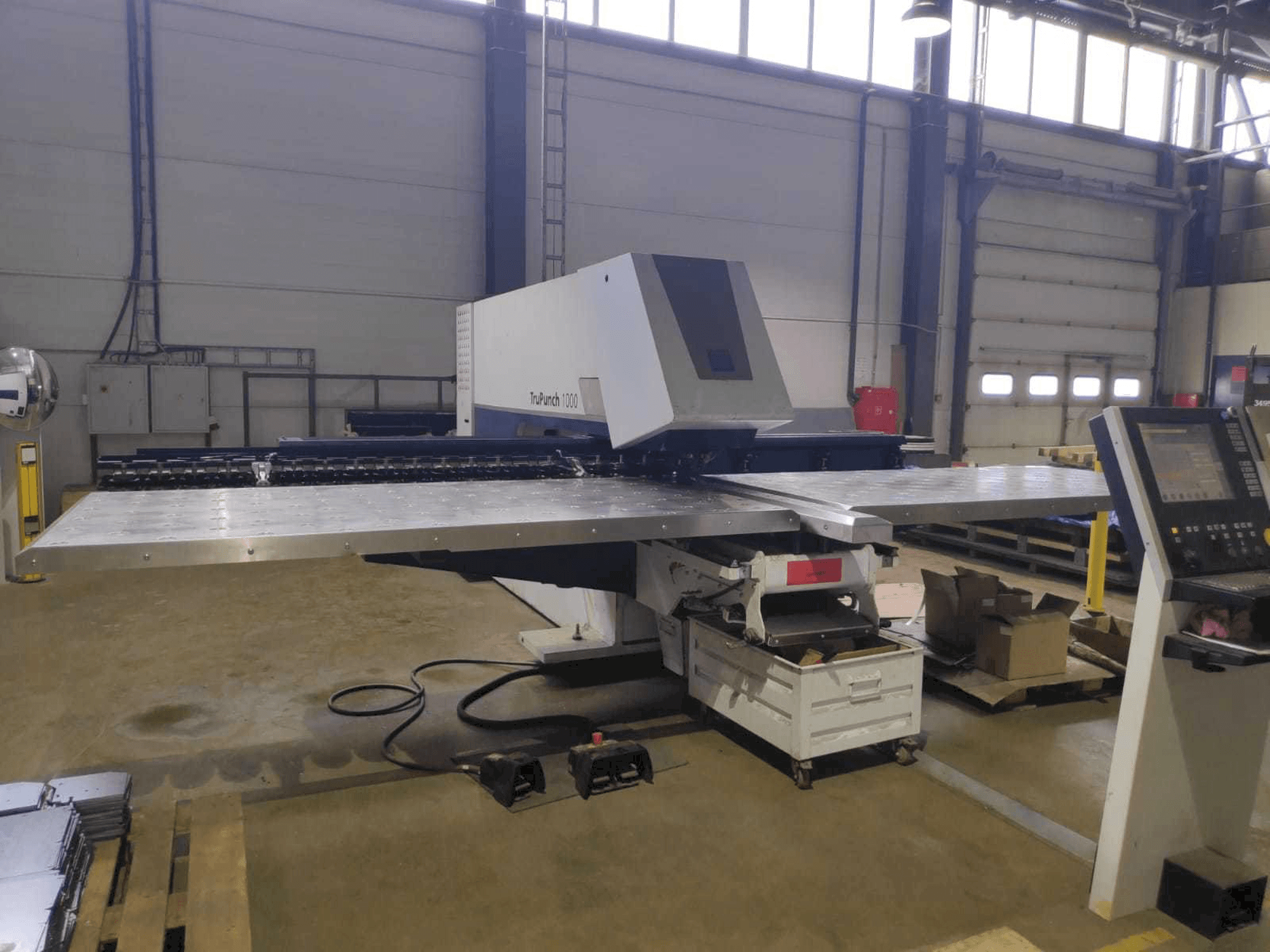

Front view of Trumpf TruPunch 1000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruPunch 1000

Photo Gallery

TRUMPF - TruPunch 1000BY-PUN-TRU-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

This Trumpf TruPunch 1000 Punching Machine was manufactured in the year 2013 in Germany. This machine has a punching force 165 kN and a maximum sheet thickness 6.4 mm.

Overview

brand: TRUMPF
year: 2013
MODEL: TruPunch 1000
production hours: 0
application type: Punching
Location: Belarus
machine type: CNC Punch Press

Technical Information - TRUMPF TruPunch 1000

General Data

Measurements width: 6550 mm
Measurements depth: 7144 mm
Measurements height: 2155 mm

Main drive

Punching force: 165 kN
Maximum sheet thickness: 6.4 mm

Turret

Number of tool slots: 18 pcs. / 2 pcs.

Media

Main electronic connection: 400 V 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits

Cutting moves: 600 1 / min
Marking moves: 1300 1 / min
Cutting mode: x-axis 2500 mm
Cutting mode: y-axis 1250 mm
Max. Billet weight: 150 kg
Multitool tool replacement time: 2. 4 s
Part size for the cover for removing items at cutting down: 180 mm x 150 mm
Part size for fixed cutting tray (with movable table) 460 mm x 500 mm
Average power consumption with active shutdown automation: 0. 3 kw
The average power consumption during the production: 4. 3 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
