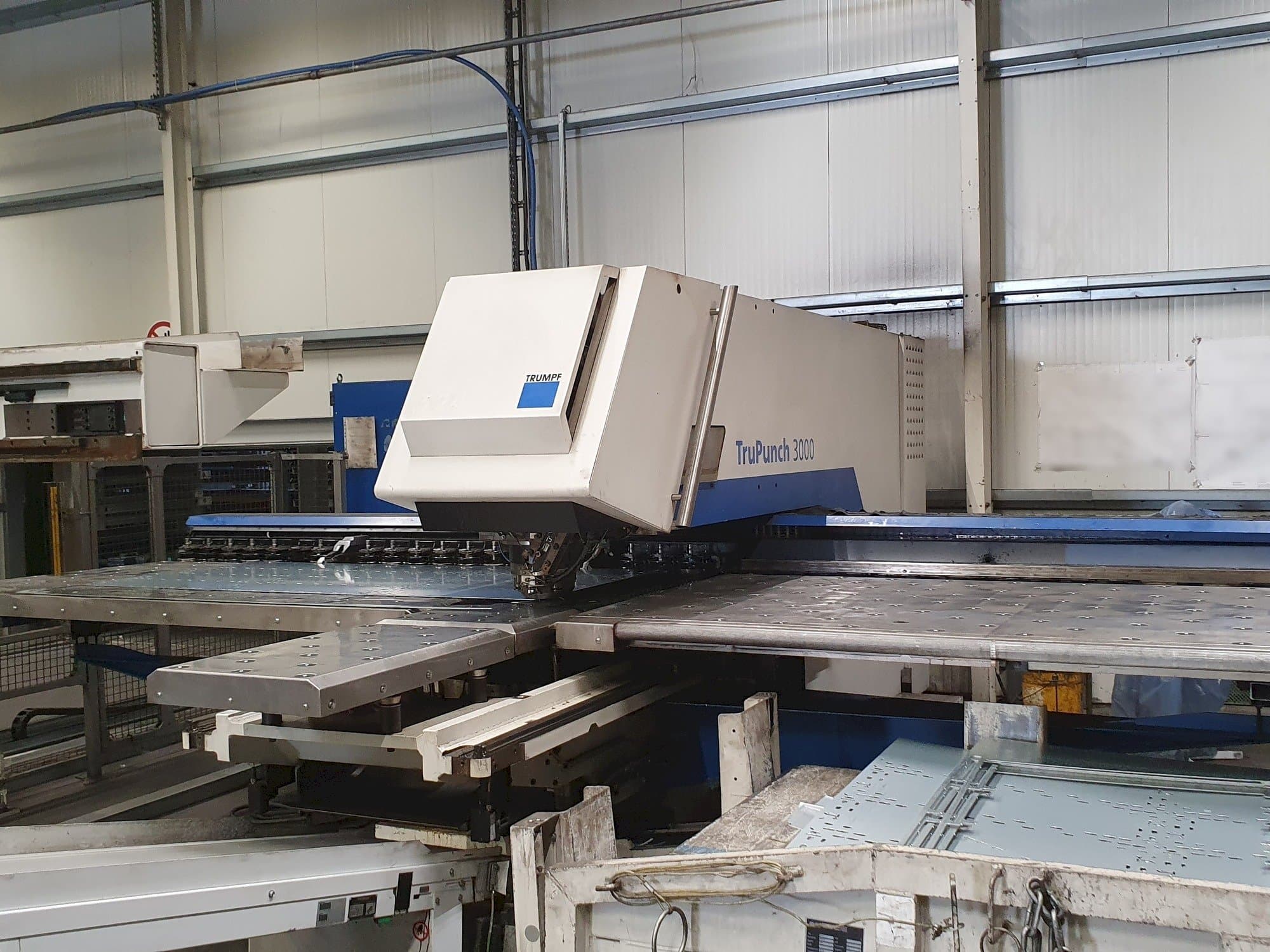

Front view of Trumpf TruPunch 3000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruPunch 3000

Photo Gallery

TRUMPF - TruPunch 3000PL-PUN-TRU-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Trumpf TruPunch 3000 Punching Machine - Used

This Trumpf TruPunch 3000 Punching Machine was built in Germany in the year 2007. It has been working for 60951 hours. It is equipped with a control unit of the same brand. This machine work with a punching force of 180 kN. It can work with a maximum thickness of processed sheet metal 6.4 mm.

Overview

brand: TRUMPF
year: 2007
MODEL: TruPunch 3000
production hours: 60951
application type: Punching
Location: Poland
machine type: CNC Punch Press
control unit brand: TRUMPF

Technical Information - TRUMPF TruPunch 3000

General Data

Measurements width: 5800 mm
Measurements depth: 6500 mm
Measurements height: 2230 mm

Control Unit

Brand: TRUMPF

Main drive

Punching force: 180 kn

Table

Outer length: 2500 mm
Outer width: 1250 mm
Table load: 150 kg

Additional Information

Machine Benefits

Technical Machine Benefits

Max. Number of strokes per min 900 1/min.
Max. Marking speed 2200 1/min.
Number of tool seats 19 pcs.
Tool change time 0. 5 sec.
Max thickness of processed sheet metal 6. 4 mm.
Active functions: sheet deformation sensor, tapping, marking, multibend, multishear
Tank heating with hydraulic oil
Softpunch functions
Stripline-programmable manually
Foundation are on damping elements

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
