UNION BFT 102

Photo Gallery

UNION - BFT 102DE-BOR-UNI-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

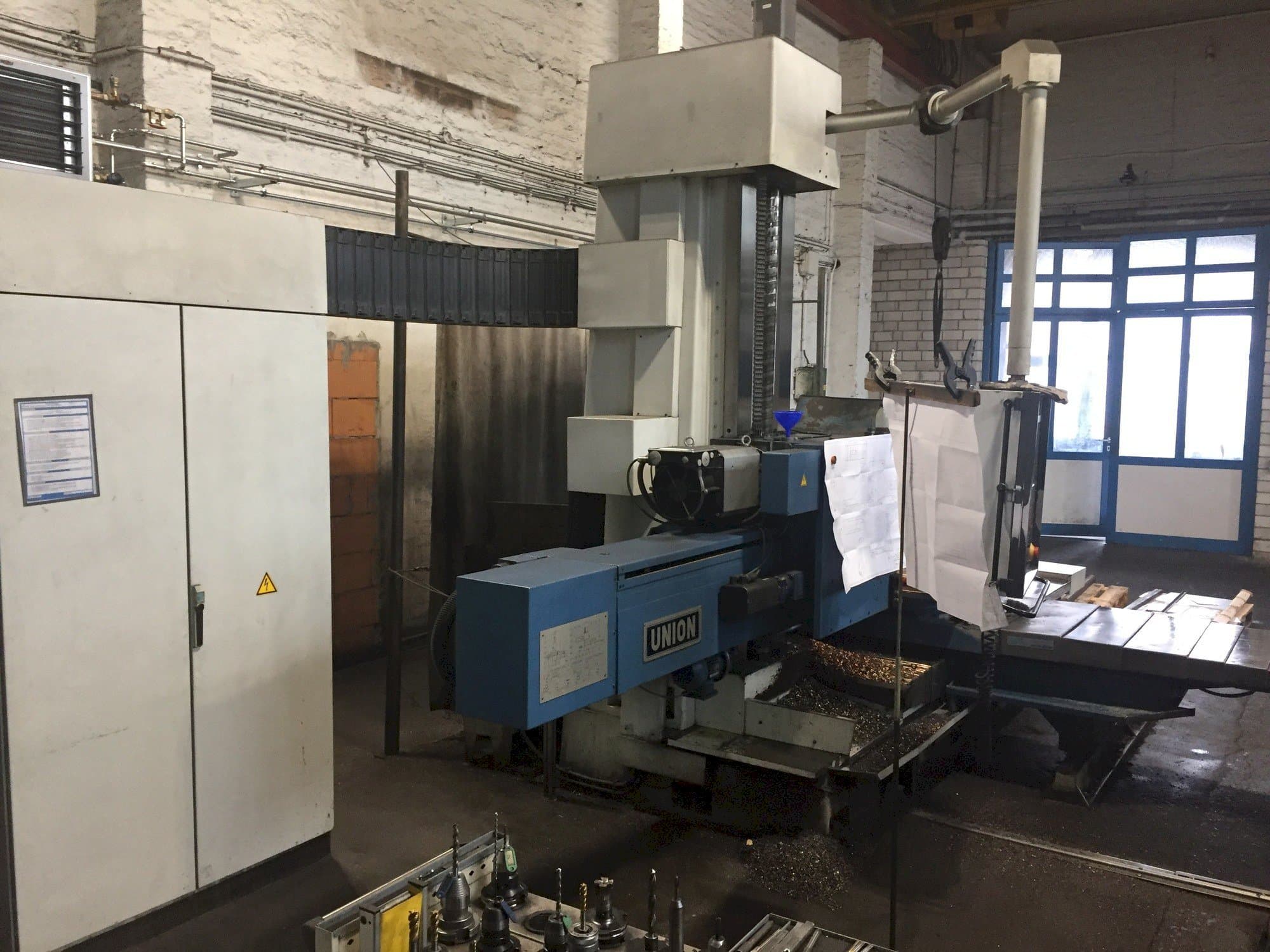

Union BFT 102 boring machine

This Union BFT 102 boring machine was made in the year 1998. It is equipped with a Heidenhain TNC 426 control unit and has 3 axis. The machine has a spindle speed of 4 - 1600 rpm.

Overview

brand: UNION
year: 1998
MODEL: BFT 102
application type: Other Machine Tools
Location: Germany
machine type: Boring Machine (Metal)
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - UNION BFT 102

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 4 - 1600 1/MIN
Number of axis: 3

Table

Outer length: 1250 mm
Outer width: 1400 mm

Tools

Type of tool holder: SK 50 DIN 69871 Typ

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Longitudinal movement (x): 1600 mm
- - Transverse movement (y): 1250 mm
- - Table movement (z): 1600 mm
- - Spindle movement (w): 710 mm
- - Spindle Ø: 102 mm
- - Positioning accuracy (xyz): 30μm/1000 mm
- - Circular form deviation spindles: 0,008 mm
- - Cylindricity of spindles: 0,012 mm
- - Circular form deviation circular inside: 0,012 mm
- - Circular form deviation circular outside: 0,016 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
