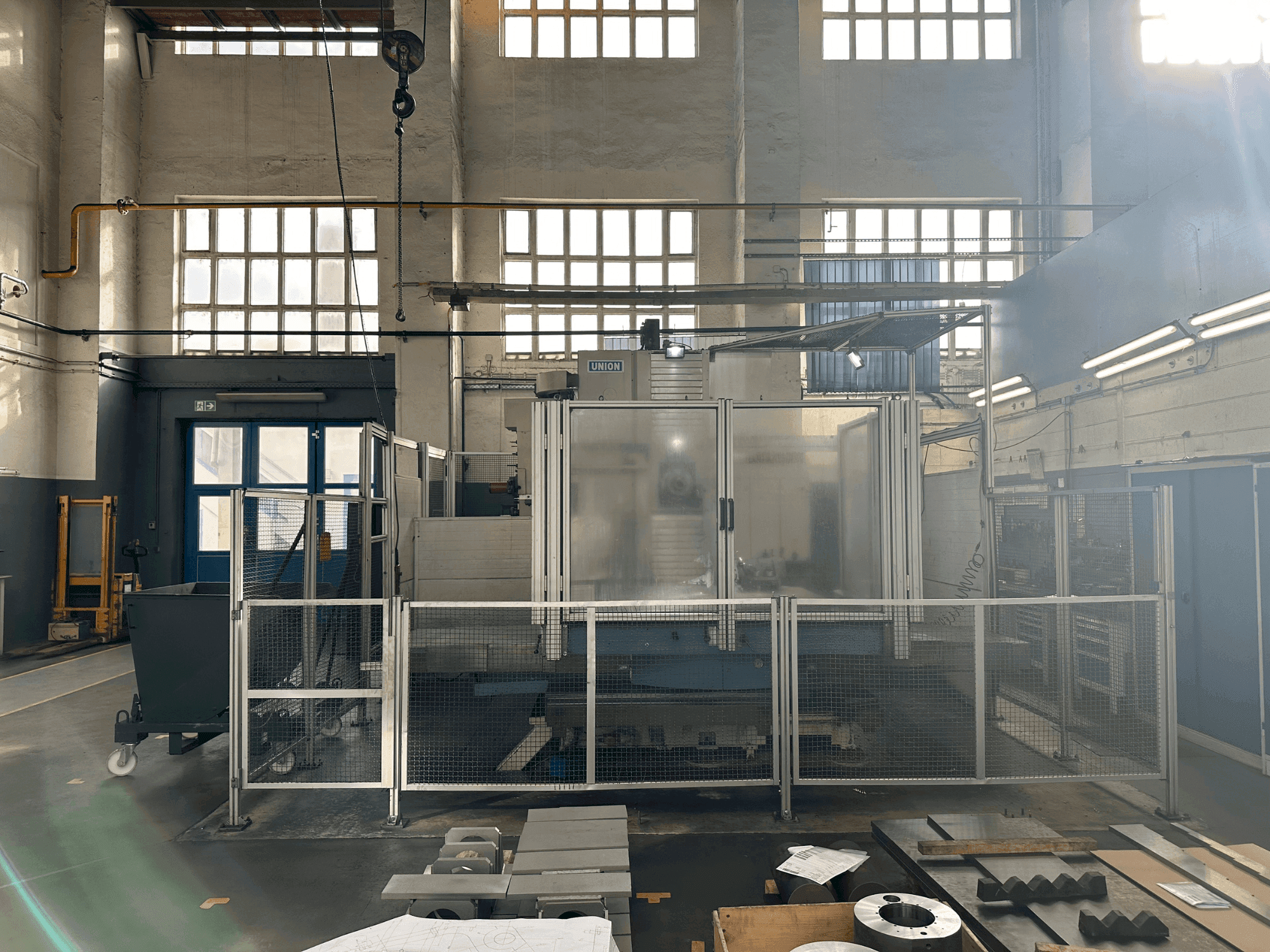

UNION TC 110

Photo Gallery

UNION - TC 110DE-BOR-UNI-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Union TC 110 - 2002 - Milling machine For sale

This 3-Axis Union TC 110 milling machine, crafted in 2002, is adeptly controlled by a Heidenhain TNC 426 system. It comes with a SIDEPALSA 40-fold tool changer and an SK50 tool holder. The table dimensions are 1250 x 1600mm, and it features movement in X, Y, Z, and W axes measuring 2000mm, 1600mm, 1500mm, and 550mm, respectively. Its spindle supports a diameter of 110mm, enhancing the precision with a nominal torque of 1639 Nm and speeds ranging up to 4000 min^-1. For more information about this Union TC 110 milling machine, reach out to us.

Overview

brand: UNION
year: 2002
MODEL: TC 110
production hours: 0
application type: Other Machine Tools
Location: Germany
machine type: Boring Machine (Metal)
control unit brand: HEIDENHAIN

Technical Information - UNION TC 110

General Data

Measurements width: 5150 mm
Measurements depth: 8600 mm
Measurements height: 5150 mm

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Number of spindles: 2
Spindle speed range: 4000 1/MIN
Tool taper: SK50
Number of axis: 3

Movement

X-AXIS Movement: 2000 mm
X-AXIS Rapid traverse: 15m/min
Y-AXIS Movement: 1600 mm
Y-AXIS Feed Force: 16kN
Y-AXIS Rapid traverse: 15m/min
Z-AXIS Movement: 1500 mm
Z-AXIS Feed Force: 20kN
Z-AXIS Rapid traverse: 15m/min
W-Axis Movement: 550 mm

Tools

Number of index: 40
Type of tool holder: SK50

Additional Information

Additional equipment

Tool changer SIDEPALSA 40-fold
Control on 79431 hrs // Machine on 76080 hrs // Program run 27696 hrs

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
