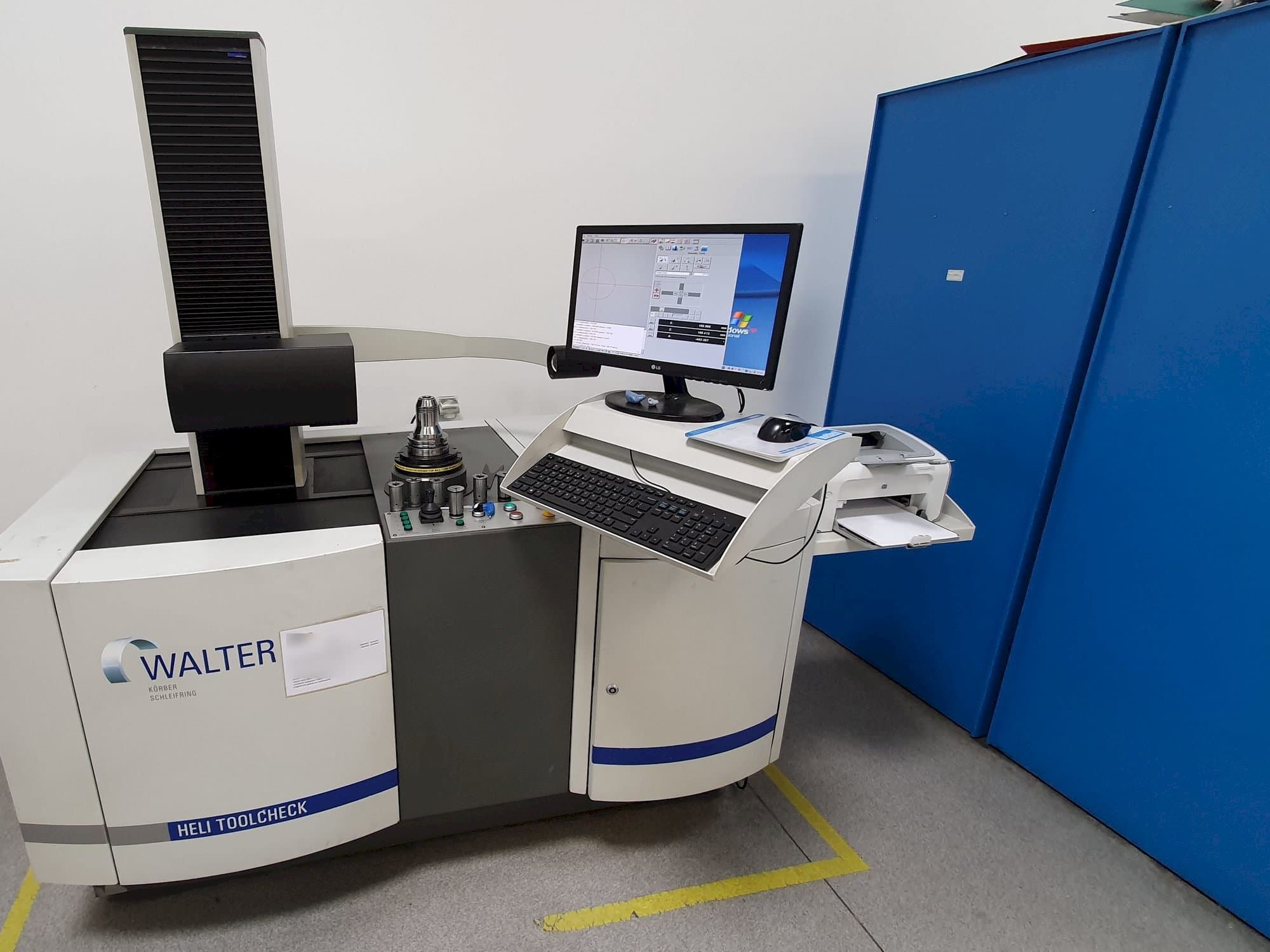

Front view of Walter Heli Toolcheck 3C machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

WALTER Heli Toolcheck 3C

Photo Gallery

WALTER - Heli Toolcheck 3CPL-MEA-WAL-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Walter Heli Toolcheck 3C Measuring and presetting machine

This Walter Heli Toolcheck 3C Measuring and presetting machine was made in Germany in 2004. It operates with an A-axis speed of 60 rpm, a repeating accuracy diameter and length measuring of +/- 0,002 mm and a resolution for all linear axis 0,002 mm. The machine is in very good working condition. Ready for tests.

Overview

brand: WALTER
year: 2004
MODEL: Heli Toolcheck 3C
application type: Measuring
Location: Poland
machine type: Optical Measurement Machine

Technical Information - WALTER Heli Toolcheck 3C

General Data

Measurements width: 1765 mm
Measurements depth: 1400 mm
Measurements height: 1957 mm
Machine weight: 1500 KG

Movement

X-AXIS Movement: 310 mm
Y-AXIS Movement: 290 mm
Z-AXIS Movement: 640 mm

Workpiece

Workpiece weight: 25 KG

Media

Main electronic connection: 230V / 60Hz
Power consumption: 2 kVA

Additional Information

Machine Benefits

Qualitative Machine Benefits

The machine in very good working condition
It is still at the production
Ready for tests
Full documentation available
Pc and software included
Some accessories included

Technical Machine Benefits

A axis speed: 60 rpm
Workpiece dia. : 300 mm
Max. Workpiece length: 500 mm
Repeating accuracy dia. Measuring: + /- 0. 002 mm
Repeating accuracy length measuring: + /- 0. 002 mm
Resolution for all linear axis: 0. 002 mm
Resolution for rotational a axis: 0. 0025 deg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
