WALTER HELITRONIC POWER REGRINDER

Photo Gallery

WALTER - HELITRONIC POWER REGRINDERPL-GRI-WAL-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

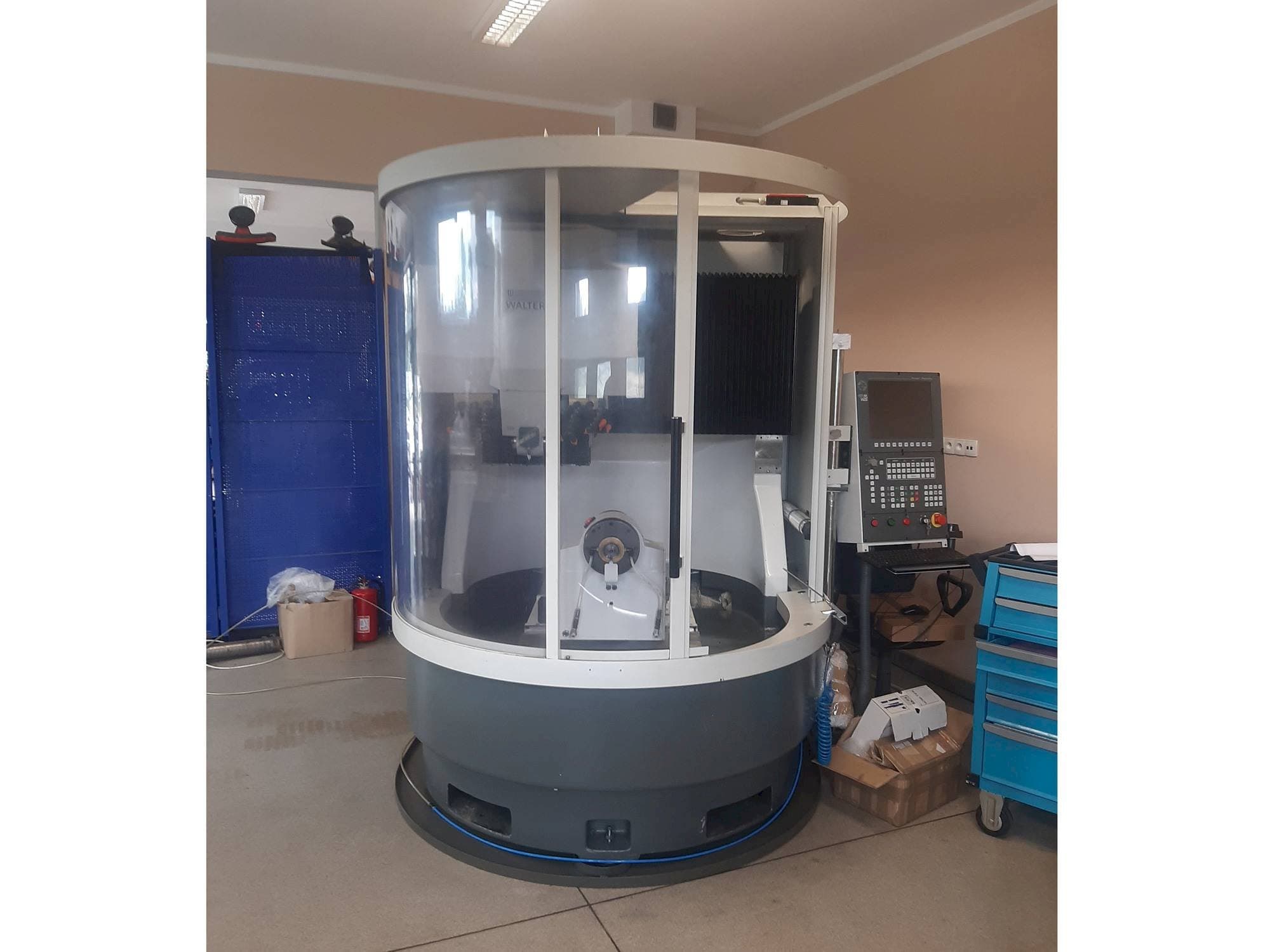

WALTER HELITRONIC POWER REGRINDER Grinding machine

This WALTER HELITRONIC POWER REGRINDER Grinding machine was made in 2001 in Germany. It is equipped with a HMC 500 control unit and has 5 axis. The machine has a spindle speed of 9500 rpm, is in good condition and well maintained.

Overview

brand: WALTER
year: 2001
MODEL: HELITRONIC POWER REGRINDER
application type: Grinding
Location: Poland
machine type: Grinding Machine

Technical Information - WALTER HELITRONIC POWER REGRINDER

General Data

Measurements width: 2427 mm
Measurements depth: 2930 mm
Measurements height: 2273 mm
Machine weight: 4600 kg

Control Unit

Model: 500

Main drive

Spindle speed range: 9500 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 470 mm
Y-AXIS Movement: 320 mm
Z-AXIS Movement: 660 mm
C-AXIS Movement: 200 deg. MM

Media

Main electronic connection: 400V / 50 Hz
Power consumption: 25 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max workpiece diameter : 320 mm
- - Max workpiece length: 350 mm
- - Grinding wheel speed range : 0 - 9500 rpm
- - Spindle taper : iso50
Qualitative Machine Benefits:
- - The machine is in very good, working condition and ready for tests. It is suitable to regrind / manufacture wood and metal working tools. An accuracy protocol from the walter service available and documentation.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
