Weingartner - Vario 700-000MD-MIL-WEI-2011-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Weingartner Vario 700-000 For Sale | gindumac.com

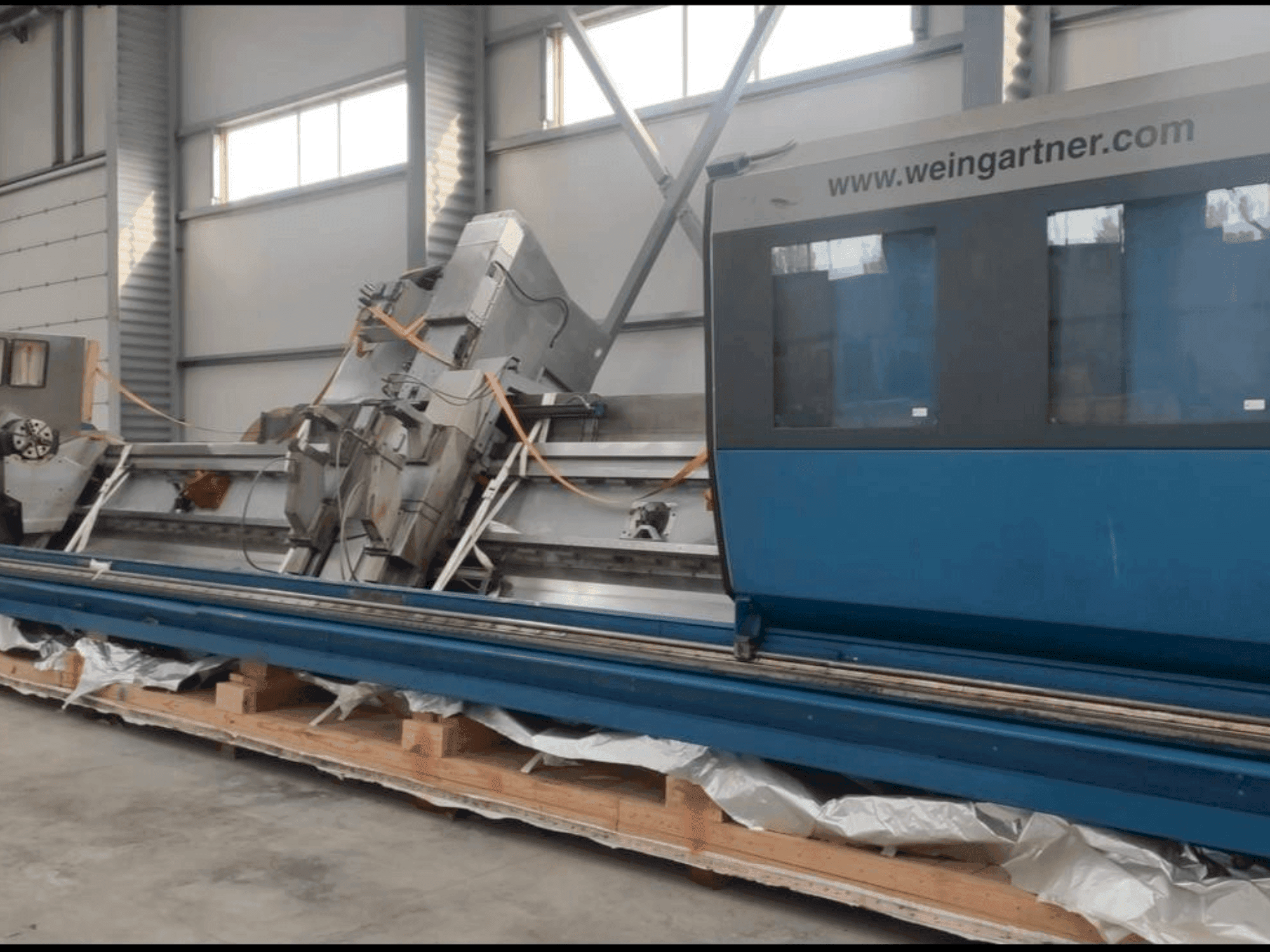

This 4-axis Weingartner Vario 700-000 mill-turn centre was manufactured in 2011. It features a robust design with a main spindle bore of 108 mm and a chuck capable of clamping diameters from 25 to 245 mm. The machine supports a maximum cutter head diameter of 260 mm and offers a swiveling range of ±90°. Ideal for complex milling and turning operations, the Weingartner Vario 700-000 is a valuable addition to any workshop. For more information about this mill-turn centre, please reach out to us.
Overview
- brand: Weingartner
- year: 2011
- MODEL: Vario 700-000
- application type: Milling
- Location: Moldova
- machine type: Mill-Turn Centre
Technical Information - Weingartner Vario 700-000
Dimensions
- Machine Depth: 13500 mm
- Machine Height: 3750 mm
- Machine Weight: 42000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 10900 mm
- Y-axis Travel: 250 mm
Technical Specification
- Spindle Speed: 1800 RPM
Additional Information
Additional equipment
- Headstock: Feed by AC servo motor: 1FT6 105 – 8SF71 – 3AG1, Torque available at the main spindle in S1 operation, Bevel gear box ratio: 4:1, Worm drive ratio: 15:1, Total reduction ratio: 60:1, Main spindle height: 1550 mm, Main spindle bore: 108 mm, Chuck Gr. 315: Bore diameter: 95 mm, Max. pressure: 27 bar, Max. clamping force at 27 bar: 17500 daN, Outside clamping: 25 – 245 mm, Inside clamping: 90 – 310 mm
- Chip Conveyor: Drive power: 1.1 kW, Discharge width: 250 mm, Discharge height: 850 mm, Swarf conveyed: 300 dm³/h
- Hydraulics: Pump delivery: 27 l/min, Max. system pressure: 80 bar, Drive power: 4.6 kW, Tank capacity: 60 l, Oil cooler power: 0.3 kW
- Milling Unit PUFK-320: Peripheral and Hobbing Milling Unit, Swiveling axis A feed by AC servo motor: 1FT6 084 – 8AF71 – 3EL4, Planetary gear box ratio: 70:1, Gear transmission ratio: 3:1, Total reduction ratio: 210:1, Max. swiveling speed: 90°/sec, Swiveling range: ±90°, Feed by AC main spindle motor: 1PH7 137 – 2NF22 – 0CJ2, Max. cutter head diameter: 260 mm, Max. cutter head speed: 300 min⁻¹
- Peeling Unit (Option): Feed by AC main spindle motor: 1PH7 137 – 2NF22 – 0CC2, Gear ratio: 2.4:1, Max. cutter head speed: 1800 min⁻¹
- Front Steady Rest: Diameter range (milling jaws): 25 – 220 mm, Max. clamping force at 80 bar (without efficiency): 1200 daN, Max. clamping pressure: 80 bar
- Rear Steady Rest: Diameter range (milling jaws long): 25 – 220 mm, Max. clamping force at 80 bar (without efficiency): 1200 daN, Max. clamping pressure: 80 bar
- Tailstock: Feed by AC servo motor: 1FT6 064 – 6AF71 – 3EK4, Bevel spur gear ratio: 50:1, Rapid traverse max: 5000 mm/min, Quill diameter: 160 mm, Stroke: 200 mm, Pressure at 50 bar: 1500 daN, Tension at 50 bar: 1000 daN, Max. pressure: 50 bar
- Workpiece Support: Diameter range: 70 – 220 mm
- Total Machine Specifications: Supply Voltage: 3 x 380 V ± 10%, Cycle: 50 Hz ± 2%, Max Power Input: 57 kW, Max Power: 100 A, Control Voltage: 24 V DC, System Pressure (Pneumatics): 6 – 10 bar, Air Consumption: 15 – 20 m³/hour, Air Connector: ½”, System Pressure (Hydraulics): 90 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
