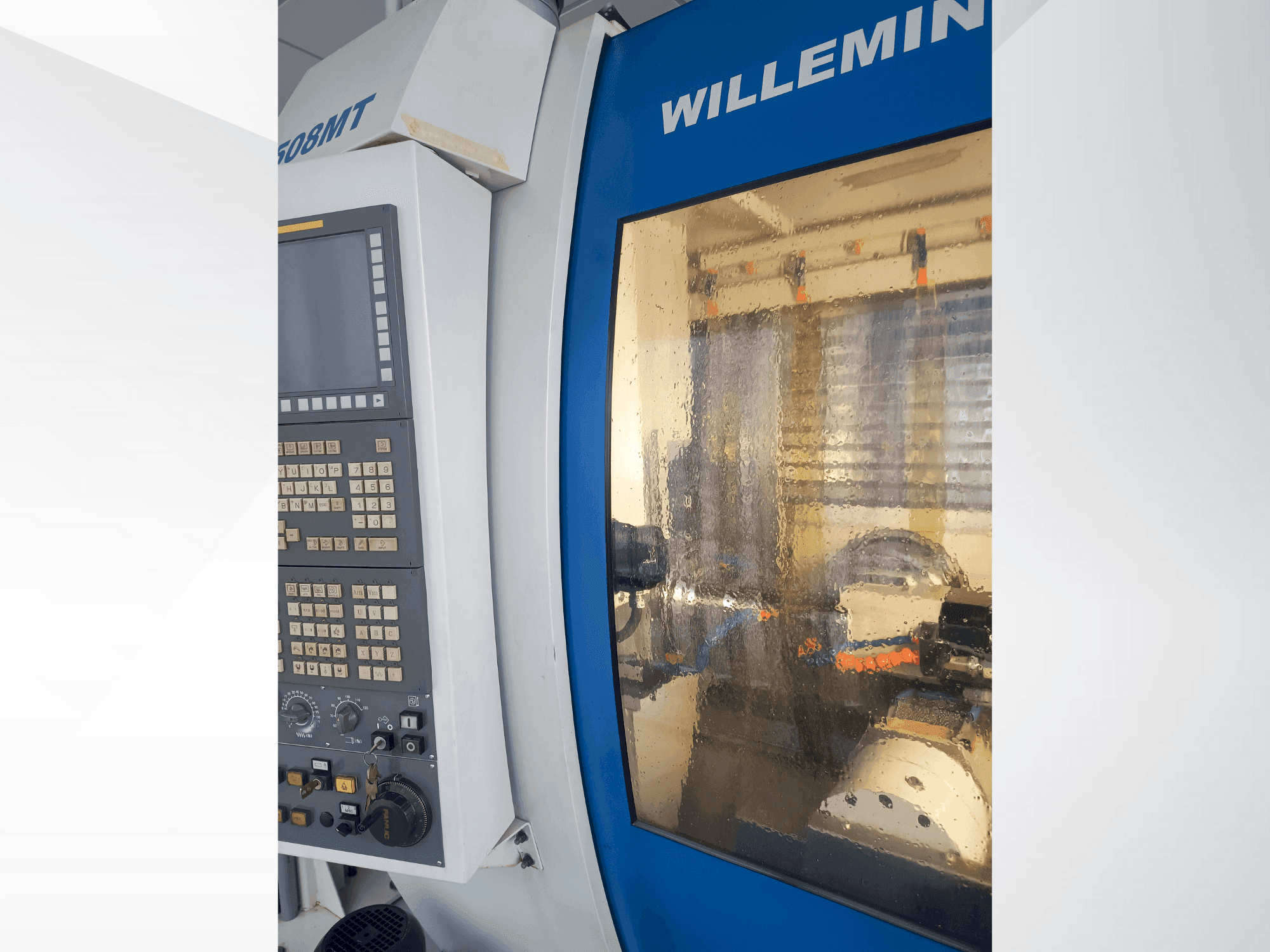

WILLEMIN-MACODEL - 508MT-195ES-TUR-WIL-2011-00001

Additional Equipment

• - Peripheral cooling system with a 150-liter tank
• - Peripheral cooling system with a 150-liter tank

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Rotary axes b: angular movement -15° to +100°, nominal torque 180 nm, max speed 250 min⁻¹
  • - Rotary axes a/s2: continuous torque 71. 6 nm, max speed 6000 min⁻¹
  • - Maximum speed of linear axes: 40 m/min
  • - Feed force: 250 dan
  • - Tool magazine capacity: 72 hsk-e40 tools
  • - Tool-to-tool change time: 0. 8 seconds
  • - Ge-fanuc 31i a5 with a 10. 4-inch lcd screen
  • - Supports parametric programming and simultaneous 5-axis control
  • - Electrical power: 35 kva
  • - Liquid cooling system for the integrated spindle
• Qualitative Machine Benefits:
  • - Bed made of spheroidal graphite cast iron for high static and dynamic stability
  • - Internal enclosures and complete casing with a protective curtain
  • - Numerical control mounted on a mobile support for easy access

Extra information

• - Machine still under power

Payment Terms

• Payment in advance

• Asset Financing
