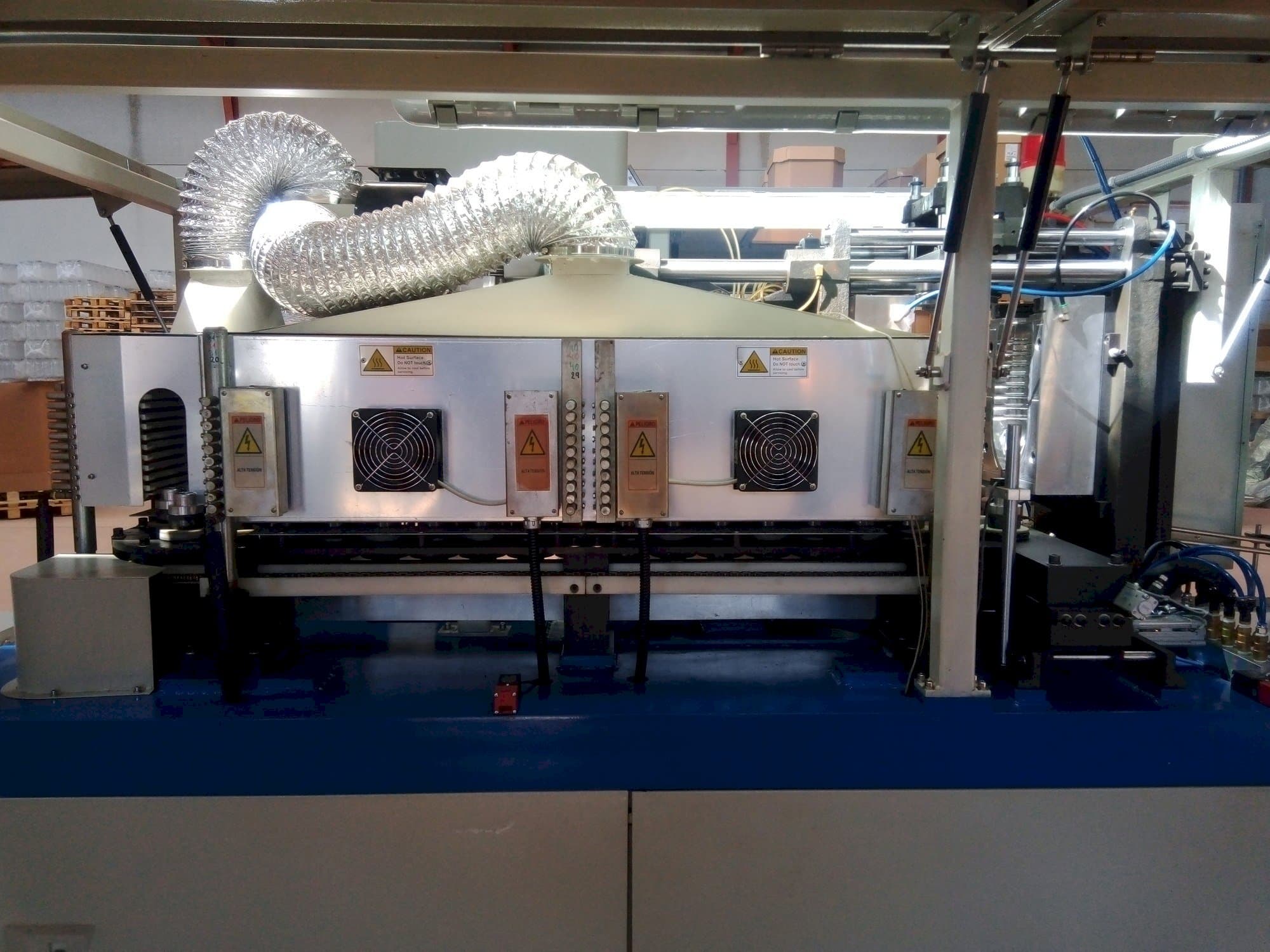

Front view of YANCED YS600 machine
Front view of YANCED YS600 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

YANCED - YS600ES-BLO-YAN-2015-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This YANCED YS600 Blow Moulding Machine was manufactured in the year 2015 in Spain. The machine has a clamping force of 180 kN.

Overview

  • brand: YANCED
  • year: 2015
  • MODEL: YS600
  • application type: Blow Molding
  • Location: Spain
  • machine type: Blow Moulding Machine

Technical Information - YANCED YS600

General Data

  • Measurements width: 2000 mm
  • Measurements depth: 1200 mm
  • Measurements height: 1900 mm
  • Machine weight: 2000 kg

Clamping unit

  • Clamping force: 180 kN

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum mould opening 230 mm
      • - Max. Mould width 260 mm
      • - Stretching stroke 453 mm
      • - Mould bottom stroke 60 mm
      • - Number of cavities 1
      • - Max. Container volume 5 ltr.
      • - Container neck diameter 015-080 mm
      • - Maximum container diameter 200 mm
      • - Maximum container height 350 mm
      • - Heating power 30 kw
    • Qualitative Machine Benefits:
      • - Total installed power 33 kw
      • - Operating pressure 0. 8 mpa
      • - Blowing pressure 3. 2 mpa
      • - Cooling water temp. 10-12 °c
      • - Cooling water flow rate 30 l/min
      • - Cooling water pressure 0. 3-0. 5 mpa

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
