Yang ML 25A

Photo Gallery

Yang - ML 25AIT-TUR-YAN-1996-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

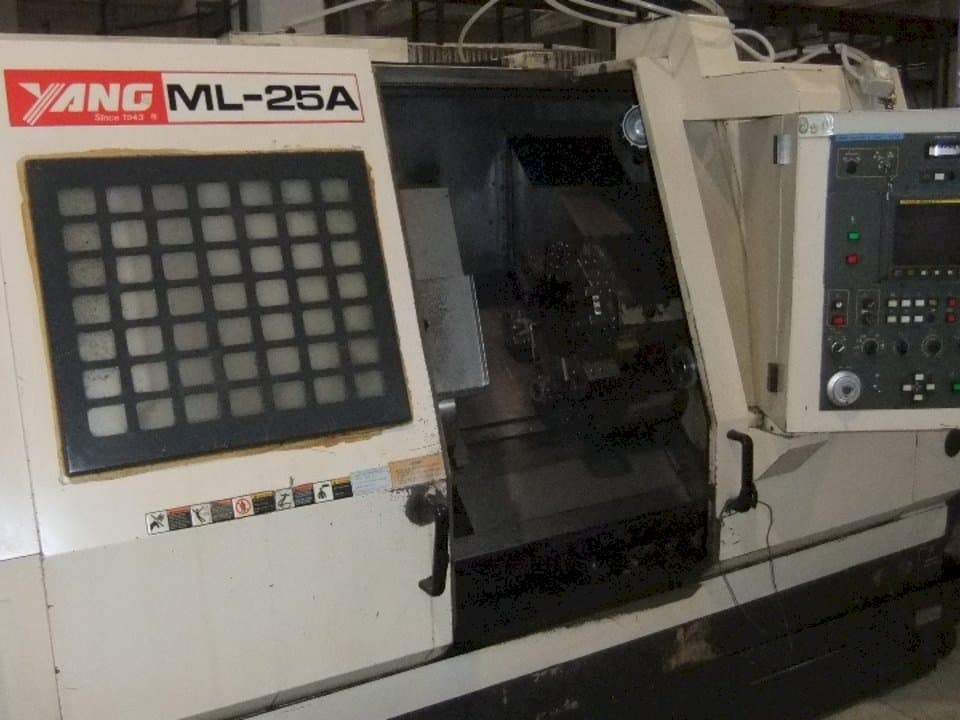

Yang ML 25A Lathe

This Yang ML 25A Lathe was built in the year 1996. It is equipped with a FANUC OT control unit. This 2 axis machine operates with a spindle speed range between 45 - 4500 rpm. Includes self-centering automatic and auto turret with 6 positions.

Overview

brand: Yang
year: 1996
MODEL: ML 25A
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Yang ML 25A

General Data

Measurements width: 4000 mm
Measurements depth: 2000 mm
Measurements height: 2200 mm
Machine weight: 5000 KG

Control Unit

Model: OT
Brand: FANUC

Main drive

Spindle speed range: 45 - 4500 1/MIN
Spindle motor power: 11 kW
Spindle bore: 77 mm
Number of axis: 2

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Center height: 295 mm
- - Distance between centers: 600 mm
- - Turnable diameter on the carriage: 350 mm
- - Bench inclination deg. 45 °
- - Diameter admitted on the bed: 550 mm
- - Maximum longitudinal stroke: 520 mm
- - Max. Turning for max. Turning length: Ø280 mm x 520 mm
- - Rapid z axis feeds: 12 m/min
- - Rapid feeds x axis: 20 m/min
- - Cone tip of the head mt 7
Qualitative Machine Benefits:
- - Tailstock diameter: 85 mm
- - Maximum travel tailstock: 449 mm
- - Self-centering automatic diam. : 300 mm
- - Auto turret. 6 pos

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
