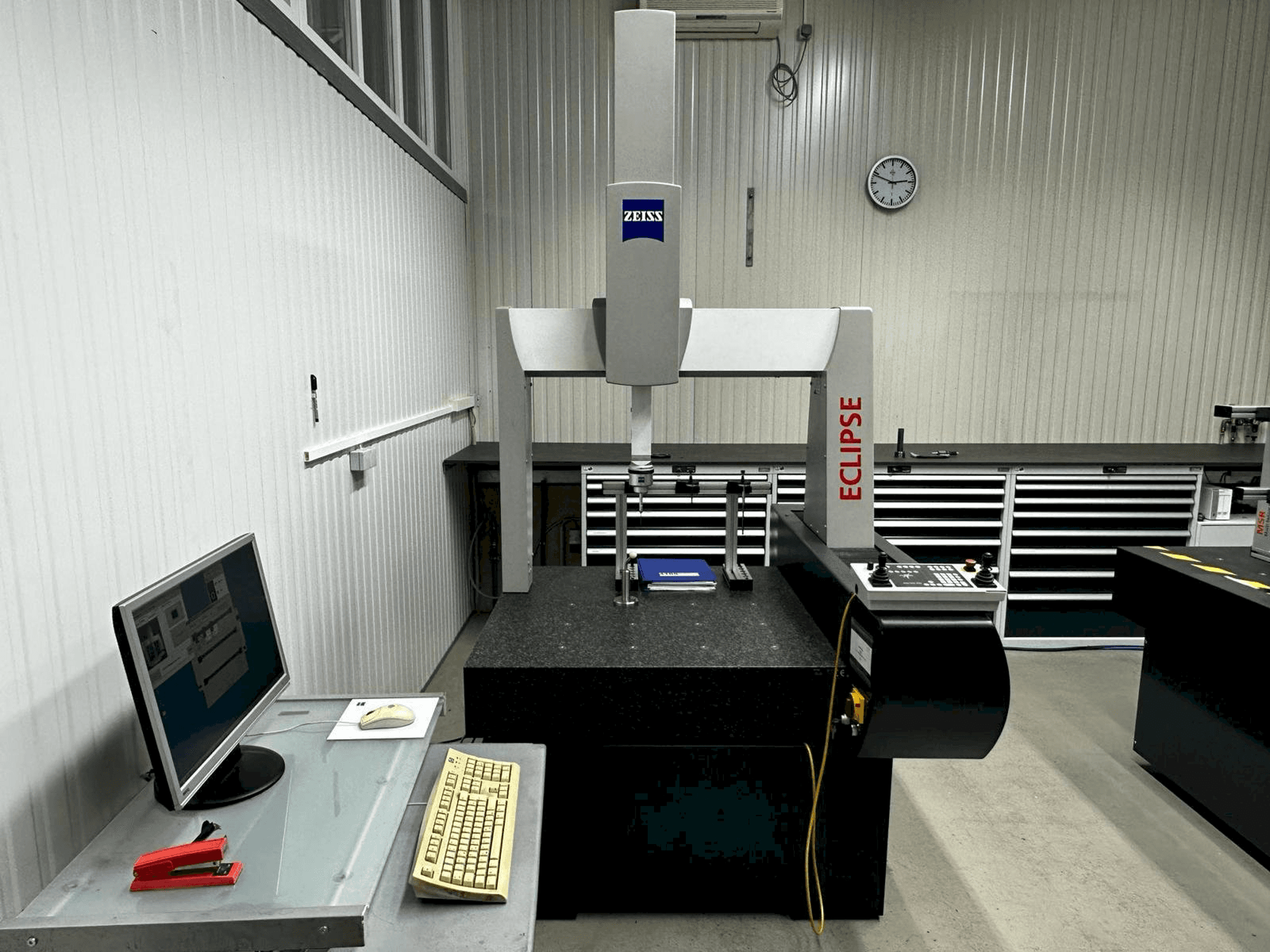

Front view of ZEISS Eclipse CNC 07/07/06 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

ZEISS Eclipse CNC 07/07/06

Photo Gallery

ZEISS - Eclipse CNC 07/07/06DE-MEA-ZEI-2002-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Zeiss Eclipse CNC 07/07/06 Measuring machine

This Zeiss Eclipse CNC 07/07/06 Measuring machine was made in 2002 in Germany. It is equipped with a ZEISS U-SOFT Plus, Version 9.05, control.

Overview

brand: ZEISS
year: 2002
MODEL: Eclipse CNC 07/07/06
application type: Measuring
Location: Germany
machine type: Coordinate Measuring Machine (CMM)
control unit brand: ZEISS

Technical Information - ZEISS Eclipse CNC 07/07/06

Control Unit

Brand: ZEISS
Model: U-SOFT Plus
Release: 9.05

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 580 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Measuring range: x=700mm, y=700mm, z- 580mm
- - Measuring uncertainty according to vdinde 2617: u1-(2. 4+l/250)um,u3- (2. 9+l/250)um,v2-2. 2um length measuring uncertainty according to iso 10360-2: e -(2. 9 +l/250) um, r3 - 3. 3um
- - Device features
- - Gantry measuring device in ceramic technology
- - Integrated vibration damping
- - Microcomputer control
- - Reference stylus - incl. Basic software package
- - Acceptance documents
- - Operating instructions sensor technology determination standard ball
- - Kd = 52 mm
Qualitative Machine Benefits:
- - Max. Form and dimensional deviation: 0. 0004 mm
- - Probe change magazine 3/280/600 st 3 positions,
- - H=280 mm, l-600 m torque, max. 0. 5 nm repeat accuracy of position #1" duration for 90° rotation <3s repeat accuracy for probe #1" change
- - Ceramic
- - Measuring head replaced 2 years ago (costs 5,500€)
- - Cmm-os 2. 04. 06 / u-soft solid – releas 01- z

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
