- ➤ Used +GF+ Agie Charmilles CUT E 350 | Wire EDM For Sale

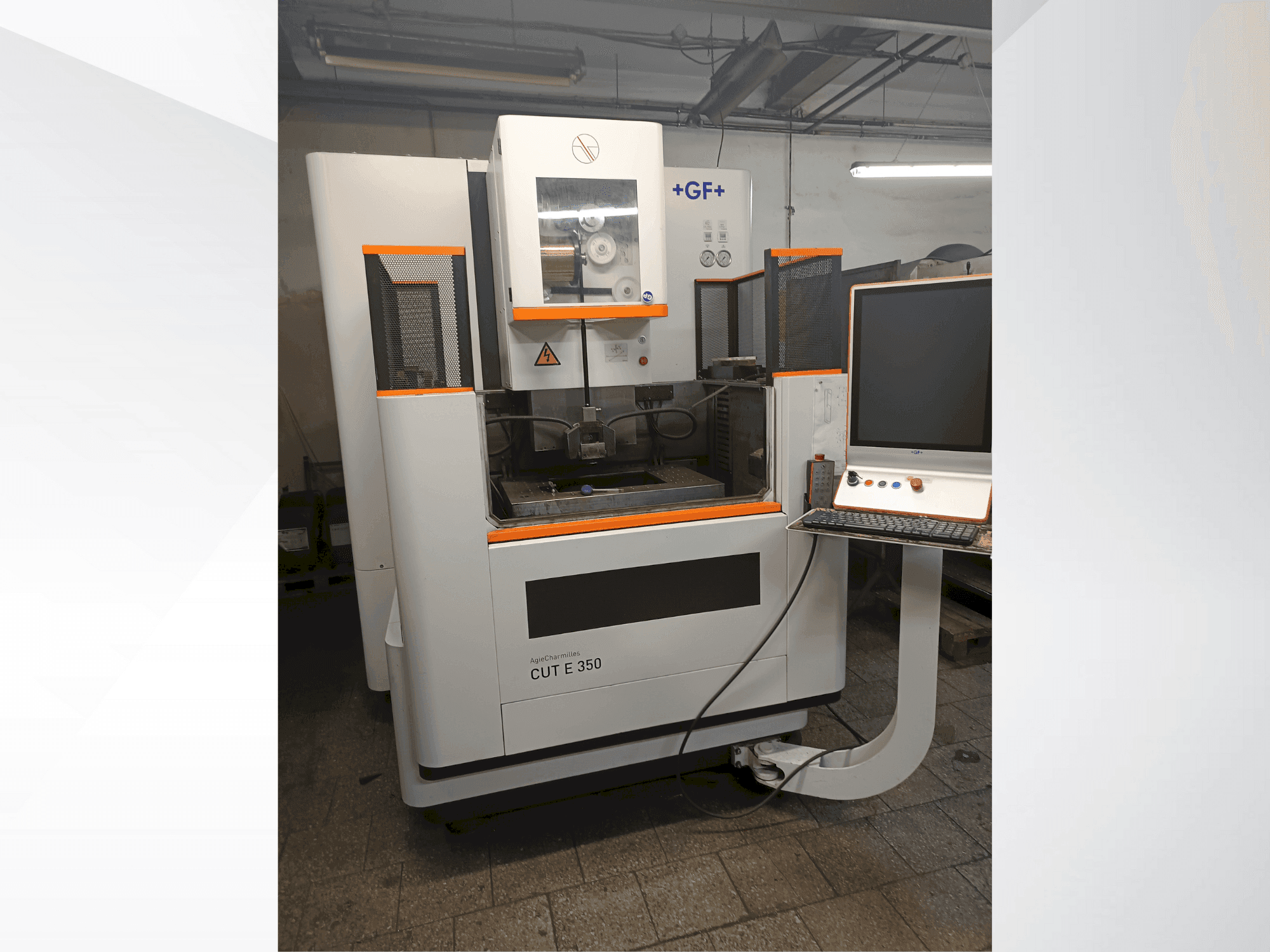

This 5-axis +GF+ Agie Charmilles CUT E 350 was manufactured in 2020, featuring a work area of 820 × 680 × 250 mm and a maximum workpiece weight of 400 kg. It supports a cutting speed of 0 – 3 m/min and includes an Integrated Collision Protection System. If you are looking to get high quality wire EDM capabilities consider the +GF+ Agie Charmilles CUT E 350 machine we have for sale. Contact us for more information.
Overview
- brand: +GF+
- year: 2020
- MODEL: Agie Charmilles CUT E 350
- application type: EDM
- Location: Poland
- machine type: Wire EDM Machine
Technical Information - +GF+ Agie Charmilles CUT E 350
Movement
- X-AXIS Movement: 350 MM
- Y-AXIS Movement: 250 MM
- Z-AXIS Movement: 250 MM
Additional Information
- Technical Machine Benefits:
- - Maximum workpiece dimensions (l×w×h): 820 × 680 × 250 mm / maximum workpiece weight: 400 kg
- - Travel (u, v): ±45 mm
- - Max. Wire inclination angle: ±30° / 50 mm
- - Measurement resolution (x, y, u, v, z): 0. 1 µm
- - Cutting speed (xyz): 0 – 3 m/min
- - Integrated collision protection system (icp): yes (x, y, z)
- - Dielectric fluid level (min. / max. ): 0 / 280 mm / required pressure: 6. 5 – 8 bar / minimum flow rate: 150 l/min
- - Power on :13142h / cutting time: 5225h
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
