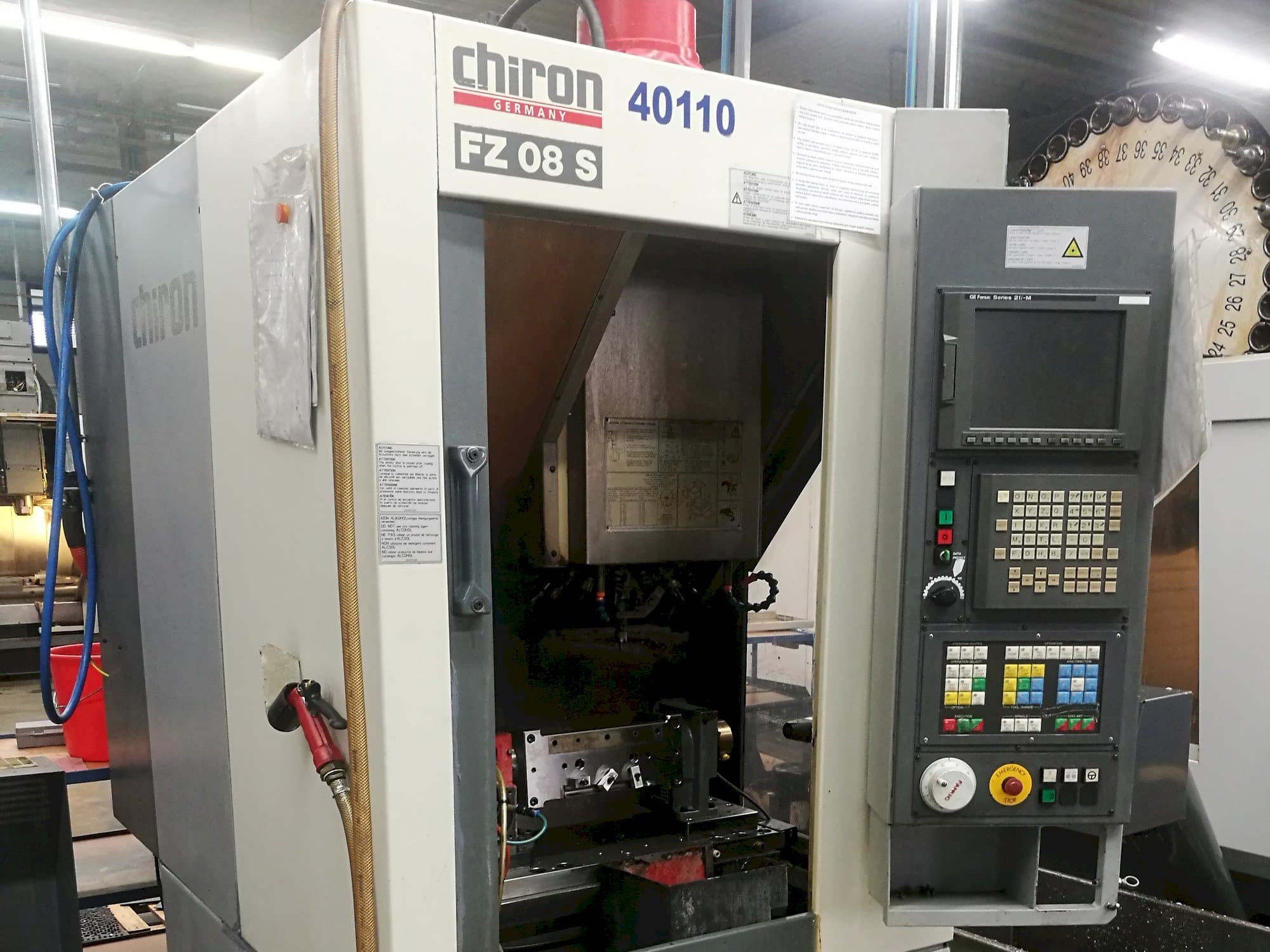

CHIRON FZ08S Vertical Machining Center

This CHIRON FZ08S Vertical Machining Center was made in 1999 in Germany and has been operative for 43000 hours. Equipped with a FANUC 21 iM Control unit, this machine can work with a spindle speed range up to 10500 rpm. Must be noted that it has a malfunction on the rotary unit Peiseler (4th axis), but machine can work normally with 3 axis.

Overview

brand: CHIRON
year: 1999
MODEL: FZ08S
production hours: 43000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - CHIRON FZ08S

General Data

Measurements width: 1000 mm
Measurements depth: 2000 mm
Measurements height: 2350 mm
Machine weight: 1820 kg

Control Unit

Model: 21 iM
CNC main language: German
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 10500 rpm 1/MIN

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 425 mm
B-AXIS Movement: 360° MM

Table

Outer length: 620 mm
Outer width: 260 mm

Tools

Slots in storage: 12
Max tool diameter: 63 mm
Max tool length: 160 mm
Type of tool holder: HSK32

Media

Main electronic connection: 380 V
Power consumption: 19 kVA

Additional Information

Machine Benefits

Qualitative Machine Benefits

Regulary maintained

Technical Machine Benefits

4 axis rotary unit (with malfunction)
Small space required
Fast spindle

Machine History

Industries

Medical industry

End product

Medical instruments parts

Material type

Aluminium

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
