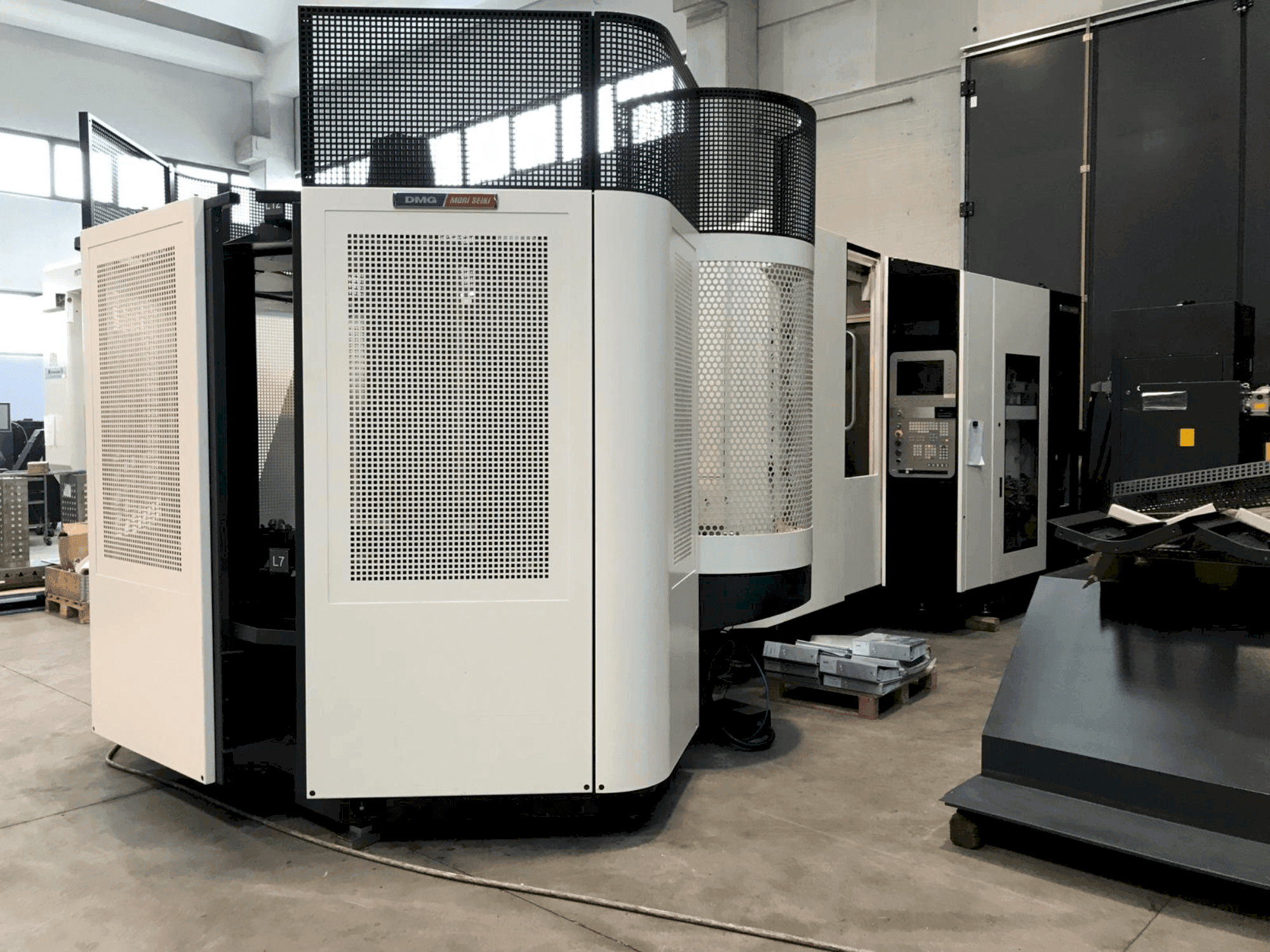

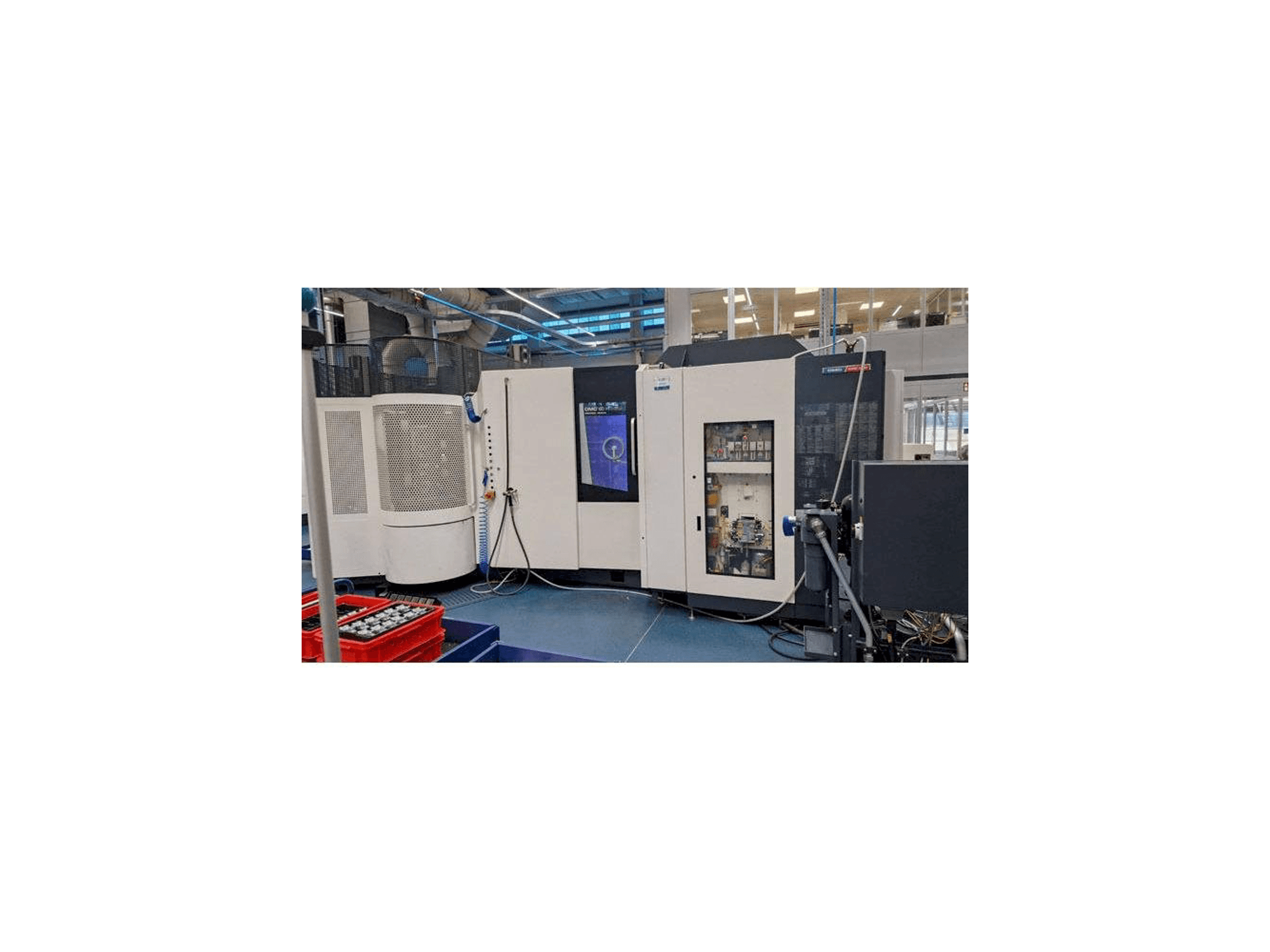

DMG DECKEL MAHO DMC 60H Linear Horizontal Machining center

This DMG DMC 60H Linear Horizontal Machining center was manufactured in the year 2013 and has 46048 production hours. It is equipped with a Siemens 840 D control unit and has 3 axis. The machine has a spindle speed of 18000 rpm. See original delivery note as PDF (German) attached to see all technical positions.

Overview

brand: DMG
year: 2013
MODEL: DECKEL MAHO DMC 60H Linear
production hours: 46048
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - DMG DECKEL MAHO DMC 60H Linear

Control Unit

Brand: SIEMENS
Model: 840D
CNC main language: German
CNC language customizable: Yes

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 20 kW
Tool taper: HSK-A63
Number of axis: 4

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 850 mm

Workpiece

Workpiece weight: 600 Kg

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Number of stations: 5
Slots in storage: 303
Type of tool holder: HSK-A63

Additional Information

Additional equipment

Scraper belt chip conveyor with coolant system 980 liter, paper belt filter, discharge height 950 mm, width 380 mm, IKZ 80 bar / 14 l/min through spindle center (AD), pressure infinitely programmable, selectable via NC program, Roof flushing of the working area 180 l/min via flushing nozzles with a ripple valve
Rotating viewing window / work area door
Flushing gun with pump
Double gripper
Wheel magazine
NC rotary table Ø 630 mm
3D path control

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
