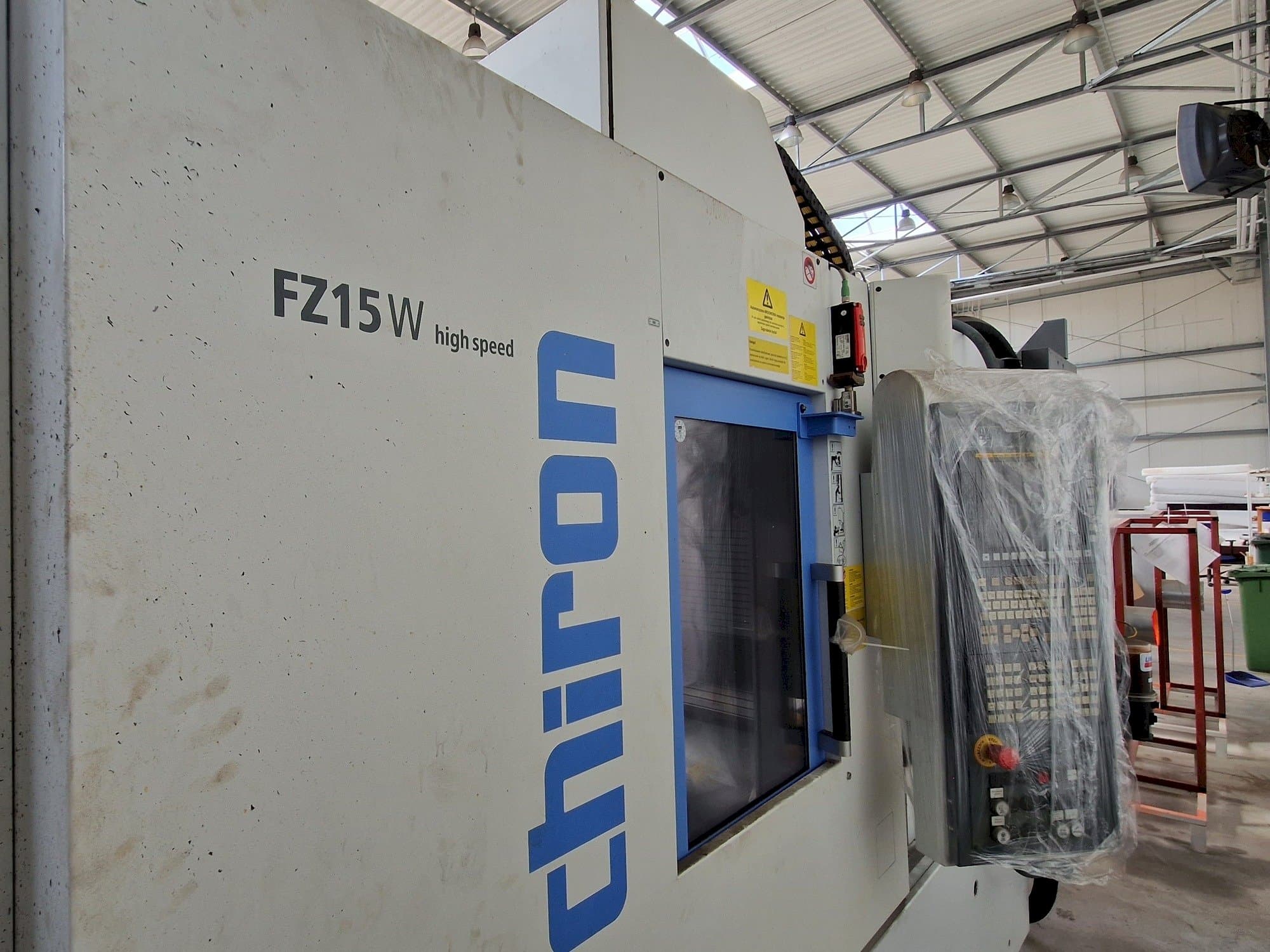

CHIRON FZ15 W HS Vertical Machining Center

This CHIRON FZ15 W HS Vertical Machining Center was manufactured in the year 2019 in Germany and has only 28 working hours. It is equipped with a FANUC 31i-B5 control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.

Overview

brand: CHIRON
year: 2019
MODEL: FZ15 W HS
production hours: 28
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - CHIRON FZ15 W HS

General Data

Machine weight: 8000 kg

Control Unit

Model: 31i-B5
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 15 kw
Number of axis: 5

Movement

X-AXIS Movement: 550 mm
X-AXIS Rapid traverse: 75 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 75 m/min
Z-AXIS Movement: 425 mm
Z-AXIS Rapid traverse: 75 m/min

Table

Outer length: 2660 mm
Outer width: 400 mm
Max distance between vertical spindle and table: 240 mm
Table load: 300 kg

Tools

Number of stations: 20
Max tool diameter: 175 mm
Max tool length: 300 mm
Type of tool holder: HSK-A 63 DIN 69893

Media

Main electronic connection: 400V / 50Hz
Power consumption: 16 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece changing device: 0 / 180°
- - Single spindle headstock
- - Spindle torque max: 95 nm
- - 5 axis path control / 10. 4” color screen
- - Single lamp for 3 signals
- - Flashing gun
- - Oil free maintenance unit
- - Cooling system
- - Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
