➤ Used DECKEL FP5CCT For Sale | gindumac.com

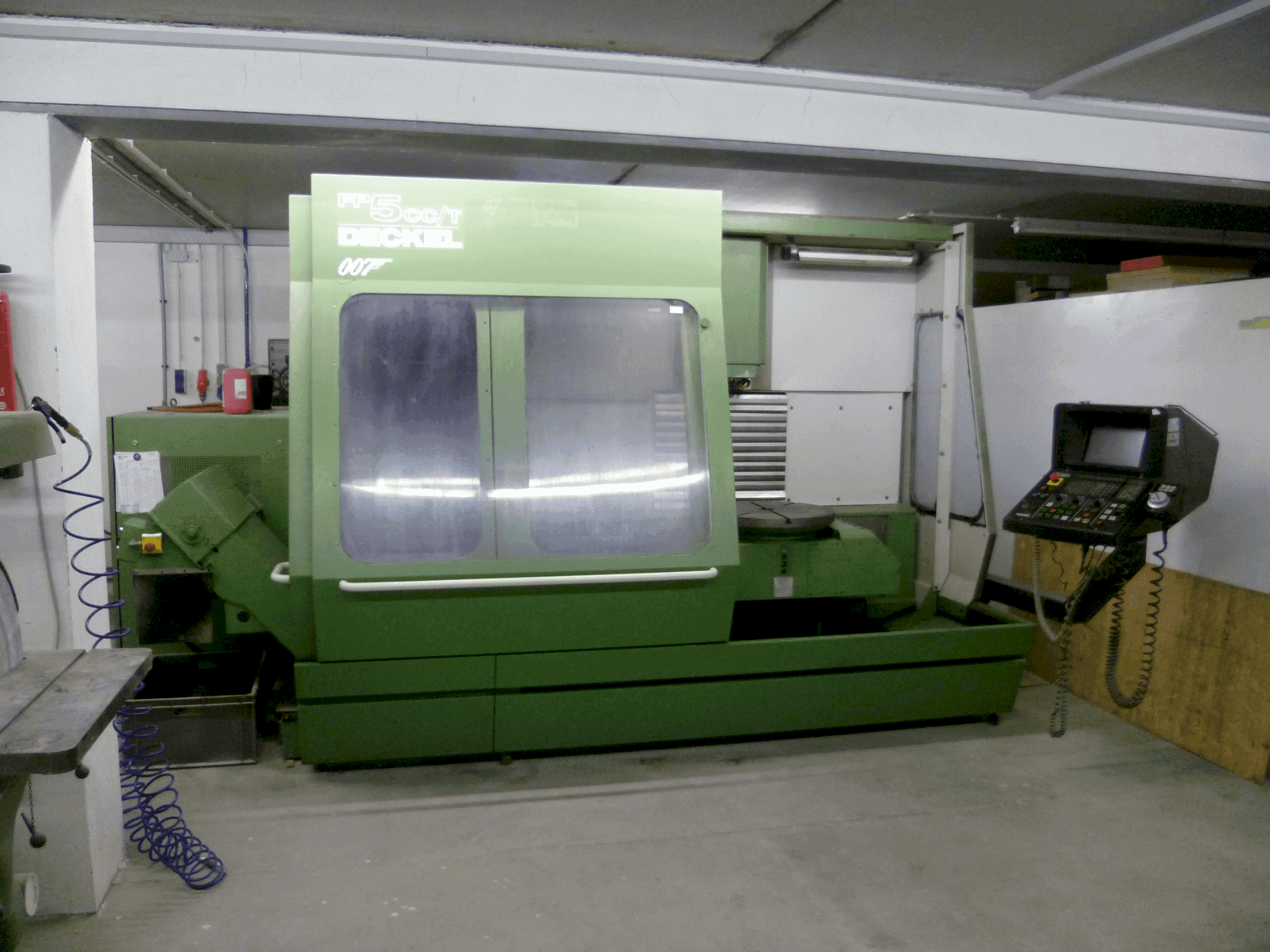

This 5-axis DECKEL FP5CCT vertical machining center was manufactured in 1992. It features a spindle motor with 12 kW power and speeds up to 6300 min-1. The universal table has a 630mm diameter and tilts 15 degrees downwards and 45 degrees upwards. The C-axis offers full 360-degree rotation. Ideal for complex machining tasks, the DECKEL FP5CCT machine we have for sale can handle a table load of up to 300 kg. Contact us for further details.

Overview

brand: DECKEL
year: 1992
MODEL: FP5CCT
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - DECKEL FP5CCT

General Data

Machine weight: 5750 KG

Main drive

Spindle speed range: 6300 1/MIN
Spindle motor power: 12 kw
Tool taper: SK40
Number of axis: 5

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 550 mm
AXIS 1 Movement: 360 °

Table

Table load: 300 kg

Media

Chip conveyor: Yes

Additional Equipment

- Electric handwheel
- Normal coolant system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Universal table diameter: 630 mm
- - Tilting range: 15 degrees downwards, 45 degrees upwards
- - Geometry and function overhauled, universal table with tilting range, c-axis 360 degrees
- - Feed: 0-10000 mm/min
Qualitative Machine Benefits:
- - Painted in ral green (cover green)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
