DMG CTX 310

Photo Gallery

DMG - CTX 310PL-TUR-DMG-2009-00006

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

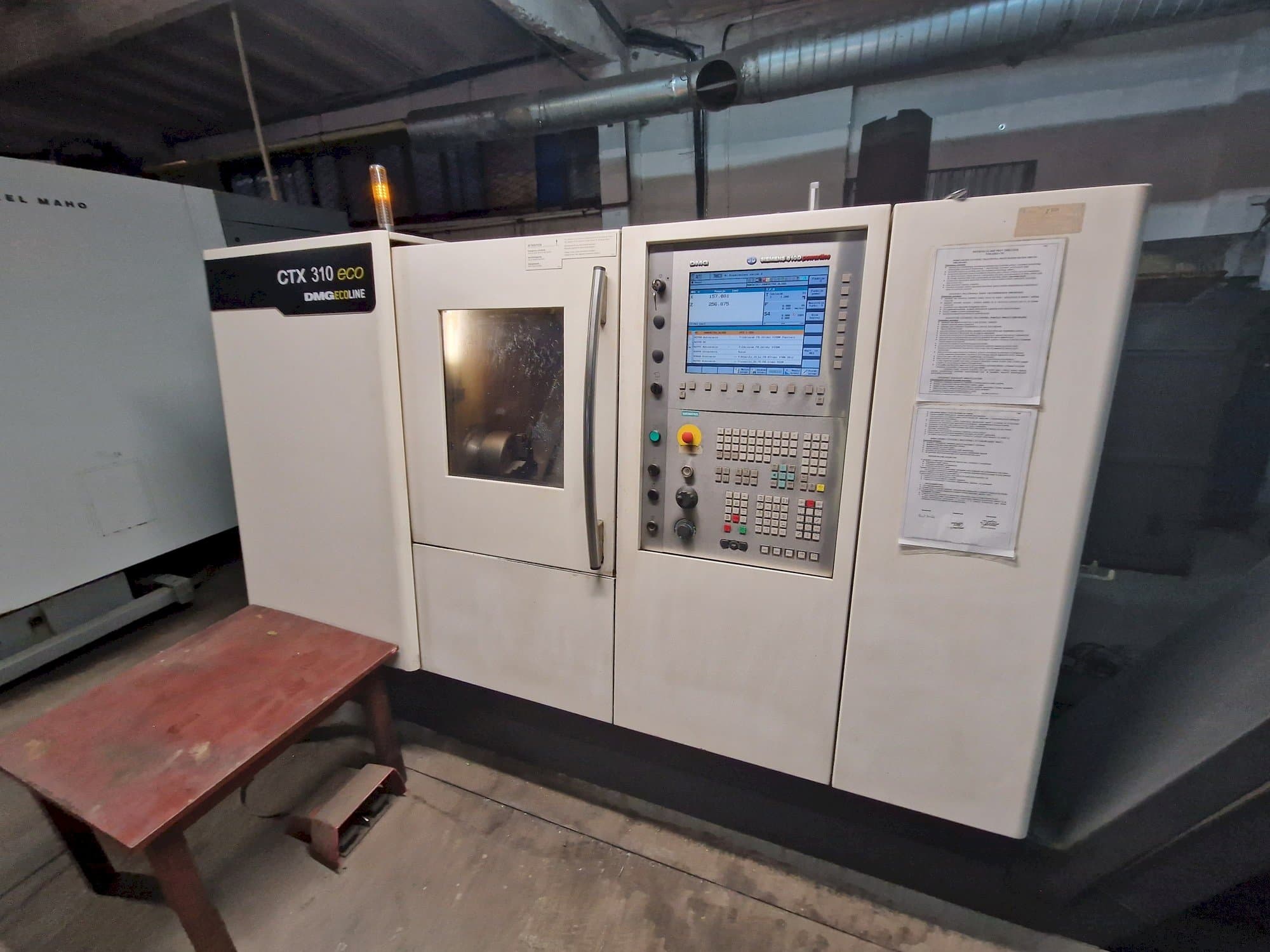

DMG CTX 310 lathe

This DMG CTX 310 lathe was made in Poland in the year 2009. It is equipped with a DMG panel with a Siemens 810D powerline control unit. The machine has a spindle speed of 5000 rpm.

Overview

brand: DMG
year: 2009
MODEL: CTX 310
production hours: 0
application type: Turning
Location: Poland
machine type: Turn-Mill Centre

Technical Information - DMG CTX 310

Control Unit

Model: Siemens 810D

Main drive

Spindle speed range: 5000 1/MIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing diameter: 330 mm
- - Max. Swing diameter above cross-guideway: 260 mm
- - Max. Turning diameter: 200 mm
- - Cross travel (x): 160 mm
- - Longitudinal travel (z): 450 mm
- - Bar capacity: 51 mm
- - Spindle diameter in the front bearing: 100 mm
- - Chucks: 210 mm
- - Max. Torque (40% / 100% dc): 166. 5(2) / 112(2) nm
- - Power output (40% / 100% dc): 16. 5(2) / 11(2) kw (ac)
Qualitative Machine Benefits:
- - Number of tool stations: 12
- - Shaft diameter (according to din 69880): 30 mm
- - Power output (40% dc) at 4000 rpm: 8. 4(2) kw
- - Max. Torque (40% dc): 20(2) nm
- - Max. Rotational speed: 4,500 rpm
- - Tailstock
- - Machine weight with a chip conveyor: 3,800 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
