Pinnacle - LH 500BDE-MIL-PIN-2019-00001

Name: Pinnacle LH 500B
Brand: Pinnacle
SKU: DE-MIL-PIN-2019-00001
Price: 49000 EUR
Availability: InStock

49,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Pinnacle LH 500B For Sale | gindumac.com

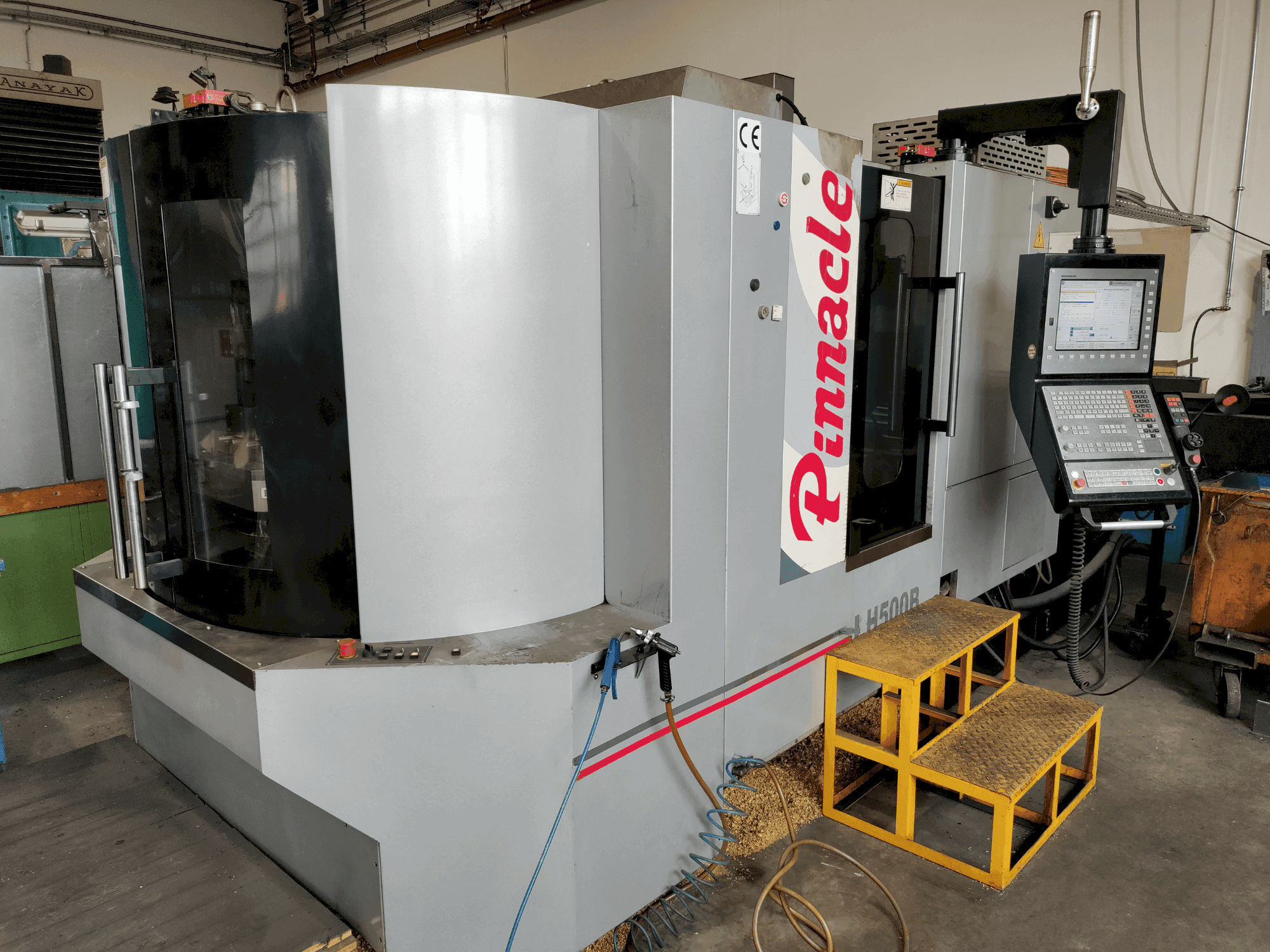

This 4-axis Pinnacle LH 500B CNC Horizontal Machining Center was manufactured in 2019. It offers advanced capabilities for precise and efficient milling operations. Ideal for a variety of machining tasks, this machine represents a significant asset for any production environment. Consider the opportunity to buy this Pinnacle LH 500B CNC Horizontal Machining Center. Contact us for more information.

Overview

brand: Pinnacle
year: 2019
MODEL: LH 500B
production hours: 6147
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Pinnacle LH 500B

General Data

Measurements width: 5445 mm
Measurements depth: 3055 mm
Measurements height: 2200 mm
Machine weight: 6700 kg

Control Unit

Brand: HEIDENHAIN
Model: TNC 640

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 650 mm
X-AXIS Feed Force: 10000 mm/min
X-AXIS Rapid traverse: 30000 mm/min
Y-AXIS Movement: 560 mm
Y-AXIS Feed Force: 10000 mm/min
Y-AXIS Rapid traverse: 30000 mm/min
Z-AXIS Movement: 560 mm
Z-AXIS Feed Force: 10000 mm/min
Z-AXIS Rapid traverse: 24000 mm/min

Workpiece

Workpiece weight: 400 kg

Media

Chip conveyor: Yes

Additional Equipment

- Automatic pallet changer
- Cooling water treatment system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Fully automatic tool changer with 40 places
- - Table size: 500 x 500 mm
- - Max workpiece dimensions: Ø 630 x 600 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
