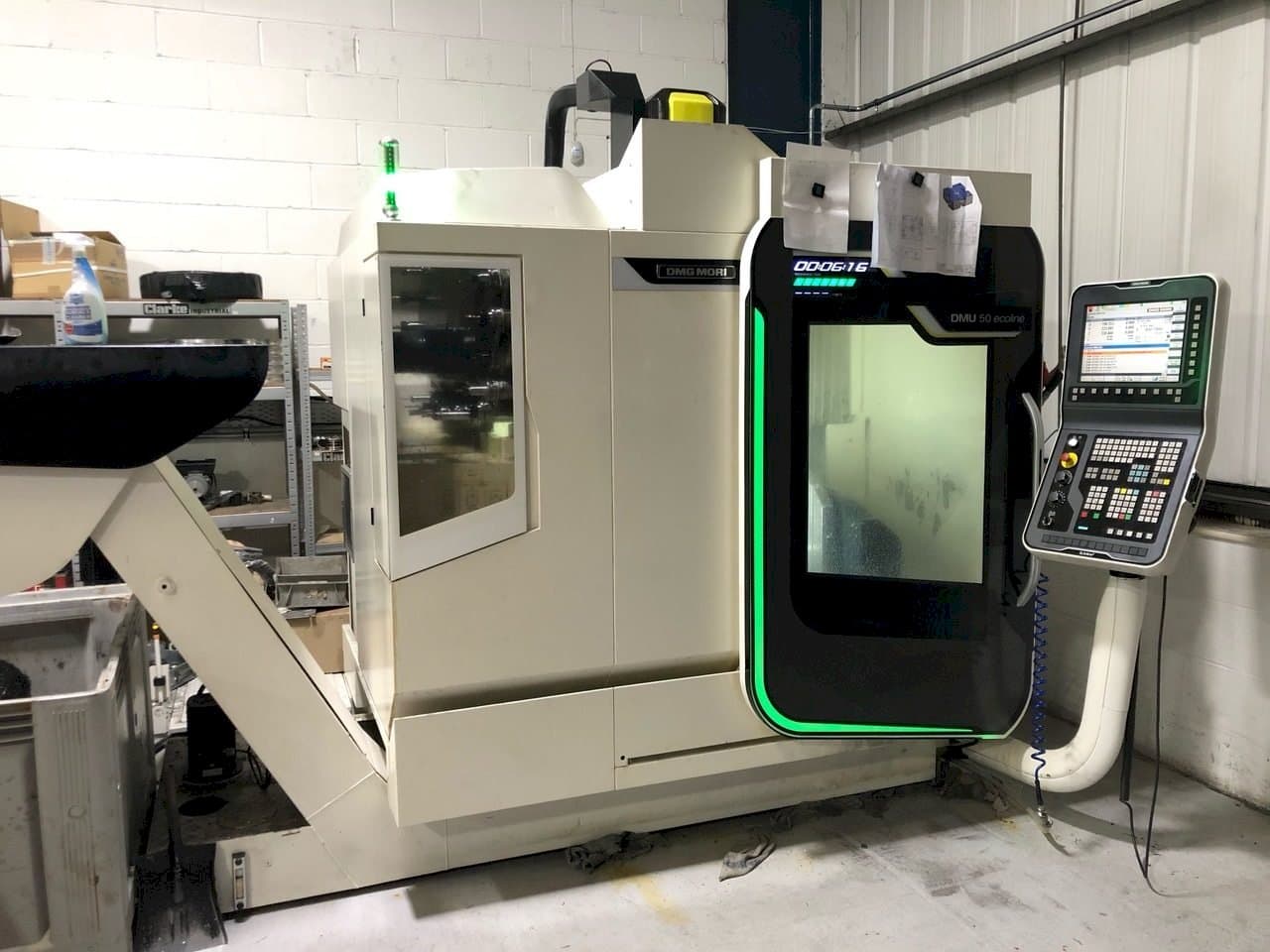

Front view of DMG MORI DMU 50 ecoline machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMU 50 ecoline

Photo Gallery

DMG MORI - DMU 50 ecolineGB-MIL-DMG-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI DMU 50 ecoline Vertical Machining Center

This DMG MORI DMU 50 ecoline Vertical Machining Center was made in 2014 in Germany. It is operated through a Siemens 840D control unit. This 5 axis machine can works with a spindle speed up to 12000 rpm and a table dimensions of 630 x 500 mm. It includes swarf conveyor, interlocked guards and a low volt light.

Overview

brand: DMG MORI
year: 2014
MODEL: DMU 50 ecoline
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DMG MORI DMU 50 ecoline

General Data

Measurements width: 4300 mm
Measurements depth: 2200 mm
Measurements height: 2615 mm
Machine weight: 4300 KG

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 13/9 kW

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece weight: 200 KG

Table

Outer length: 630 mm
Outer width: 500 mm

Tools

Slots in storage: 30
Max weight: 6 KG
Max tool length: 300 mm
Type of tool holder: 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B axis movement: -5 / +110 degrees
- - C axis: 360 degrees (0. 001 degree increment)
- - Number of axis controlled: 3+2
- - Rapid feedrates: 24 m/min
- - Tool change time (chip to chip): 8 sec.
- - Swarf conveyor
- - Tool setter
- - Interloked guards
- - Low volt light
- - Coolant
Qualitative Machine Benefits:
- - Includes machine manual
- - Simultaneous axis operation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
