DOOSAN HP 6300

Photo Gallery

DOOSAN - HP 6300IT-MIL-DOO-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN HP 6300 - Horizontal Machining Center

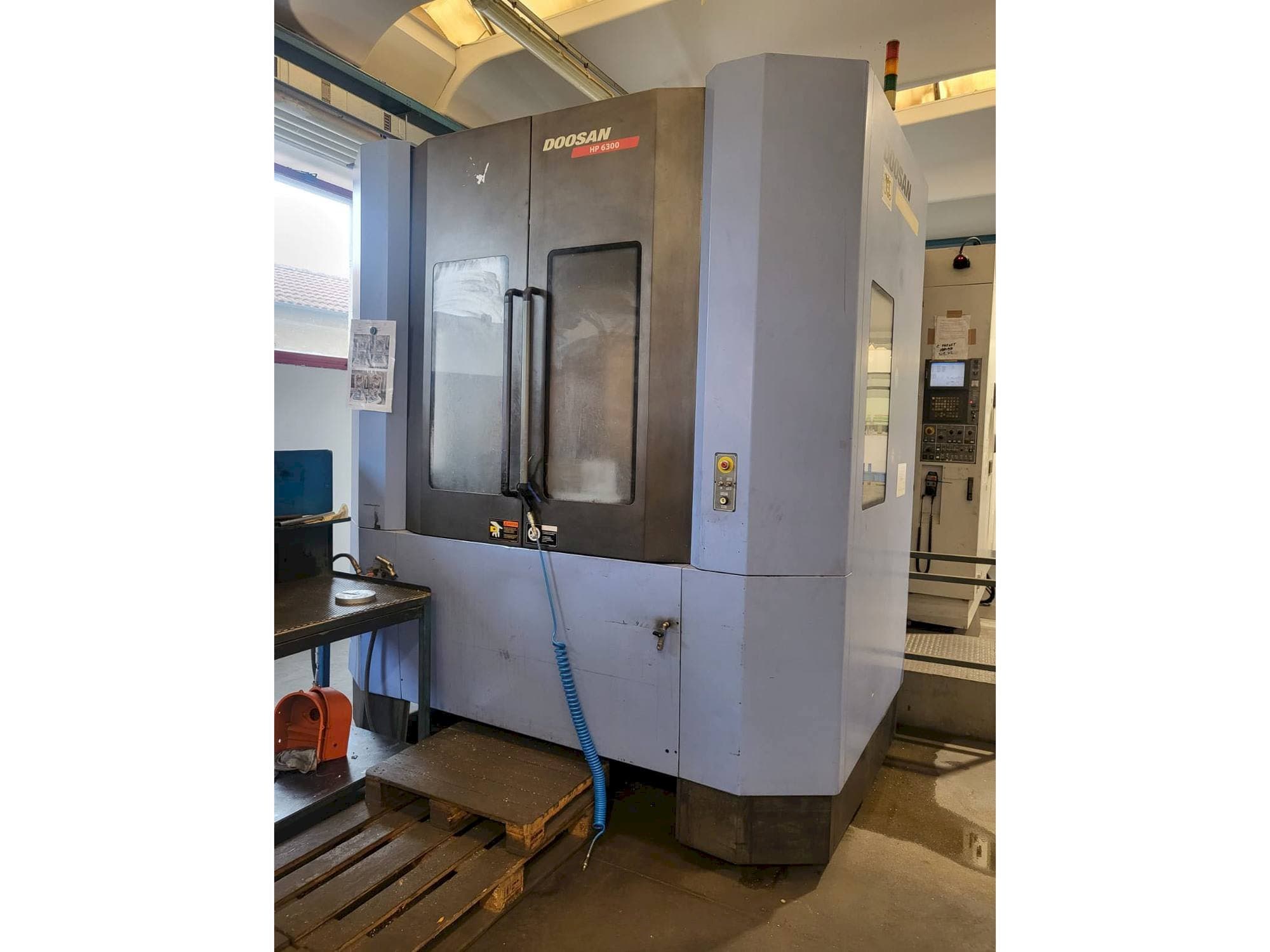

This DOOSAN HP 6300 Horizontal Machining center was made in 2007 in Korea. It is equipped with a Fanuc Series 18i-MB control unit.

Overview

brand: DOOSAN
year: 2007
MODEL: HP 6300
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN HP 6300

General Data

Machine weight: 12000 kg

Control Unit

Model: SERIES 18i-MB
Brand: FANUC

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 48 m/min
Y-AXIS Movement: 850 mm
Y-AXIS Rapid traverse: 48 m/min
Z-AXIS Movement: 850 mm
Z-AXIS Rapid traverse: 48 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working feed rates: 1:24000 mm/min
- - Ball screw diameter and pitch: diam. 50xp16 mm
- - Positioning accuracy mm +/- 0. 005 / full stroke
- - Repeatability mm +/- 0. 002
- - X,y,z axis measuring system: incremental encoder
- - B-axis measuring system: absolute encoder
- - Spindle nose distance - pallet centre mm 150-900h
- - Spindle axis distance - pallet surface: 75-925 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
