DOOSAN HP5100

Photo Gallery

DOOSAN - HP5100IT-MIL-DOO-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

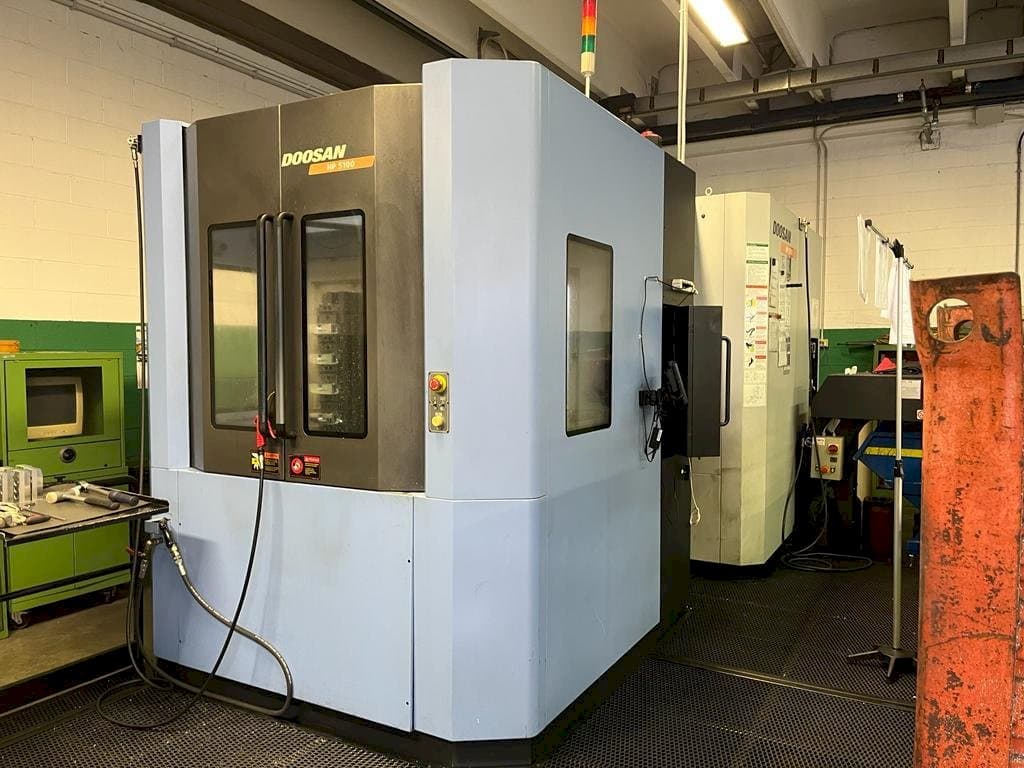

Doosan HP5100 Horizontal Machine Center

This Doosan HP5100 Horizontal Machine Center was built in the year 2008. It is equipped with a FANUC control unit. The machine has a spindle speed of 1 - 30000 rpm.

Overview

brand: DOOSAN
year: 2008
MODEL: HP5100
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN HP5100

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 1 - 30000 1/MIN

Movement

X-AXIS Movement: 800 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 700 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Rapid traverse: 60 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The axis motion system consists of a series of motors, ball screws, linear guides, etc. The axis guides are equipped with roller lm guides for high speed and high productivity
- - L axis: 750 mm
- - Work progress: 1/30000 mm/min
- - Ball screw diameter and pitch: ø40 x p20
- - Positioning precision: ±0. 005 / entire stroke
- - Repeatability: ±0. 002 mm
- - Measuring system: x, y, z axes; incremental encoder - b axis: absolute encoder mm/min
- - Distance spindle nose - pallet center: 150 - 900 mm
- - Distance between spindle axis and pallet surface: 50 - 750 mm
- - X axis: a30/3000i, y axis: a30b/3000i, z axis: a30/3000i, b axis (1st indexing): a12/3000is, b axis (rotation 0. 0019): a12/3000is, x axis: 7 kw, y axis: 7 kw, z axis: 7 kw, b axis (1st indexing): 2. 7 kw, b axis (0. 001° rotation): 2. 7 kw

Extra information

- You can change the engine type

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
