Dugard HD 2210B

Photo Gallery

Dugard - HD 2210BAE-MIL-DUG-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

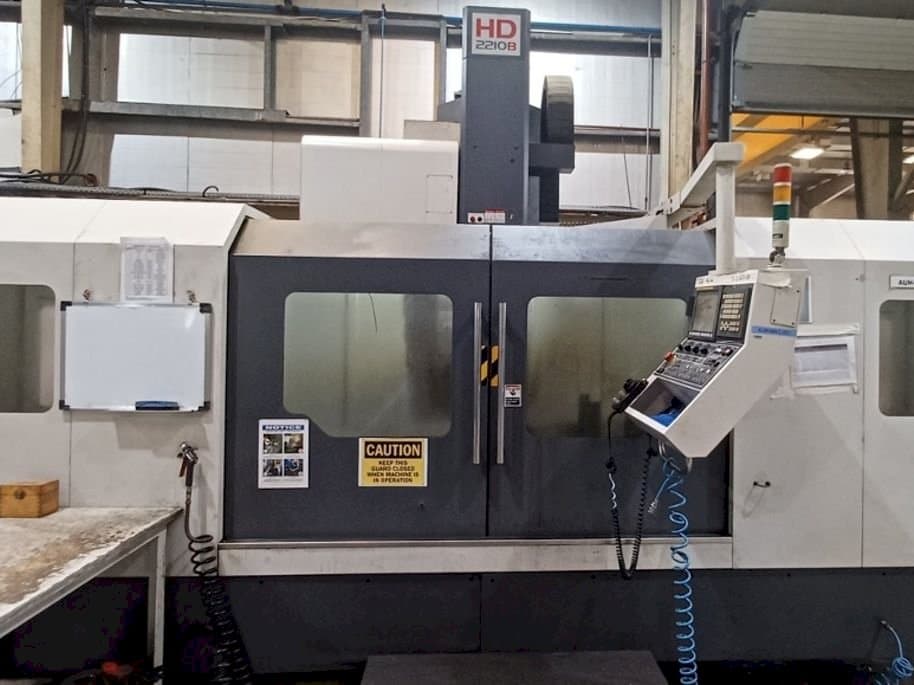

Dugard HD 2210B Vertical Machining center

This Dugard HD 2210B Vertical Machining center was manufactured in Taiwan in the year 2014. It has been on for 36018 hours of which 7534 are cutting hours. This 3 axis machine works with a spindle speed range between 20 - 6000 rpm. Includes a bi-directional twin arm type auto tool with 32 stations.

Overview

brand: Dugard
year: 2014
MODEL: HD 2210B
production hours: 7534
application type: Milling
Location: United Arab Emirates
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Dugard HD 2210B

Main drive

Spindle speed range: 20 - 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 2200 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 900 mm

Table

Outer length: 2200 mm
Outer width: 1000 mm
TSlots size: 22 x 7 x 150 mm
Min distance between vertical spindle and table: 170 mm
Max distance between vertical spindle and table: 1070 mm
Table load: 3000 KG

Tools

Max weight: 15 KG
Max tool diameter: 110 mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle centre line to column: 1060 mm
- - Max feed rate fanuc: 10 m/min
- - Spindle taper: bbt/cat 50
- - Bi-directional twin arm type auto tool: 32 stations

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
