DYE FPF-2-C-NC

Photo Gallery

DYE - FPF-2-C-NCES-MIL-DYE-1986-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

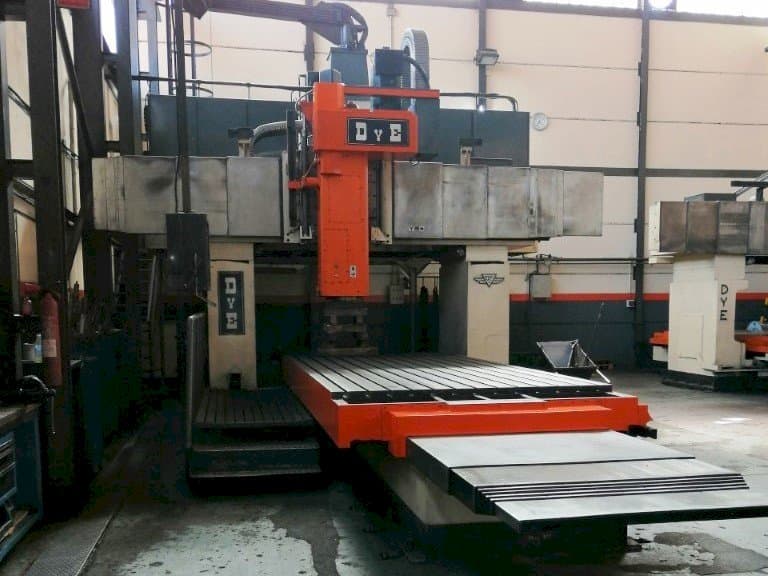

DYE FPF-2-C-NC Milling machine

This DYE FPF-2-C-NC Milling machine was built in 1986 and has been retrofitted in 1998. It operated through a Heidenhain TNC-155 control unit. This 3 axis machine has a spindle speed up to 2000 rpm, a table dimension of 4500 x 2000 mm and a double chip conveyor. Always good maintenance.

Overview

brand: DYE
year: 1986
MODEL: FPF-2-C-NC
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DYE FPF-2-C-NC

General Data

Measurements width: 13000 mm
Measurements depth: 5300 mm
Measurements height: 5600 mm
Machine weight: 44000 KG

Control Unit

Model: TNC-155
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN

Movement

X-AXIS Movement: 4500 mm
Y-AXIS Movement: 3000 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 24000 KG

Table

Outer length: 4500 mm
Outer width: 2000 mm

Tools

Type of tool holder: ISO 50

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between columns: 2650 mm
- - Max. Milling width: 2600 mm
- - Heidenhain lb-325 optical rulers, with ruler pitch of 100 μm
- - Double chip conveyor
- - Range of tools and accessories
Qualitative Machine Benefits:
- - Control unit from year 2011, updated in 2015
- - Retrofiting in the year 1998
- - Always good maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
