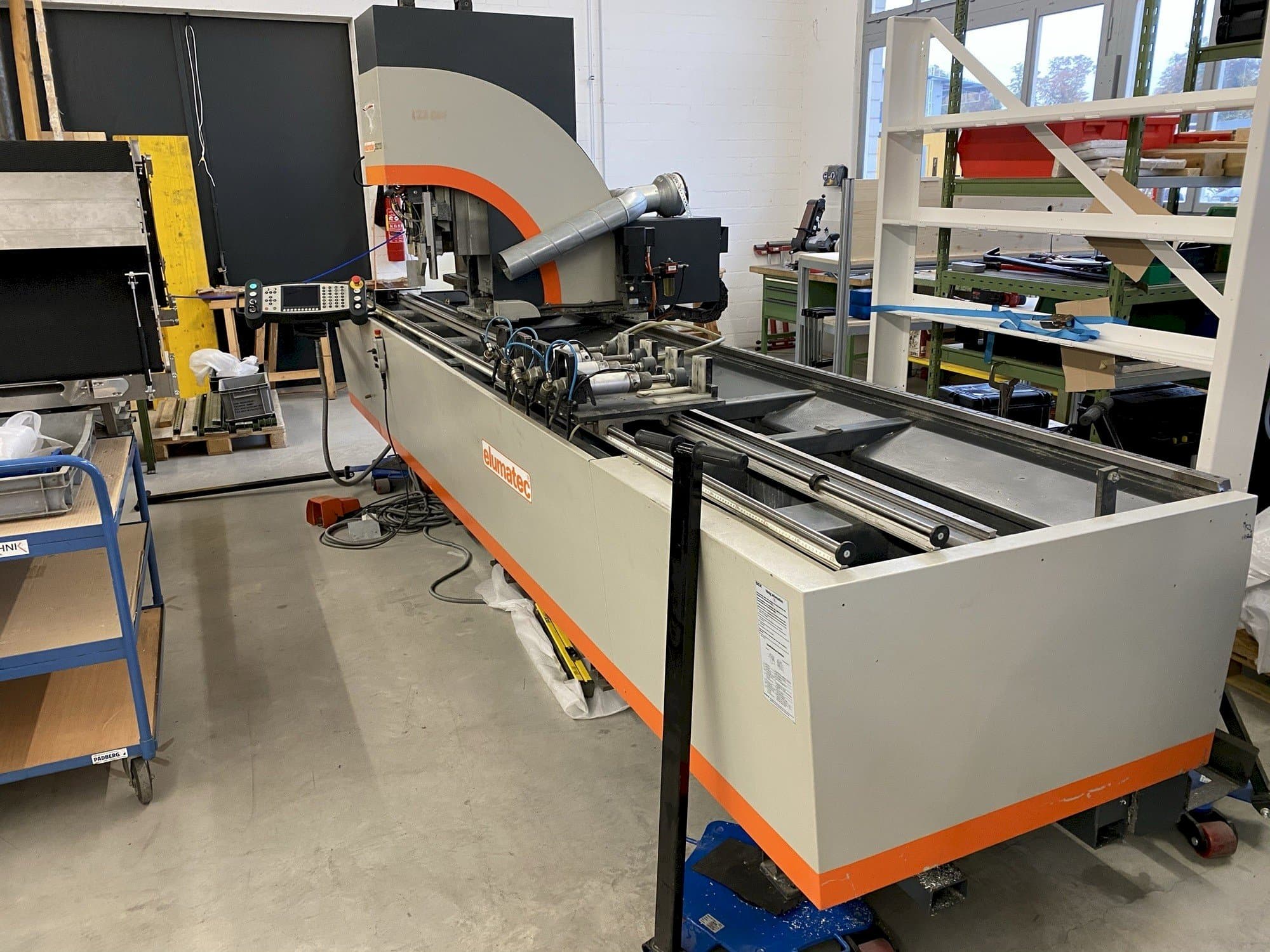

Front view of Elumatec SBZ 122/3 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Elumatec SBZ 122/3

Photo Gallery

Elumatec - SBZ 122/3CH-MIL-ELU-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Elumatec SBZ 122/3 Vertical Machining Center

This Elumatec SBZ 122/3 Vertical Machining Center was built in 2006 in Germany. This machine can work with a spindle speed up to 21000 rpm and a spindle power of 6 kW. Includes 3 pcs tool holders and 1 pcs drill chuck. Machine in very good condition.

Overview

brand: Elumatec
year: 2006
MODEL: SBZ 122/3
application type: Milling
Location: Switzerland
machine type: Vertical Machining Centre

Technical Information - Elumatec SBZ 122/3

General Data

Measurements width: 2400 mm
Measurements depth: 5100 mm
Measurements height: 2400 mm
Machine weight: 1700 kg

Main drive

Number of spindles: 1
Spindle speed range: 21000 1/MIN
Spindle motor power: 6 kW
Number of axis: 3

Movement

X-AXIS Movement: 3850 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 280 mm

Tools

Type of tool holder: HSK F63

Additional Information

Additional equipment

3 pcs tool holders
1 pcs drill chuck
Tool measuring device
Rotation angle head
Automatic tool changer with 4 tool storage places and storage place for rotary angle head
Automatic clamp traverse
Collision detection in program
Central lubrication
Safety device light barrier
Material stop

Machine Benefits

Qualitative Machine Benefits

Instruction manual
Machine fully functional

Technical Machine Benefits

Max. Processing lenght 3650 mm
Max. Machining lenght 3750 mm
Max. Cutter diameter 63 mm
Max. Disc cutter diameter 200 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
