Elumatec SBZ 130

Photo Gallery

Elumatec - SBZ 130AT-MIL-ELU-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Elumatec SBZ 130 | For Sale

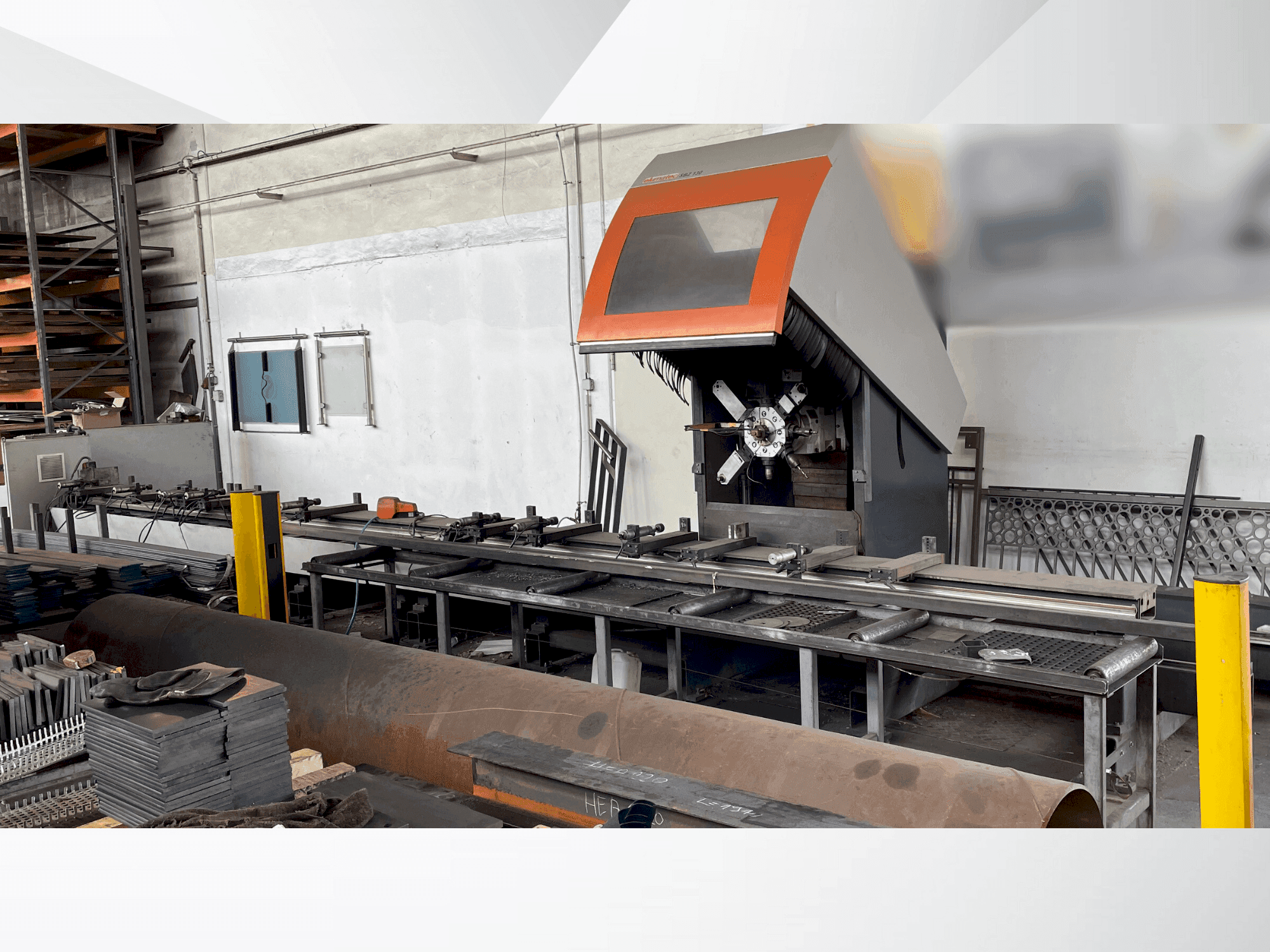

This 3-axis Elumatec SBZ 130 vertical machining centre was manufactured in 2001. It features an 8-fold turret head, three angular gears, and pendulum operation with two separate machining zones. The maximum machining length is 8,500 mm, and it includes a barcode scanner. Ideal for milling, drilling, and thread cutting operations. A great opportunity to buy this Elumatec SBZ 130 vertical machining centre. Contact us for further details regarding this vertical machining centre.

Overview

brand: Elumatec
year: 2001
MODEL: SBZ 130
application type: Milling
Location: Austria
machine type: Vertical Machining Centre

Technical Information - Elumatec SBZ 130

General Data

Measurements width: 11650 mm
Measurements depth: 2600 mm
Measurements height: 2600 mm
Machine weight: 6000 kg

Main drive

Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 8500 MM
Y-AXIS Movement: 485 MM
Z-AXIS Movement: 340 MM

Additional Equipment

- 8-fold turret head incl. tool holders and 3 angular gears
- Pendulum operation with 2 separate machining zones
- Workstation protection with laser scanner
- Barcode scanner

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Machining length: 8500 mm,
- - Operations: milling, drilling, thread cutting
- - Electrical connection: 400 v, 50 hz, 22 a
- - Compressed air connection: min. 5 bar, max. 8 bar

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
