Elumatec SBZ 130

Photo Gallery

Elumatec - SBZ 130GB-MIL-ELU-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

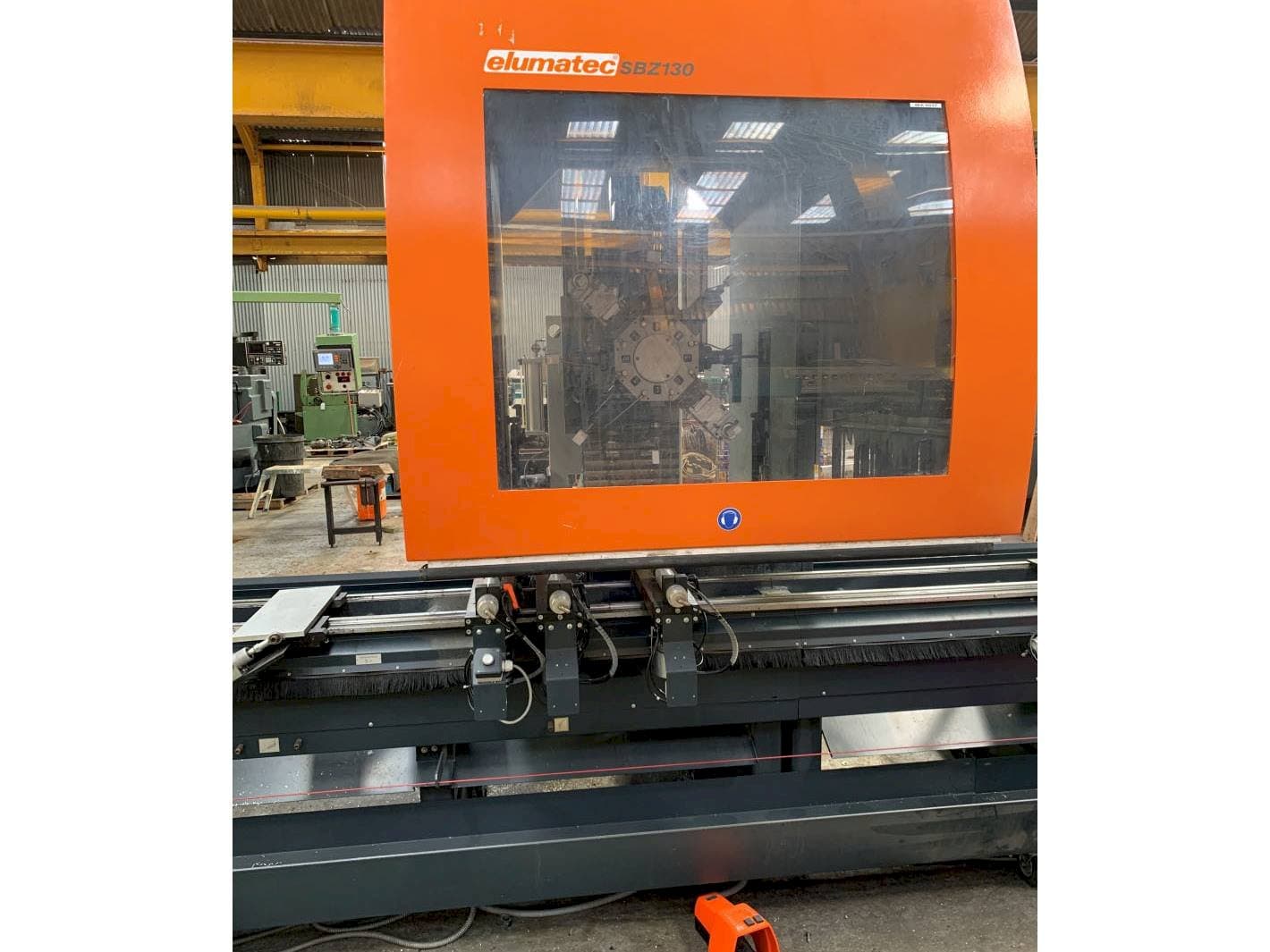

Elumatec SBZ 130 Vertical Machining Center

This Elumatec SBZ 130 Vertical Machining Center was made in the year 2005. It is equipped with an Elumatec control unit. The machine has a spindle speed of 6000 rpm.

Overview

brand: Elumatec
year: 2005
MODEL: SBZ 130
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre

Technical Information - Elumatec SBZ 130

General Data

Measurements width: 10350 mm
Measurements depth: 2600 mm
Measurements height: 2950 mm
Machine weight: 6000 kg

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 5.5 kw

Movement

X-AXIS Movement: 7200 mm
X-AXIS Rapid traverse: 0 – 60m/min
Y-AXIS Movement: 480 mm
Y-AXIS Rapid traverse: 0 – 30m/min
Z-AXIS Movement: 325 mm
Z-AXIS Rapid traverse: 0 – 30m/min

Media

Main electronic connection: 415v, 3ph, 50 Cycles

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle taper: bt30
- - Collet chuck: er32
- - Right angled collet chuck: s15
- - Tool change time: 1. 2 seconds
- - Maximum tool diameter: 80 mm
- - Max cutting disc diameter: 200 mm
- - 8 position turret
- - 9 pneumatic clamps
- - Swarf conveyor
- - 6 no straight tools
Qualitative Machine Benefits:
- - 2 no right-angled
- - Tools light guards
- - Light guards
- - Wandering hand control
- - 4 no foot valves
- - Manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
