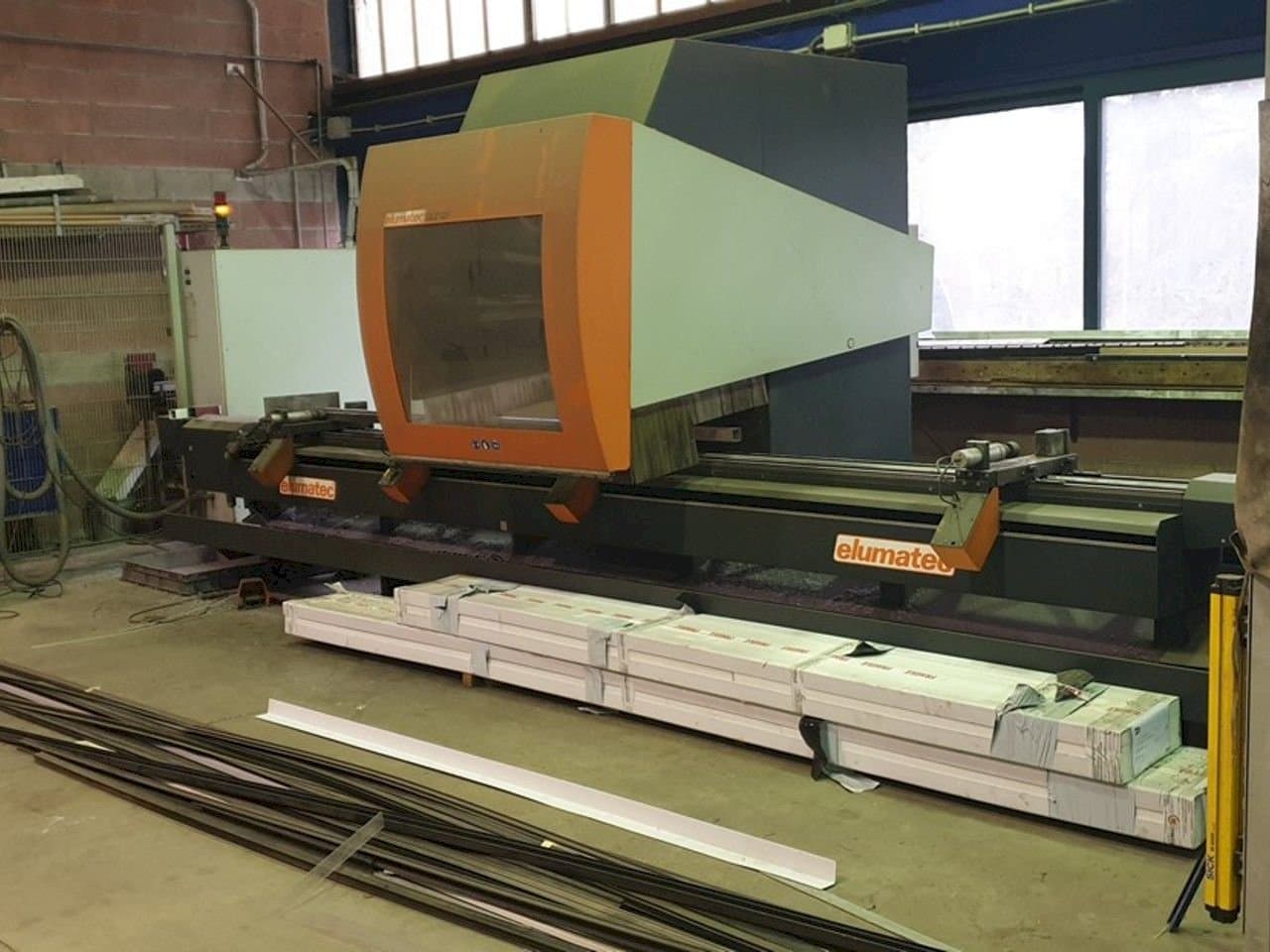

Elumatec SBZ 131 Universal Machining

This Elumatec SBZ 131 Universal Machining Center was built in 2011. It has been working for only 1200 hours. It is equipped with a control unit of the same brand. This machine can work with a spindle speed up to 6000 rpm. It comes with a colour monitor 15, a network connector RJ45 10/100Mbit, a connectors for online connection, a barcode scanner, and a label printer.

Overview

brand: Elumatec
year: 2011
MODEL: SBZ 131
production hours: 1200
application type: Milling
Location: Italy
machine type: Universal Machining Centre

Technical Information - Elumatec SBZ 131

General Data

Measurements width: 6000 mm
Measurements depth: 2000 mm
Measurements height: 1500 mm
Machine weight: 4500 kg

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 5,5 kW

Movement

X-AXIS Movement: 4200 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 485 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 340 mm
Z-AXIS Rapid traverse: 30 m/min

Additional Information

Machine Benefits

Qualitative Machine Benefits

Designed for machining aluminium, steel and stainless steel profiles

Technical Machine Benefits

All processes such as milling, drilling and threading are performed with a fixed profile to protect its surface.
The competing turret offers very short tool change times, resulting in optimal machining cycles.
Eight turrets or angular milling heads can be mounted in the turret.
2 separate machining zones allow pendulum machining
The independent clamping system enables the material clamps to be positioned in additional times 4-axis electronic control system with industrial computer.
Colour monitor 15 network connector rj45 10/100mbit
Connectors for online connection
Barcode scanner
Label printer
Mobile operator terminal elucam

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
