FAMUP - MCL 120 EIT-MIL-FAM-2002-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Sheet Metal Machinery
- FAMUP MCL 120 E Vertical Machining Center

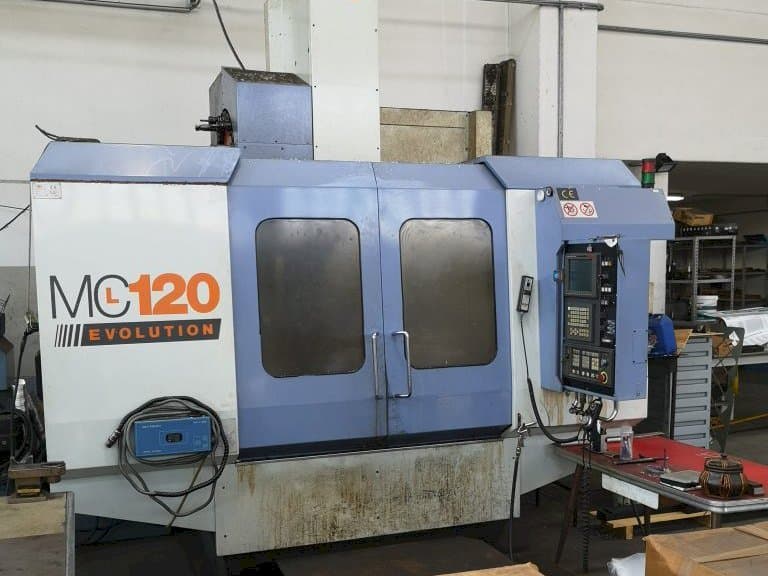

This FAMUP MCL 120 E Vertical Machining Center was manufactured in the year 2002. Operated through a FANUC 18i MA control unit. This machine can work with a spindle speed up to 10000 rpm.
Overview
- brand: FAMUP
- year: 2002
- MODEL: MCL 120 E
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - FAMUP MCL 120 E
General Data
- Measurements width: 4290 mm
- Measurements depth: 3810 mm
- Measurements height: 3300 mm
Control Unit
- Model: 18i MA
- Brand: FANUC
Main drive
- Spindle speed range: 50 - 10000 1/MIN
- Spindle motor power: 40 kW
Movement
- X-AXIS Movement: 1200 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 600 mm
Table
- Outer length: 1380 mm
- Outer width: 620 mm
Tools
- Number of stations: 24
- Max weight: 6 kg
- Max tool diameter: 75 mm
- Max tool length: 280 mm
- Type of tool holder: ISO 40
Additional Information
- Technical Machine Benefits:
- - 4 * divider axis
- - Advancements 10000 mm/1 '
- - Rapid 30000 mm/1 '
- - Flow rate kg 800
- - Two-way tool selection
- - High pressure for refrigeration
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
