FANUC α-D14MiA

Photo Gallery

FANUC - α-D14MiACN-MIL-FAN-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

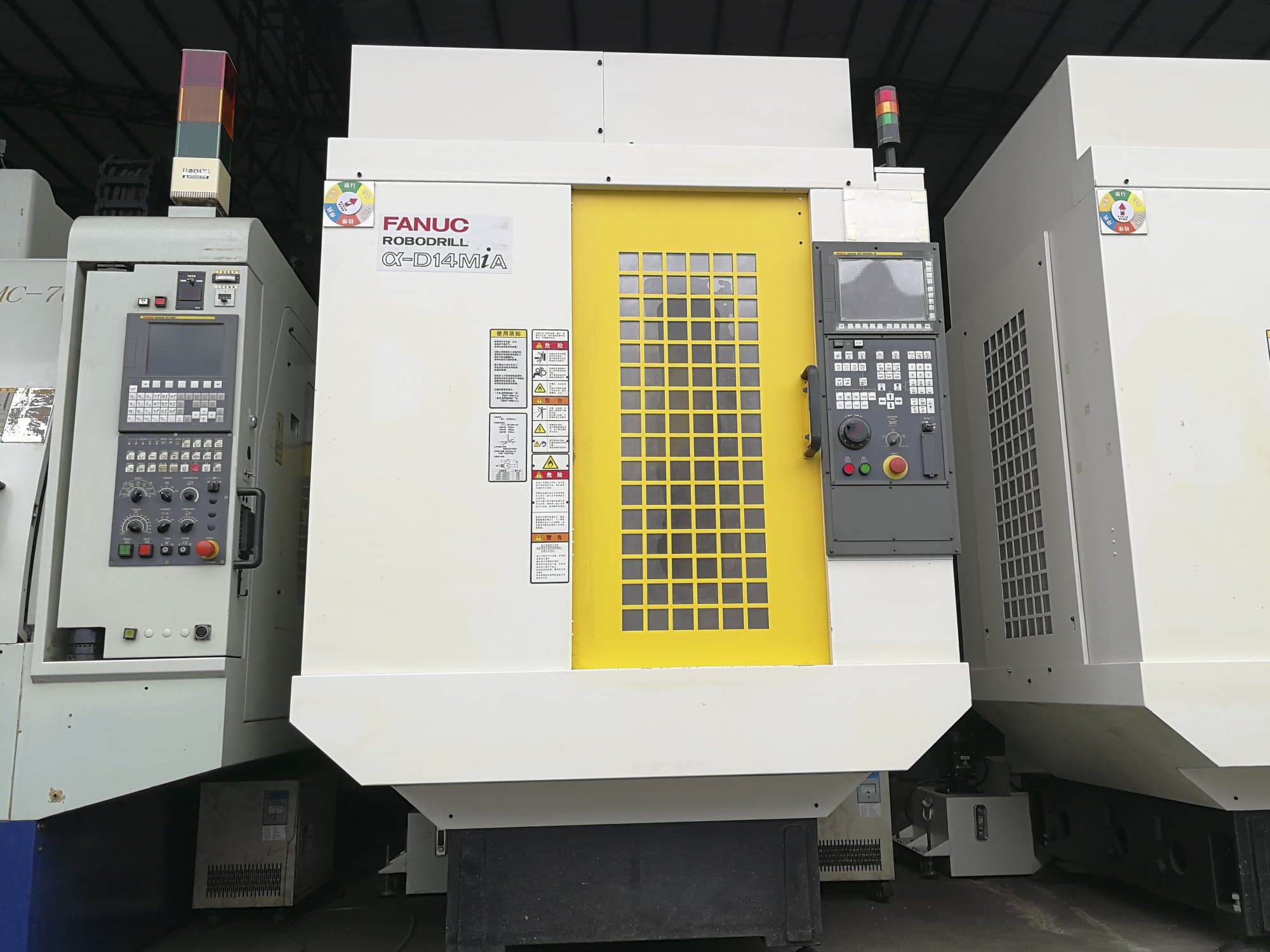

FANUC α-D14MiA Machining Center

This FANUC α-D14MiA Machining Center was manufactured in 2016 in Japan and has been active for approximately 2190 production hours ever since. Operated through a FANUC 31i-B Control unit, this compact model offers a stable operation and a high-efficiency production. Additionally, the condition of the machine is excellent.

Overview

brand: FANUC
year: 2016
MODEL: α-D14MiA
production hours: 2190
application type: Milling
Location: China
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC α-D14MiA

General Data

Measurements width: 1565 mm
Measurements depth: 2236 mm
Measurements height: 2040 mm
Machine weight: 2000 kg

Control Unit

Model: 31i-B
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 24000 1/min
Spindle motor power: 26 kW
Spindle bore: 0.006 - 0.02 mm

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Workpiece

Workpiece x: 650 mm
Workpiece y: 400 mm
Workpiece z: 150-480 mm
Workpiece weight: 300 kg

Table

Outer length: 1565 mm
Outer width: 2040 mm
Height adjustment: 2.236±10 mm
TSlots size: 14x125x3 mm
Number of tslots: 3
Distance between: 125 mm
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 480 mm

Tools

Slots in storage: 14
Max weight: 2 kg
Max tool diameter: 80 mm
Max tool length: 250 mm

Media

Power consumption: 10 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
