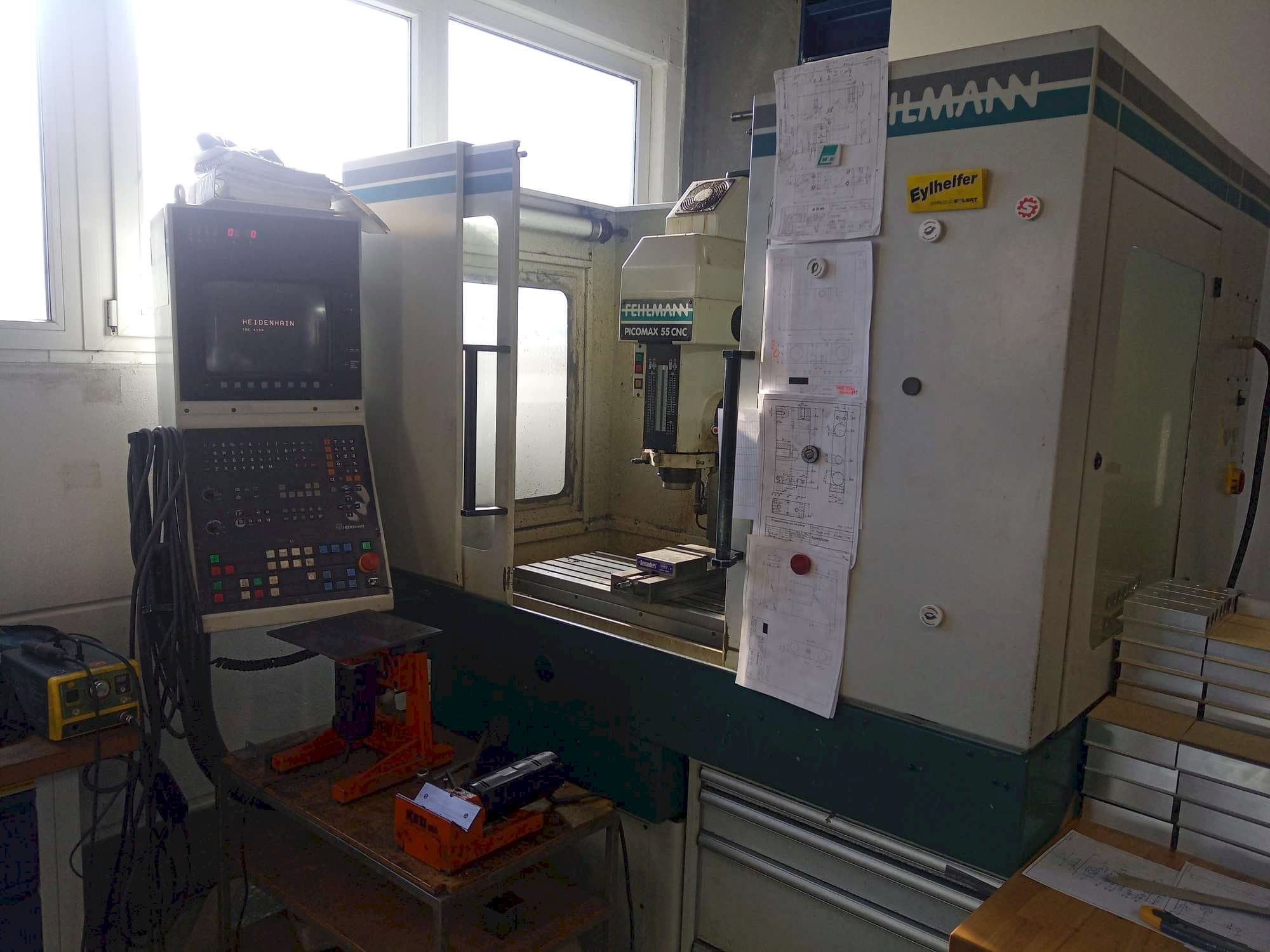

FEHLMANN - Picomax 55 CNCDE-MIL-FEH-1998-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Working elk
  • - X and y axis: 1-11000 mm/min
  • - Z axis 1-6000 mm/min
  • - W axis 1-3600 mm/min
  • - X and y axis 6500 n
  • - Z axis 8000 n
  • - Distance measuring system resolution
  • - Direct measuring system via linear scale - x / y / w axis
  • - Indirect measuring system via rotary encoder - z axis
  • - Resolution in x, y, z and w axes - 0. 001 mm
• Qualitative Machine Benefits:
  • - Accuracy (according to vdi / dgq 3441)
  • - Position tolerance p axis(s)
  • - X/y 0. 005mm
  • - Z/w 0. 010mm
  • - Quick tool change system - sf 32
  • - Repeatability 0. 002 mm
  • - Tool change hydraulically - via push buttons
  • - Changing time (manual) sec approx. 3
  • - Max. Torque 70 nm
  • - This is a 3-axis milling machine with x-y-z - which is controlled with an additional quill w
