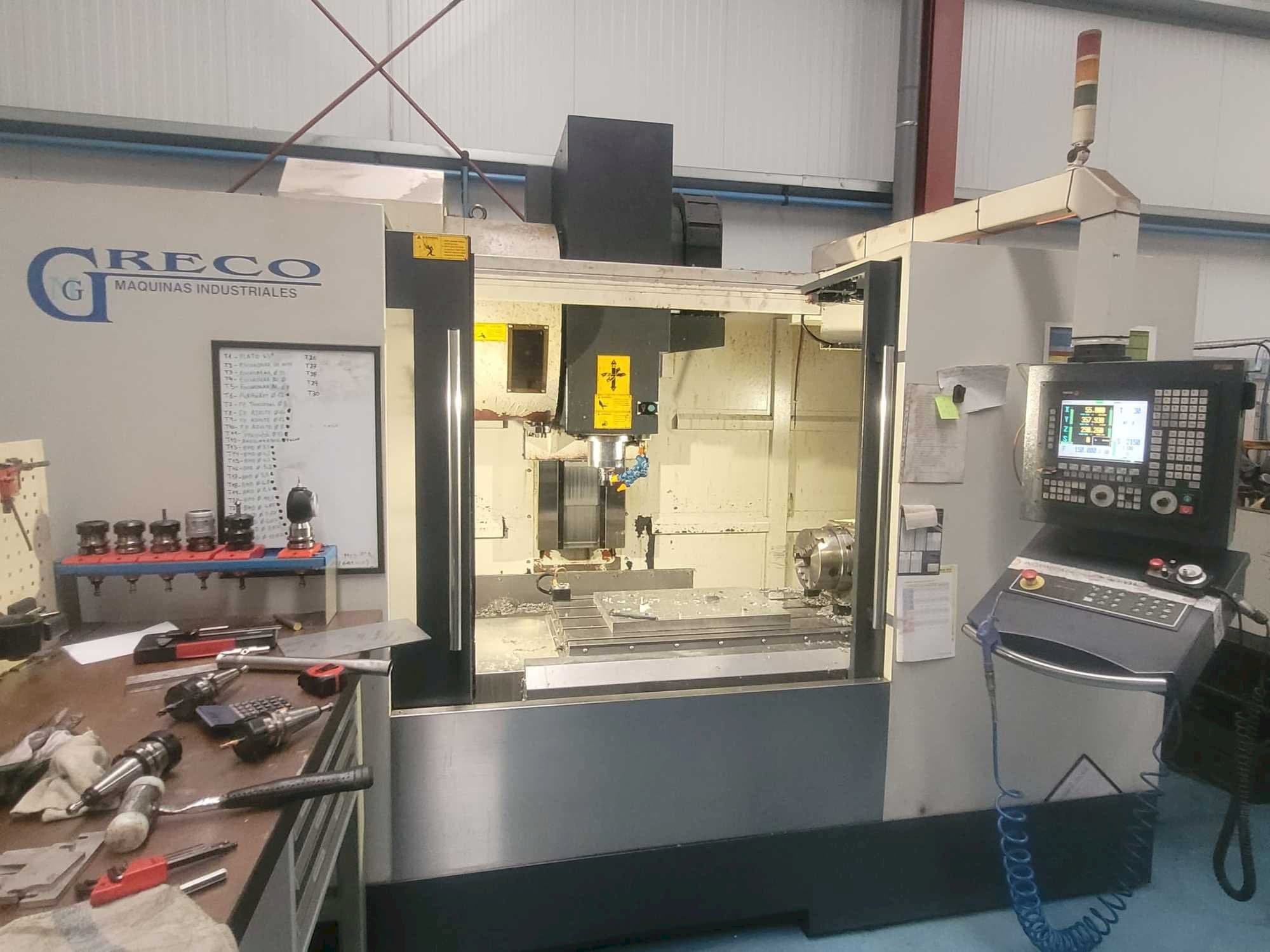

Front view of Finitech SMV-1270-3B machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Finetech SMV-1270-3B

Photo Gallery

Finetech - SMV-1270-3BES-MIL-FIN-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Finetech SMV-1270-3B Vertical Machining Center

This Finetech SMV-1270-3B Vertical Machining Center was made in the year 2013 in Taiwan and has few working hours. It is equipped with a Fargo 8055 control unit and has 4 axis. The machine has a spindle speed of 12000 rpm and is in good condition.

Overview

brand: Finetech
year: 2013
MODEL: SMV-1270-3B
production hours: 0
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FAGOR

Technical Information - Finetech SMV-1270-3B

General Data

Measurements width: 3000 mm
Measurements depth: 2200 mm
Measurements height: 2500 mm

Control Unit

Model: 8055
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 650 mm

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 1300 mm
Outer width: 600 mm

Tools

Slots in storage: 30
Max weight: 10 kg
Max tool diameter: 100 mm
Max tool length: 300 mm
Type of tool holder: BT-40

Additional Information

Machine Benefits

Qualitative Machine Benefits

Little working hours
Good condition

Technical Machine Benefits

Rigid threading
Air through head & external cooling jet with nozzles
Automatic lubrication system
Head oil cooling system
Water gun
Rs 232 output

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
