HAAS UMC-750

Photo Gallery

HAAS - UMC-750PL-MIL-HAA-2014-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

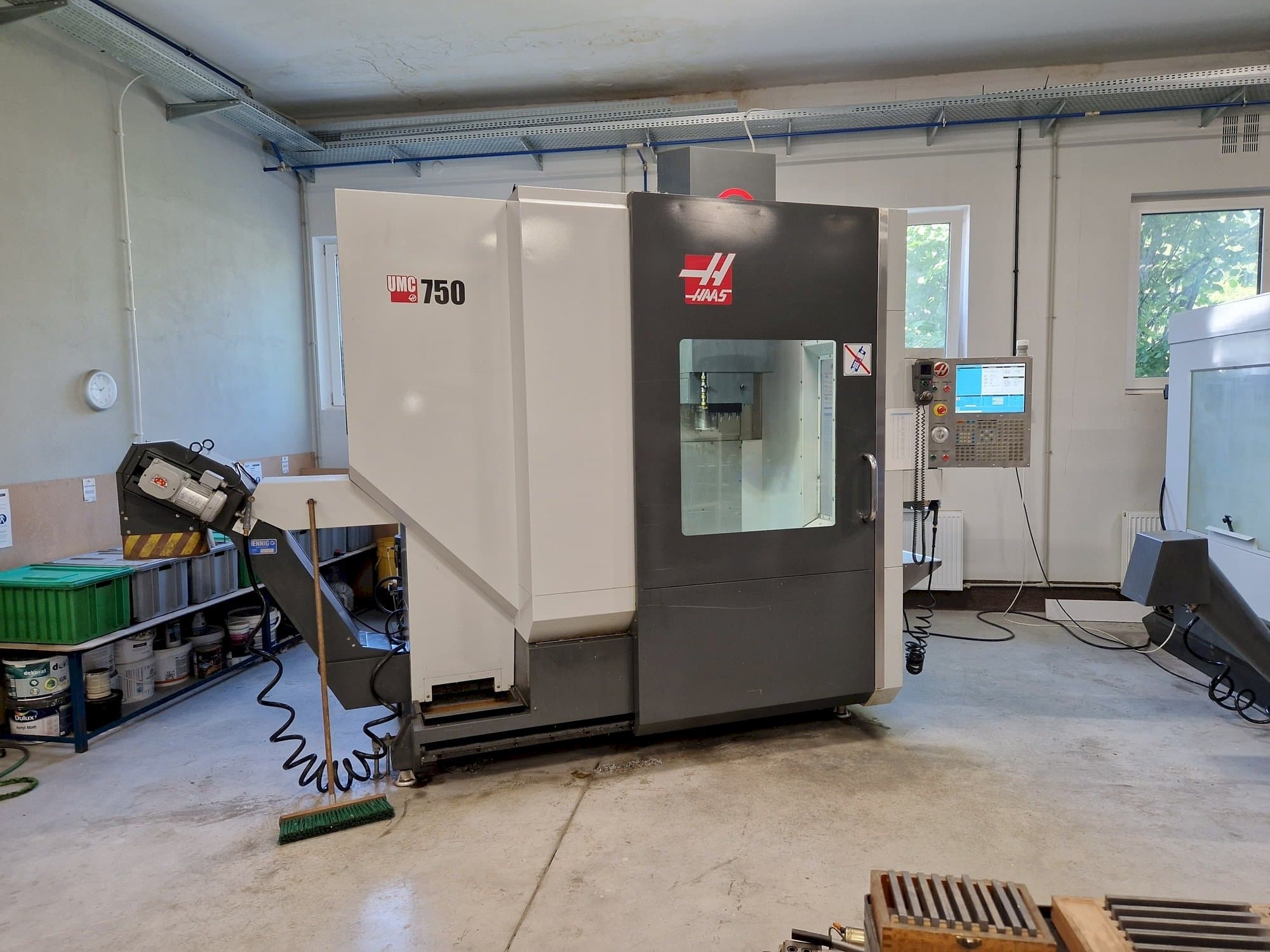

HAAS UMC-750 Vertical Machining center

This HAAS UMC-750 Vertical Machining center was manufactured in the year 2014 in the United States and has 22471 production hours. It is equipped with a HAAS control unit and has 5 axis. The machines has a spindle speed of 12000 rpm, is in very good condition and well maintained.

Overview

brand: HAAS
year: 2014
MODEL: UMC-750
production hours: 22471
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC-750

General Data

Measurements width: 3048 mm
Measurements depth: 1445 mm
Measurements height: 2870 mm
Machine weight: 8165 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22,4 kW
Number of axis: 5

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm
B-AXIS Movement: +110 deg to -35 deg MM
C-AXIS Movement: 360 deg MM

Table

Outer length: 630 mm
Outer width: 500 mm
Table load: 300 kg

Tools

Slots in storage: 41
Max weight: 5.4 kg
Max tool diameter: 76 mm
Max tool length: 406 mm
Type of tool holder: BT40

Media

Main electronic connection: 360-480V / 50/60Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drive system: inline direct-drive
- - Tool changer type: smtc
- - Time of changing tools: 2. 8 sec
Qualitative Machine Benefits:
- - Spindle cooling, higher power pump 21 bar, 22 l/min
- - Additional filter system, 25 μm filter, required for machining cast iron, aluminum, wood, phenolic resin-based plastics, and other dusty materials.
- - Belt chip ejector
- - Network card
- - Early power failure detection module
- - Internal memory expansion up to 750mb
- - Faster processor with look-ahead function, accelerating shape processing with 3-axis interpolation.
- - Torque 122 nm for 2000 rpm, direct drive.
- - Machine in very good working condition, ready for tests. Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
