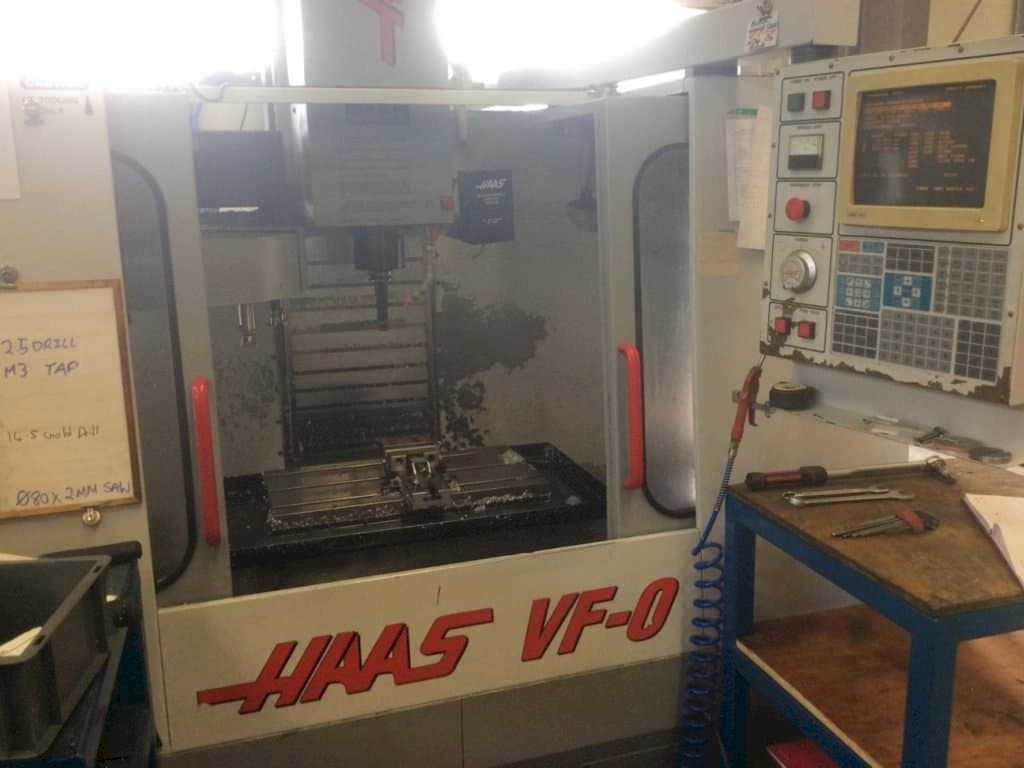

HAAS VF-0 Vertical machining center

This HAAS VF-0 Vertical machining center was made in the United States in 1995. It is equipped with a control unit of the same brand. This 3 axis machine operates with a spindle speed up to 7500 rpm. Includes HAAS 4th axis and a programmable coolant nozzle. Vise not included with the machine. It is in good condition.

Overview

brand: HAAS
year: 1995
MODEL: VF-0
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-0

General Data

Measurements width: 2280 mm
Measurements depth: 2235 mm
Measurements height: 2280 mm
Machine weight: 3300 KG

Control Unit

CNC main language: English
CNC language customizable: Yes
Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 7500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 508 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 1362 KG

Table

Outer length: 660 mm
Outer width: 356 mm

Tools

Slots in storage: 20
Max weight: 5.4 KG
Max tool diameter: 91 mm
Max tool length: 330 mm
Type of tool holder: BT40

Media

Main electronic connection: 3 x 480V / 60Hz
Chip conveyor: Yes

Additional Information

Additional equipment

HAAS 4th Axis & Tailstock
HAAS Programmable Coolant Nozzle
Screw Type Swarf Conveyor
5 x Tool Holders

Machine Benefits

Qualitative Machine Benefits

Machine in good condition
Vise not included with the machine

Machine History

Industries

Pump industry

End product

Pump parts

Material type

Mild steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
