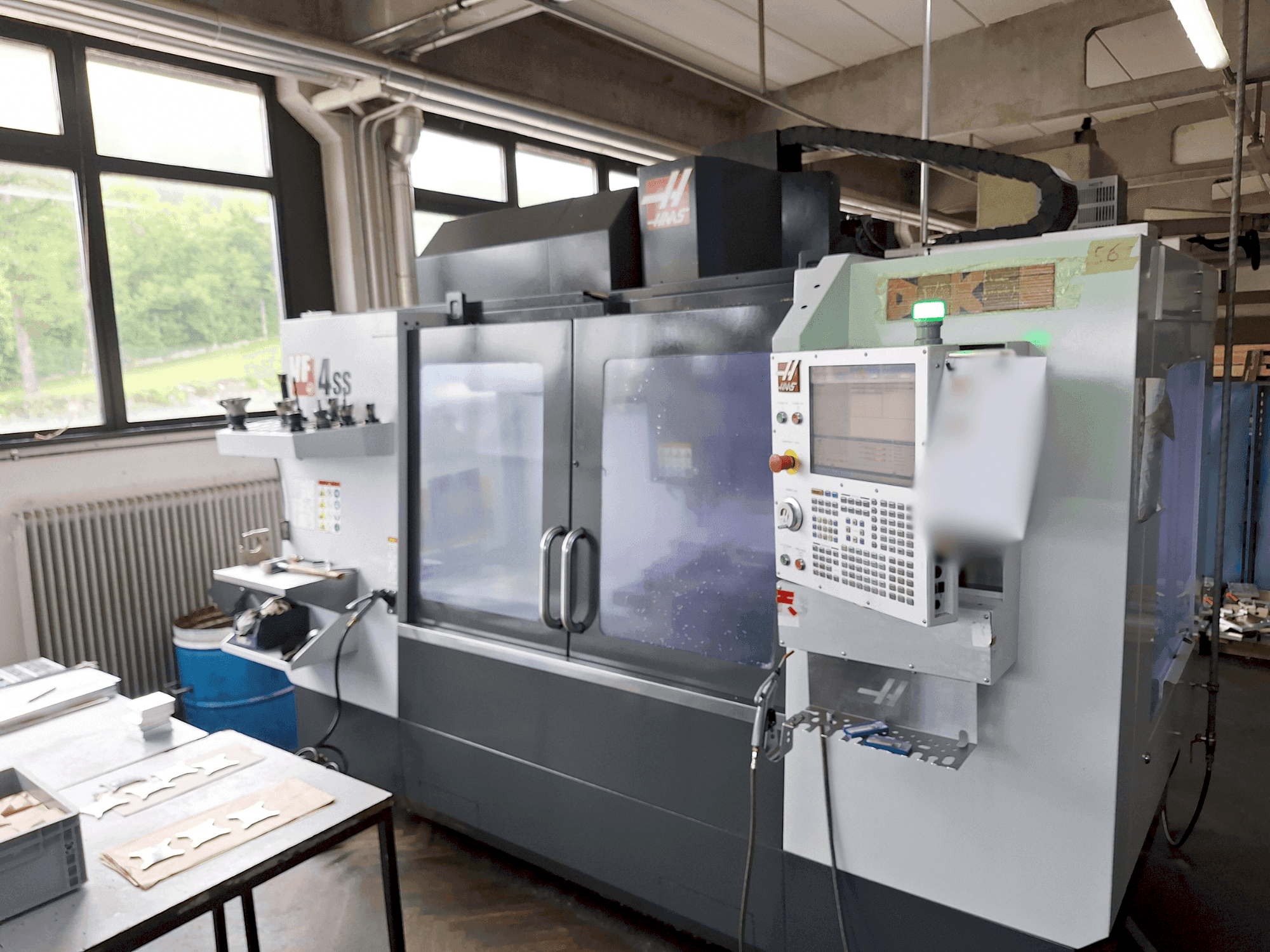

HAAS VF-4SS

Photo Gallery

HAAS - VF-4SSSI-MIL-HAA-2019-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF-4SS Vertical Center For sale | gindumac.com

This 3-axis HAAS VF-4SS Machining Center was manufactured in 2019. It features a robust 1270 mm X-axis, 508 mm Y-axis, and 635 mm Z-axis travel, complemented by a high-speed spindle capable of 12000 rpm and 22.4 kW power. The machine supports a table load of 794 kg and includes a 30+1 tool changer for efficient operations. Ideal for precision machining, the HAAS VF-4SS machine we have for sale offers significant capabilities. Contact us for further details regarding this Machining Center.

Overview

brand: HAAS
year: 2019
MODEL: VF-4SS
production hours: 0
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre

Technical Information - HAAS VF-4SS

General Data

Machine weight: 6260 KG

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kw
Tool taper: CT40, BT40, HSK-A63
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
X-AXIS Feed Force: 13723
X-AXIS Rapid traverse: 35.6 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Feed Force: 13723 n
Y-AXIS Rapid traverse: 35.6 m/min
Z-AXIS Movement: 635 mm
Z-AXIS Feed Force: 17459 n
Z-AXIS Rapid traverse: 35.6 m/min

Table

Outer length: 1321 mm
Outer width: 495 mm
TSlots size: Width: 15.90 mm to 16.00 mm. Center distance: 80 mm
Min distance between vertical spindle and table: 107 mm
Max distance between vertical spindle and table: 742 mm
Table load: 794 kg

Tools

Slots in storage: 30 + 1
Max weight: 5.4 kg
Max tool diameter: 127 mm
Max tool length: 330 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum torque: 122. 0 nm at 2000 rpm
- - Drive system inline direct-drive
- - Bearing lubrication air / oil injection
- - Coolant capacity: 208 l
- - Tool-to-tool (avg): 1. 80 s
- - Chip-to-chip (avg): 2. 40 s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
