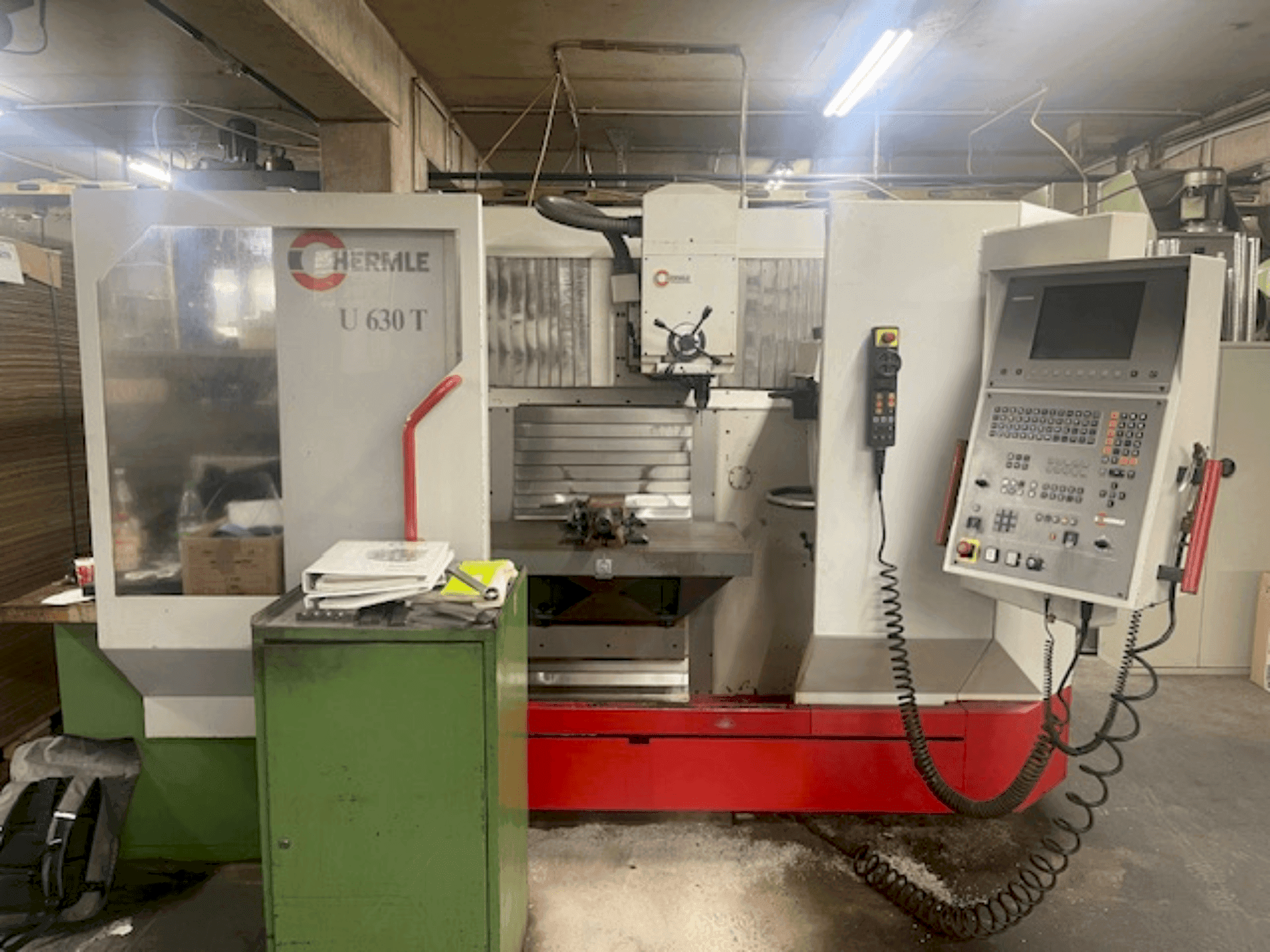

HERMLE U 630 T

Photo Gallery

HERMLE - U 630 TDE-MIL-HER-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used HERMLE U 630 T – 1997 - Vertical Machining Centre For sale | gindumac.com

This 3-Axis HERMLE U 630 T – TNC 410 milling machine was manufactured in 1997. It features advanced Heidenhain TNC 410 control, supporting a wide travel distance of 875mm on the x-axis, and 500mm each on y and z-axes. The machine offers a variable speed range of 20-7000 min-1 and a rapid traverse speed of 15m/min. Its 90° swiveling vertical milling head and 16 magazine positions enhance its functionality. For more information about this milling machine, please reach out to us.

Overview

brand: HERMLE
year: 1997
MODEL: U 630 T
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE U 630 T

General Data

Machine weight: 4250 KG

Control Unit

Model: TNC 410
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20-7000 1/MIN
Tool taper: SK 40

Movement

X-AXIS Movement: 875 mm (extended by 245 mm to the right)
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Table

Table load: Maximum 400kg

Tools

Max weight: 6 kg
Max tool diameter: 80 mm
Max tool length: 250 mm

Additional Equipment

- 90° swiveling vertical milling head
- 75mm extendable quill
- 16 magazine positions
- Coolant device with tank capacity 120 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed force: 8000 n
- - Torque: 390 nm
- - Rapid traverse speed: 15m/min
- - Clamping surface: 900 x 528 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
