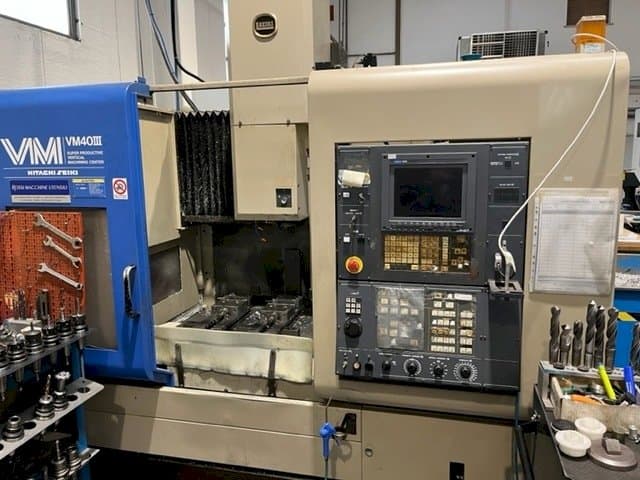

Front view of HITACHI SEIKI VM40 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HITACHI SEIKI VM40

Photo Gallery

HITACHI SEIKI - VM40IT-MIL-HIT-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HITACHI SEIKI VM40 Milling machine

This HITACHI SEIKI VM40 Milling machine was manufactured in the year 1997. The machine has a spindle speed of 120-12000 rpm.

Overview

brand: HITACHI SEIKI
year: 1997
MODEL: VM40
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold

Technical Information - HITACHI SEIKI VM40

General Data

Measurements width: 2100 mm
Measurements depth: 2260 mm
Measurements height: 2570 mm
Machine weight: 5100 kg

Main drive

Spindle speed range: 120-12000 1/MIN

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 450 mm

Table

Outer length: 760 mm
Outer width: 400 mm
TSlots size: 2
Min distance between vertical spindle and table: 80 - 530 mm
Table load: 250 kg

Tools

Slots in storage: 20
Max weight: 10 kg
Max tool diameter: 95 mm
Max tool length: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool shank: jis 40. T
- - Direct tapping function
- - Wide range motor 1:16
- - Atc, 20 tool
- - Spiral chip conveyor 2 pcs.
- - Coolant tank
- - Flood coolant
- - Splash cover
- - Operator side door interlock
- - Atc door interlock
Qualitative Machine Benefits:
- - Manual pulse generator
- - Sp. Speed load meter (on screen)
- - Spindle / feedrate override
- - Call light
- - Electric leakage detection breaker
- - Automatic power cut-off device
- - W-setter/easy setter
- - Automatic override memory for spindle and feed
- - Leveling pads
- - Work light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
