➤ Used Hurco VMX30Ui + BMO Automation Titanium 50 For Sale

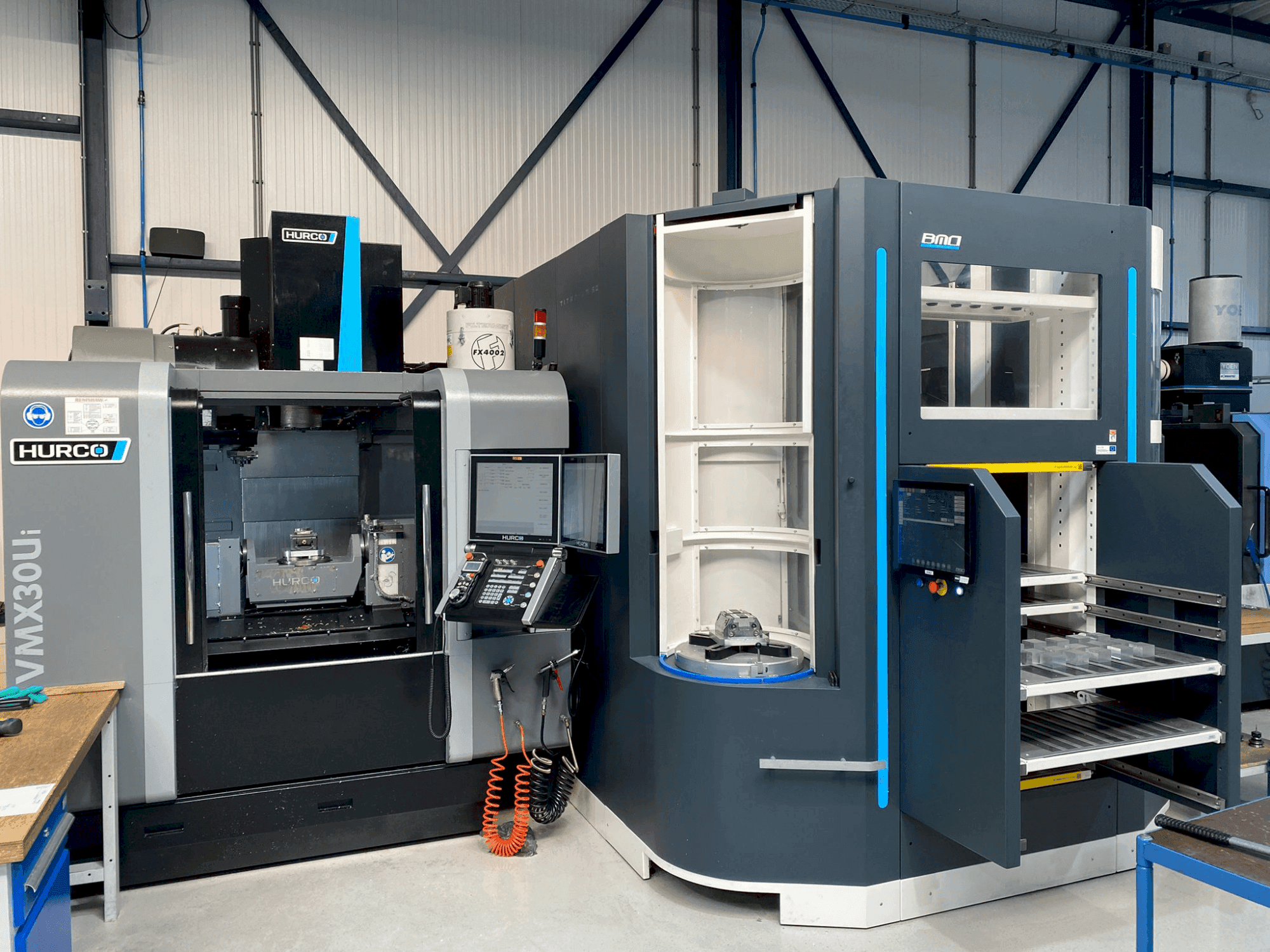

This 5-axis Hurco VMX30Ui + BMO Automation Titanium 50 was manufactured in 2017. Ideal for complex, multi-angle machining with its advanced vertical machining centre design. If you are looking to get high-quality milling capabilities, consider the Hurco VMX30Ui machine we have for sale. Contact us for more information.

Overview

brand: Hurco
year: 2017
MODEL: VMX30Ui + BMO Automation Titanium 50
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
control unit brand: HURCO

Technical Information - Hurco VMX30Ui + BMO Automation Titanium 50

General Data

Measurements width: 2440 mm
Measurements depth: 2180 mm
Measurements height: 2900 mm
Machine weight: 5540 kg

Control Unit

Brand: HURCO
Model: MAX5

Main drive

Spindle speed range: 12000 RPM 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 760 mm
X-AXIS Rapid traverse: 35 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Rapid traverse: 35 m/min
Z-AXIS Movement: 520 mm
Z-AXIS Rapid traverse: 30 m/min
A-AXIS Movement: +30°/-110°, +/- 7 sec MM
A-AXIS Rapid traverse: 25 RPM
C-AXIS Movement: 360°, +/- 7 sec MM
C-AXIS Rapid traverse: 25 RPM

Workpiece

Workpiece weight: 140 kg

Table

Number of tslots: 6
Table load: 200 kg

Tools

Number of index: 40
Max weight: 7 kg
Max tool length: 300 mm

Media

Main electronic connection: 31 kVA / 45 A / 400V

Additional Equipment

- Central lubrication system: 1 pump (X,Y,Z)
- Taper DIN69871 SK-40
- Material of machine bed: Cast-iron

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque at 1 min rating: 119 nm
- - Positioning x, y, z per axis: 0. 01 mm
- - Bmo titanium 50 robot cell dimensions: 2. 5x3. 2 meters, floor area 8 m²
- - Combination of pallet and product handling possible
- - 96 pallet positions 300x150
- - Maximum 7 product drawers for product loading
- - Flexible system due to universal robot and software
- - Very short changeover times of the workpiece
- - Product weight up to 50 kg
- - Max torque: 600rpm

Extra information

- Workpiece Spindle nose to table: 90 - 610 mm Table Table working surface: ∅ 248mm Width of T slots: 12 mm Spacing of T slots: 60° Tools ATC type: Chain magazine Tool ∅, consecutive tools: 76 mm Tool ∅, adjac. sides empty: 150 mm Media Air supply: 7 bar/0.15 cbm/min Content coolant tank: 230 ltr. Power (30 min rating): 13,4 kW (was Power (1 min rating): 35 kW)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
