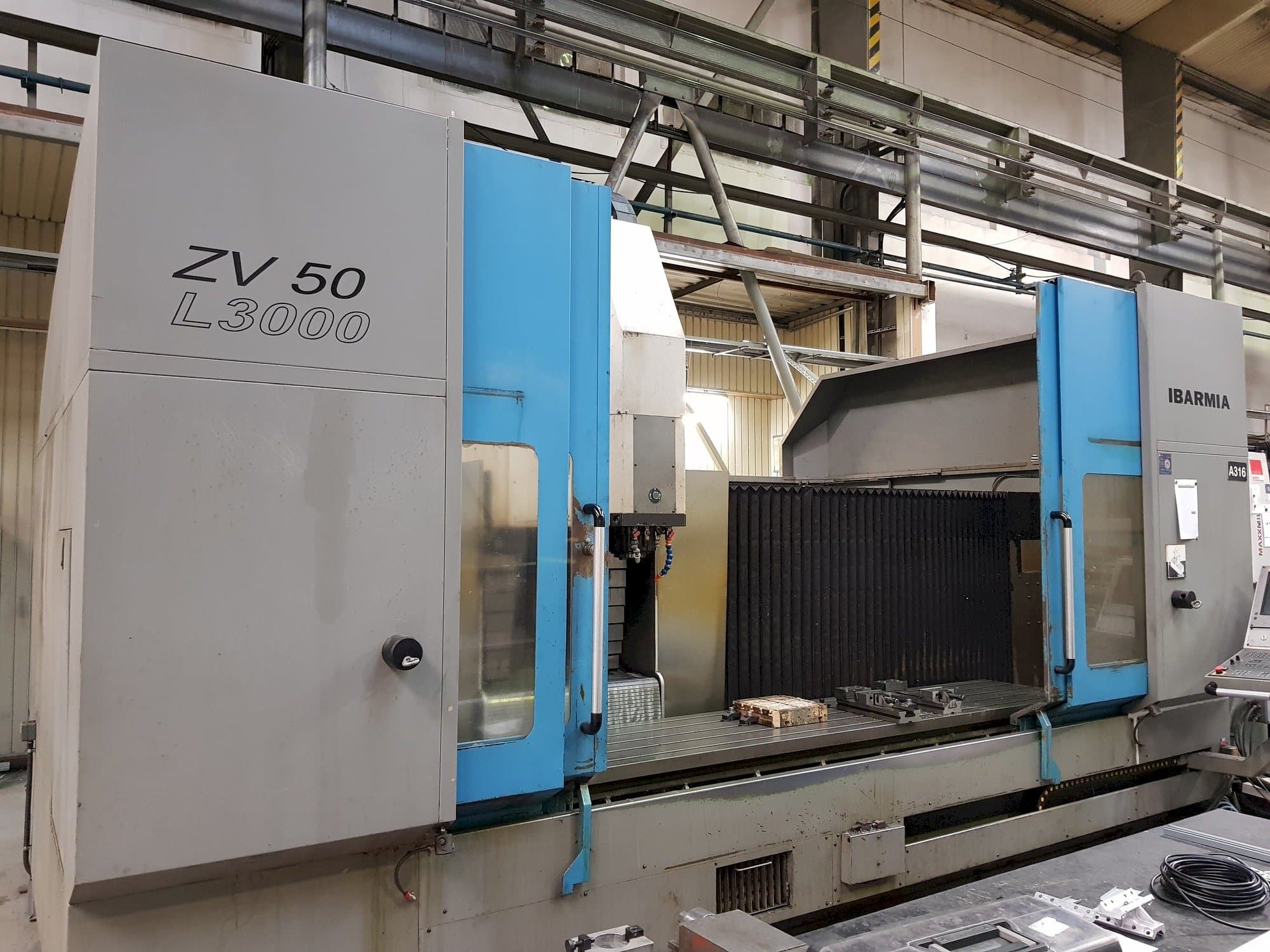

Front view of IBARMIA ZV 50/3000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

IBARMIA ZV 50/3000

Photo Gallery

IBARMIA - ZV 50/3000CZ-MIL-IBA-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
IBARMIA ZV 50/3000 Vertical Machining Center

This IBARMIA ZV 50/3000 Vertical Machining Center was manufactured in the year 1999 in Spain. This 3 axis machine can work with a spindle speed range up to 6000 rpm and have 50325 / 21308 of working hours. It counts with a Heidenhain TNC 426 control unit and a is in very good condition.

Overview

brand: IBARMIA
year: 1999
MODEL: ZV 50/3000
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - IBARMIA ZV 50/3000

General Data

Measurements width: 7120 mm
Measurements depth: 3500 mm
Measurements height: 3200 mm

Control Unit

Model: TNC 426
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece weight: 2800 kg

Table

Outer length: 3600 mm
Outer width: 650 mm
Number of tslots: 5
Distance between: 125 mm

Tools

Slots in storage: 30
Type of tool holder: SK-50

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

Pendular machining (optional) with x=1060 mm each side
Distance between table surface and spindle nose (min. /max. ): 200 mm / 1000 mm
Main motor power 31 kw
2x side doors

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
