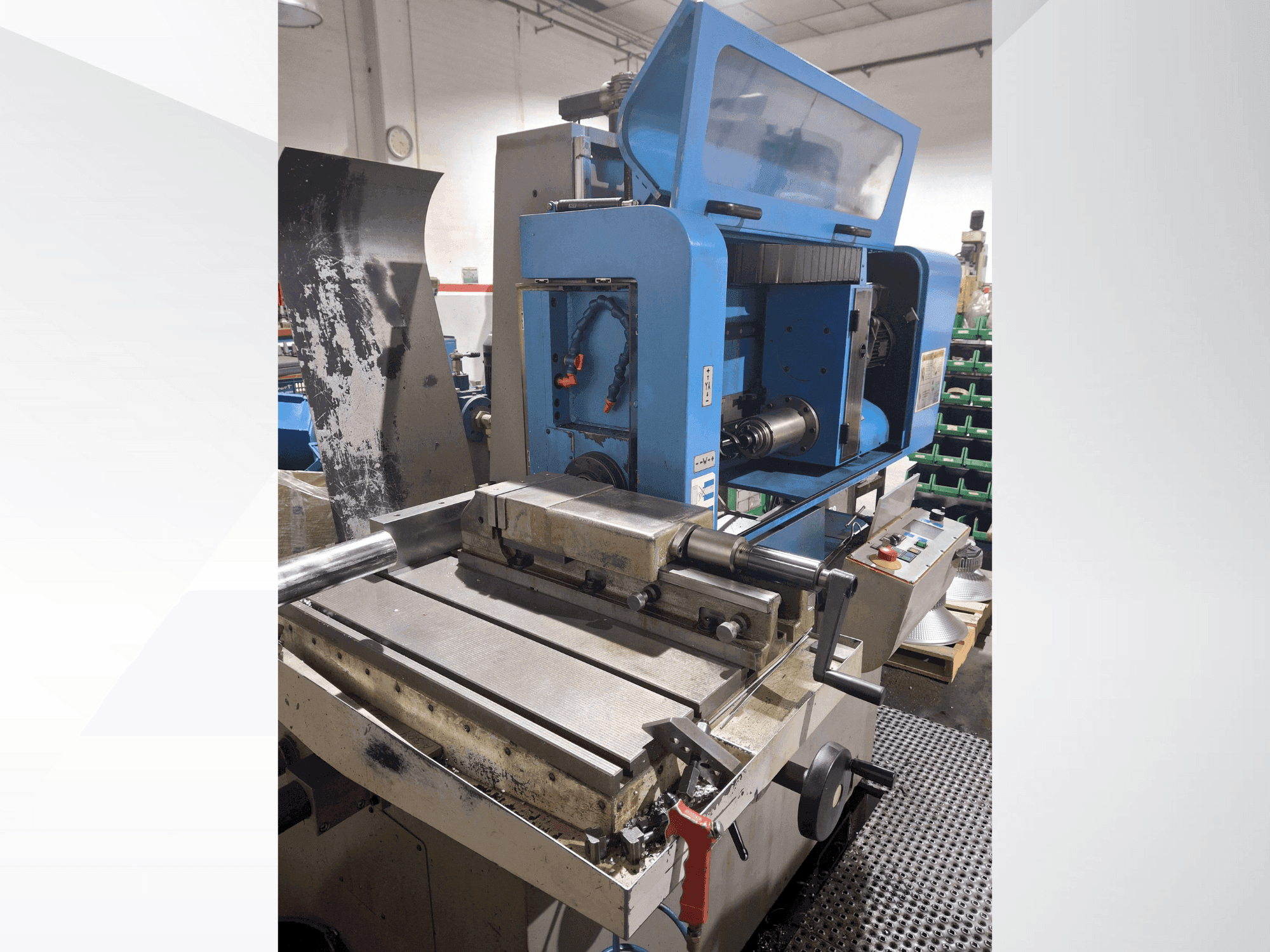

IXION TL 1.1

Photo Gallery

IXION - TL 1.1ES-OTH-IXI-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used IXION TL 1.1 - Drill For Sale | gindumac.com

This 3-axis IXION TL 1.1 drilling machine was manufactured in 2002. It offers robust and reliable performance for various drilling applications. If you are looking to get high-quality drilling capabilities, consider the IXION TL 1.1 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: IXION
year: 2002
MODEL: TL 1.1
application type: Other Machine Tools
Location: Spain
machine type: Drilling Machine (Metal)

Technical Information - IXION TL 1.1

General Data

Measurements width: 2800 MM
Measurements depth: 2000 MM
Measurements height: 1900 MM
Machine weight: 4000 KG

Main drive

Spindle speed range: 300–6000 / 100–1600 1/MIN

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 900 mm
Outer width: 500 mm
Table load: 2000

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tower travel: 250 mm
- - T-slots: 4 longitudinal t-slots, 14 h12 mm
- - Slot spacing: 150 mm
- - For drilling with single-lip drill bits from Ø 3 to 25 mm
- - Tank capacity: 600 liters
- - Pressure: max. 90 bar
- - Flow rate: max. 40 l/min
- - Ac spindle drive power: 4. 0 kw (at 100% duty cycle, s1)
- - Voltage: 400 v / 3 ph / 50 hz (3-phase, 5-wire system)
- - Network: tn-s or tn-c, compliant with vde 0100 part 300
Qualitative Machine Benefits:
- - Connected power: approx. 10 kva
- - Idle noise level at 80% of maximum spindle speed: 70 db(a)
- - Measured according to: din en iso 11200 / 11202, din en 12417, din en 13128

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
